COMP Cams 7230TS1-KIT - Conical Valve Spring Kit - GM LS1/LS2/LS3 w/ Tool Steel Retainers
Valve Spring Kit - Conical Spring - 519 lb/in Spring Rate - 1.175 in Coil Bind - 1.332 in OD - Steel Retainer - GM LS-Series - Kit
The .675" Lift Conical Spring Kit with Tool Steel Retainers for GM LS1/LS3 allows users to easily install revolutionary Conical Valve Springs on any high performance GM LS1/LS3 engine.
The springs conical design features a smaller diameter in the upper half to reduce active mass. This reduction in mass, along with the progressive frequency created by the conical shape, dampens coil oscillations better than any other spring design. These improvements allow for the use of more aggressive Camshafts and an increase in RPM limit speed. Finally, Superfinish processing of the springs results in increased durability and spring life.

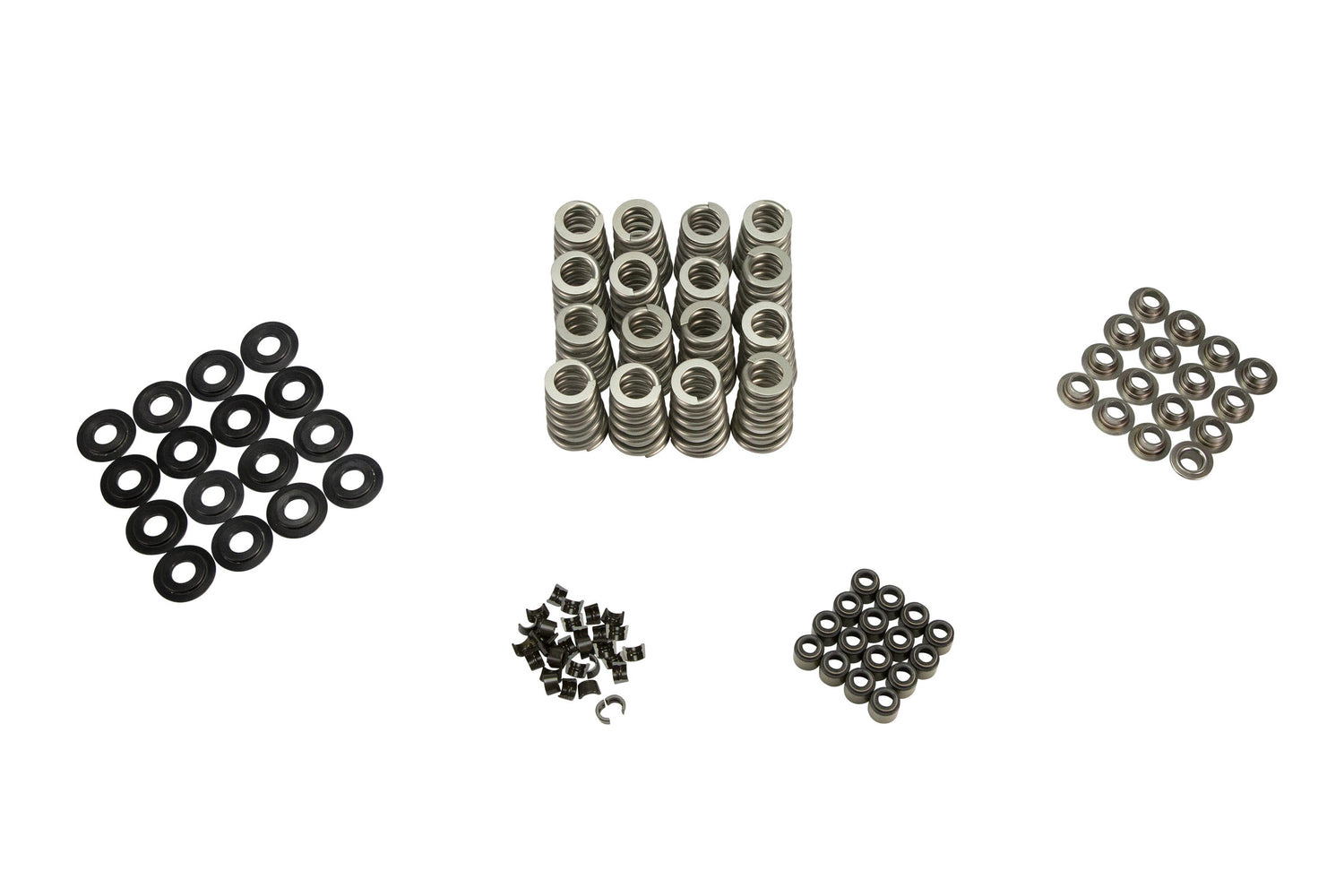

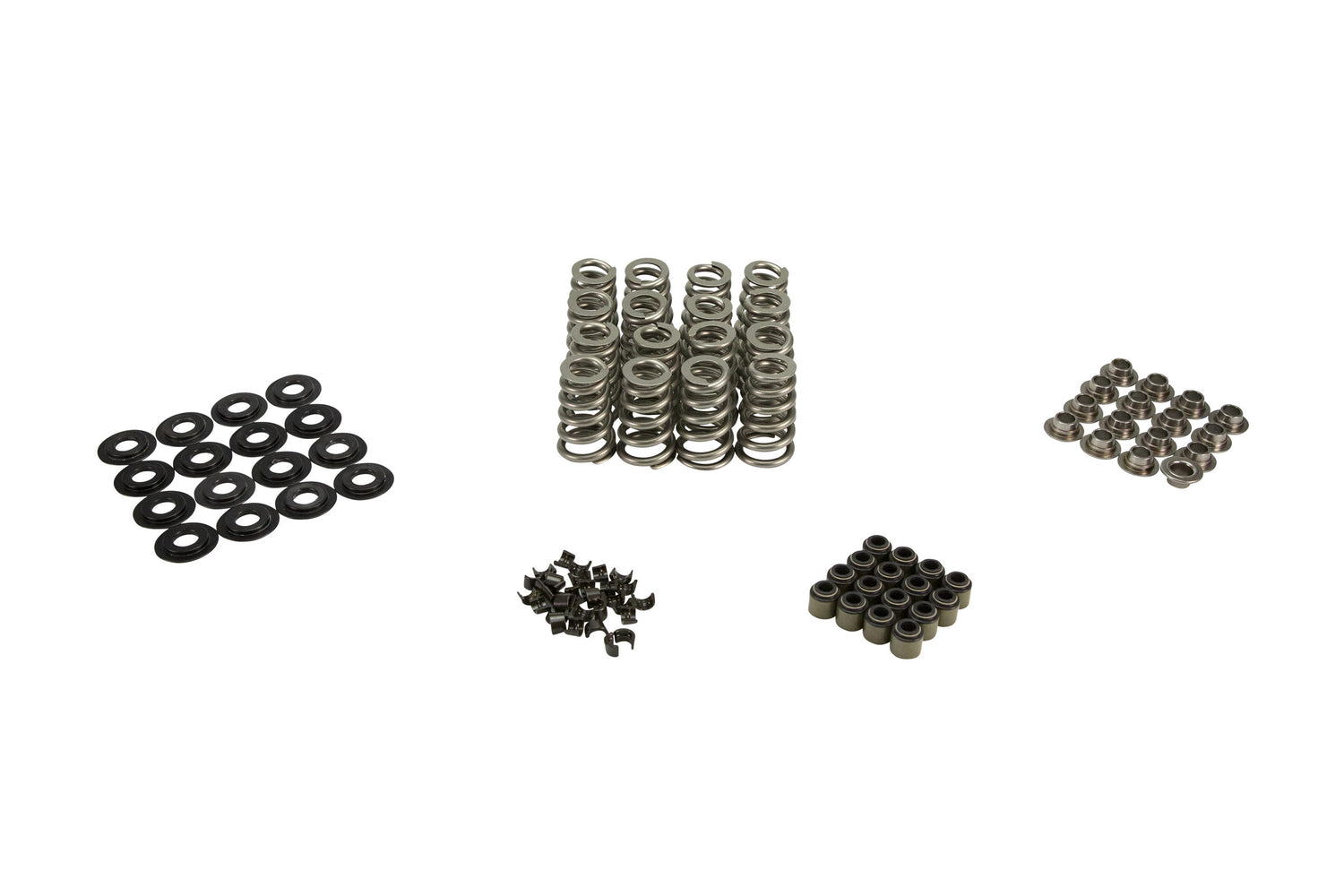

Kit includes:
- #7230-16 Conical Valve Springs
- #1774-16 +.100 Tool Steel Retainers
- #623-16 Valve Locks
- #511-16 Valve Seals
- #4680-16 Spring Seats
