COMP Cams 7230TC-KIT - Conical Valve Spring Kit - 09+ Dodge Hellcat 6.2L w/ Tool Titanium Retainers

COMP Cams  |  SKU: COMP-7230TC-KIT
$85595 $94154

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

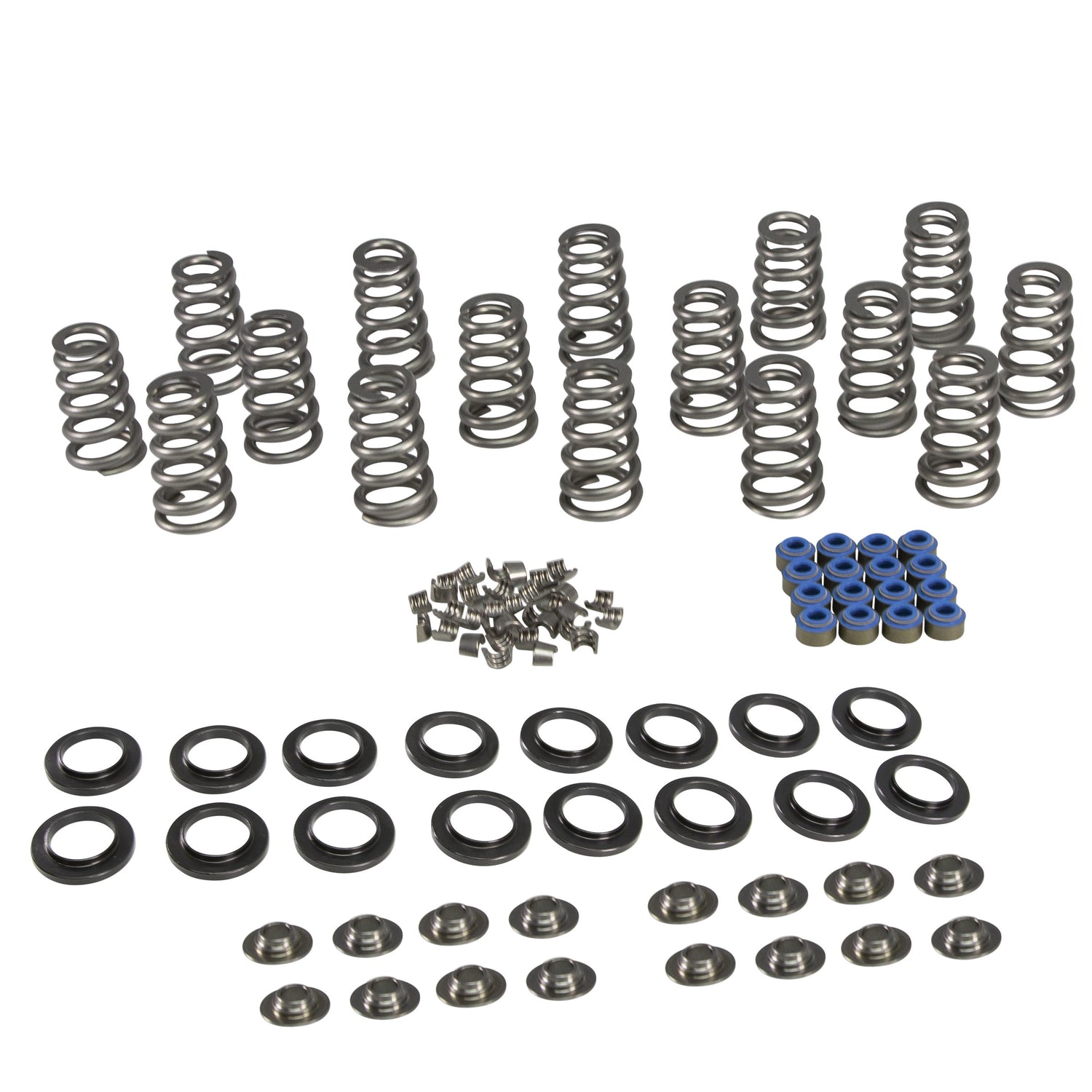

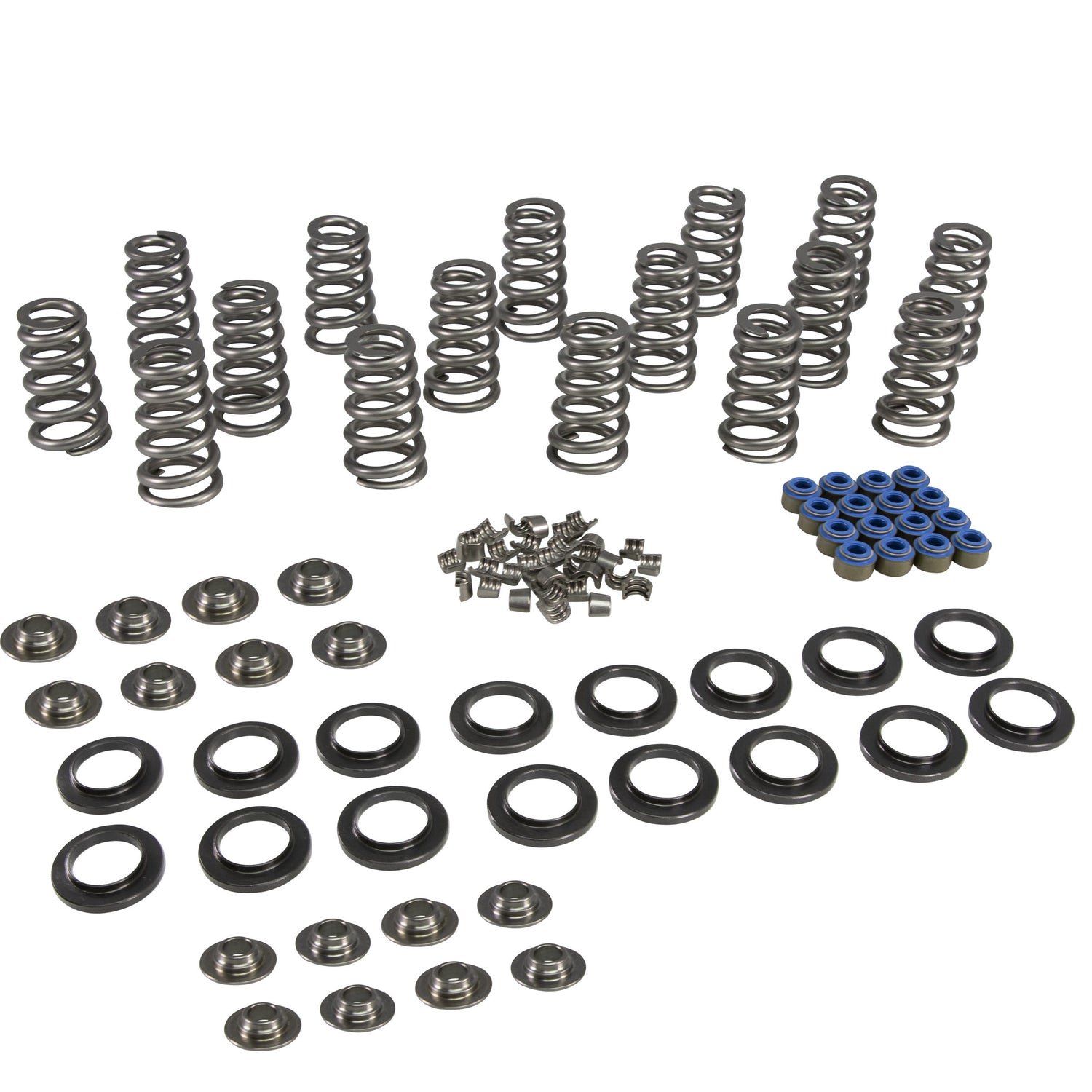

COMP Cams 7230TC-KIT - Conical Valve Spring Kit - 09+ Dodge Hellcat 6.2L w/ Tool Titanium Retainers

Valve Spring Kit - Conical - Single Spring - 519 lb/in Spring Rate - 1.175 in Coil Bind - 1.060 in / 1.332 in OD - Titanium Retainer / Steel Valve Lock / Rubber Seal / Seats - Mopar Gen III Hemi - Kit

Designed for '09-'18 Dodge 5.7L HEMI, this Conical Spring Kit includes titanium retainers, valve locks, seals and seats that require no machine work. Capable of 0.660" valve lift, this kit removes the guesswork for your HEMI engine.

The COMP Cams .660" Lift Conical Valve Spring Kits for Dodge Gen IV HEMIs features:

  • Max Lift: .660"
  • Increased High RPM Stability
  • Excellent spring upgrade for high performance and Race Applications
  • Includes valve springs, locks, Seals, seats, and Titanium retainers
Includes Shims?: No
Free Length: 2.179
Spring Style: CONICAL
Valve Spring Series: CONICAL
Damper: NA
Retainer Material: Titanium
Includes Retainers?: Yes
Spring Seat Type: Chromemoly Steel
Included Seats: 4678
Includes Seats?: Yes
Spring Rate: 519
Open Load: 484
Seat Pressure: 145
Installed Height: 1.900
Coil Bind Height: 1.175
ID Small End: 0.660
ID Big End: 0.932
OD Small End: 1.0600
OD Big End: 1.332
Number of Springs: 16
Max Lift: 0.660
