COMP Cams 7230GCS-KIT - Conical Valve Spring Kit 2020+ Ford 7.3L Godzilla Engine

COMP Cams  |  SKU: COMP-7230GCS-KIT
$60495 $66544
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

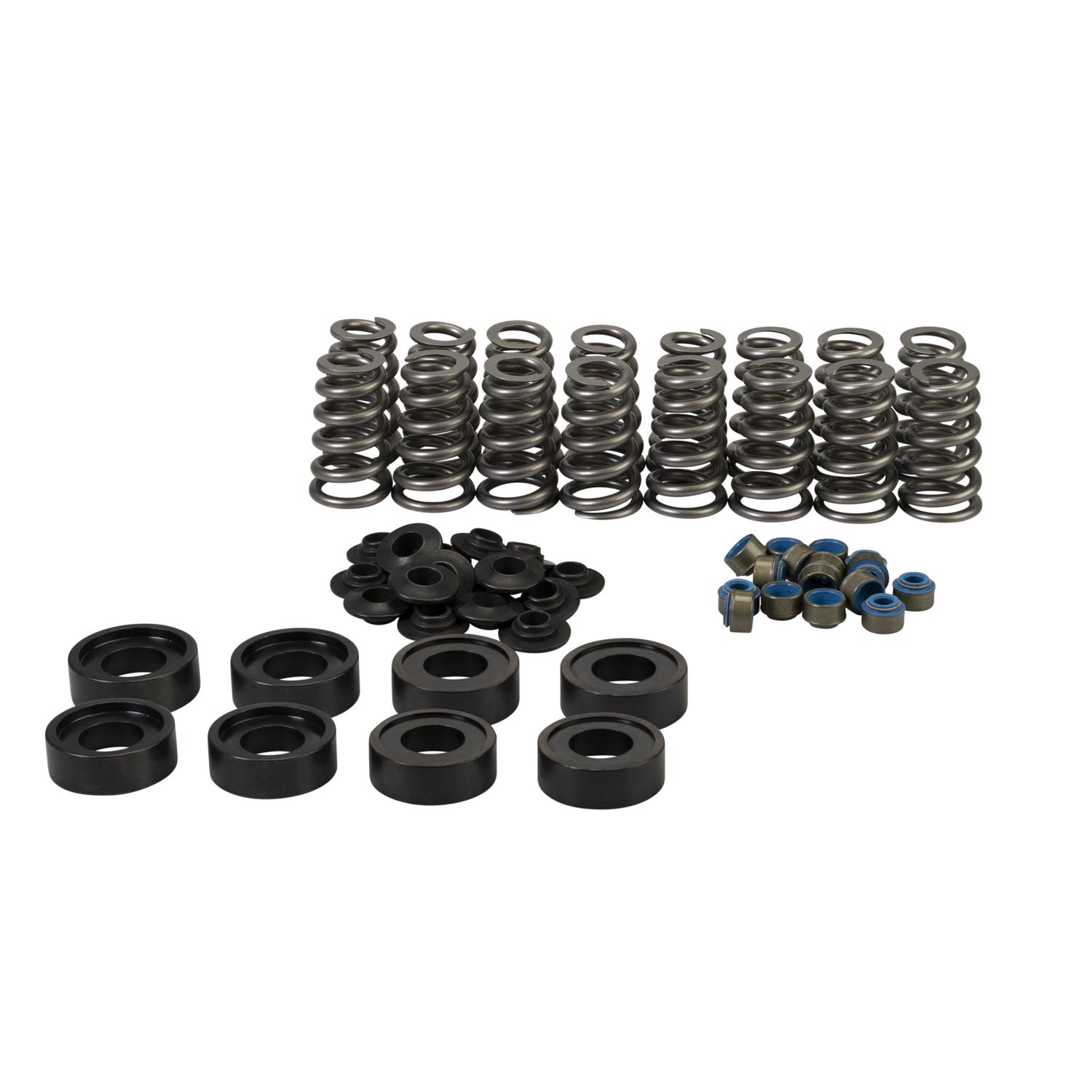

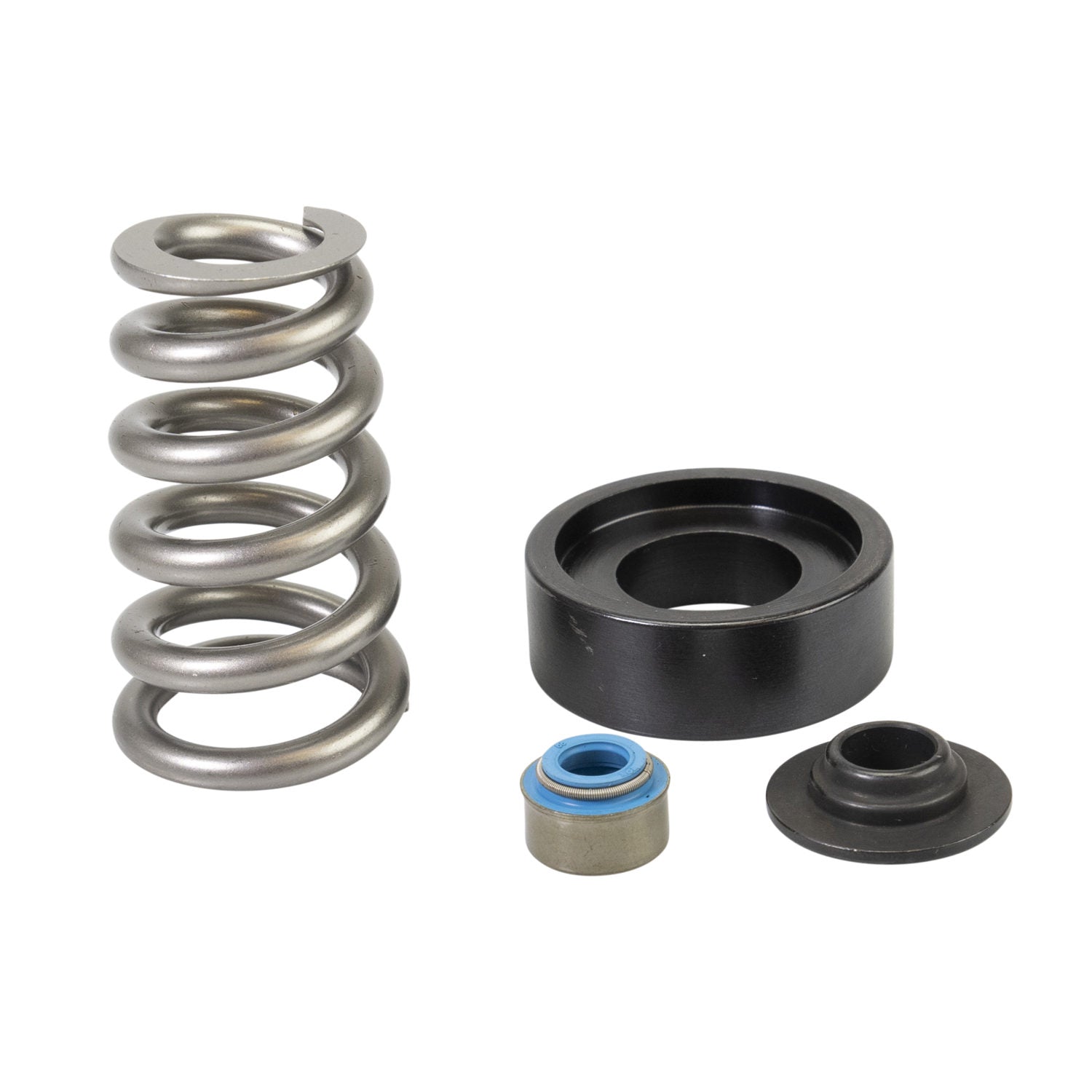

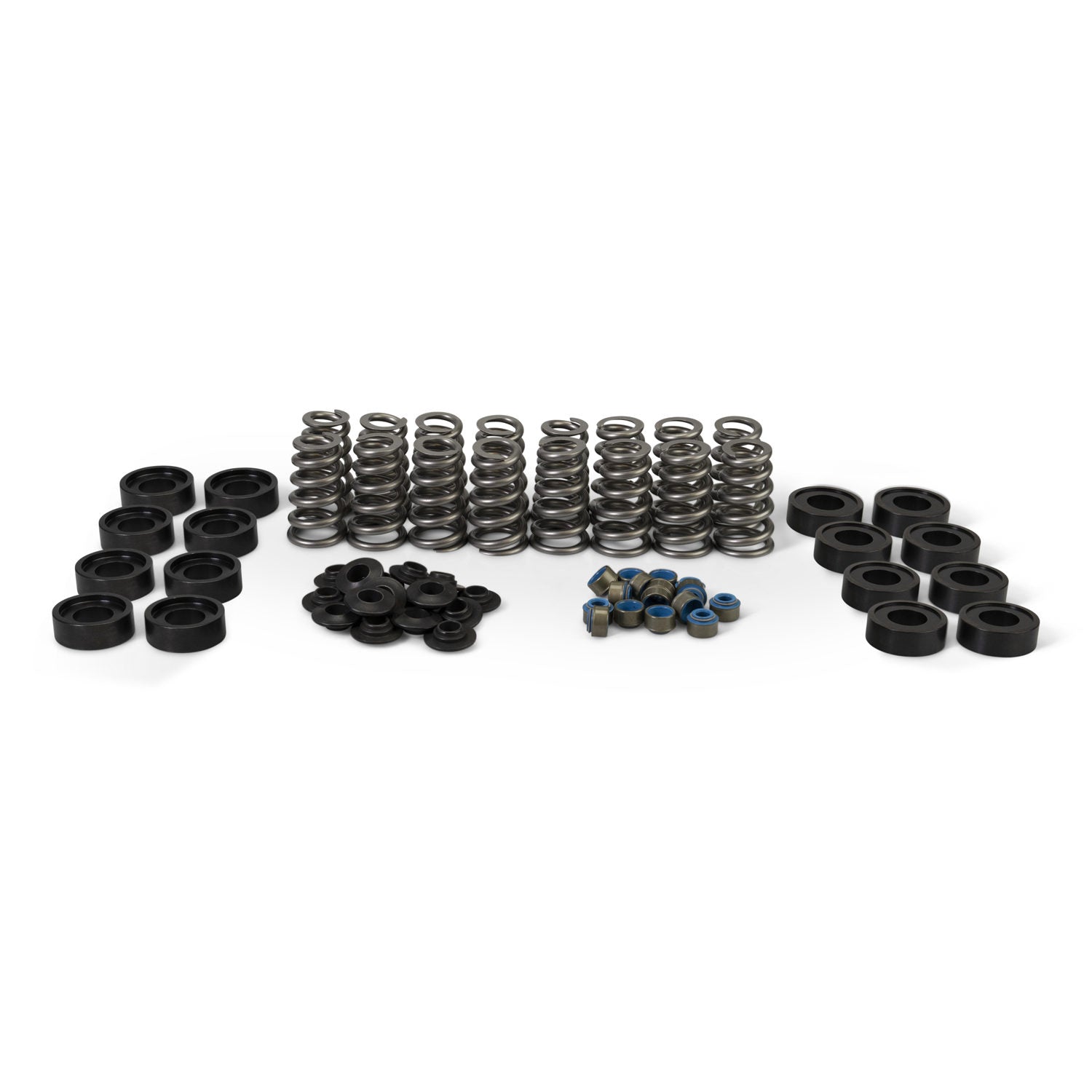

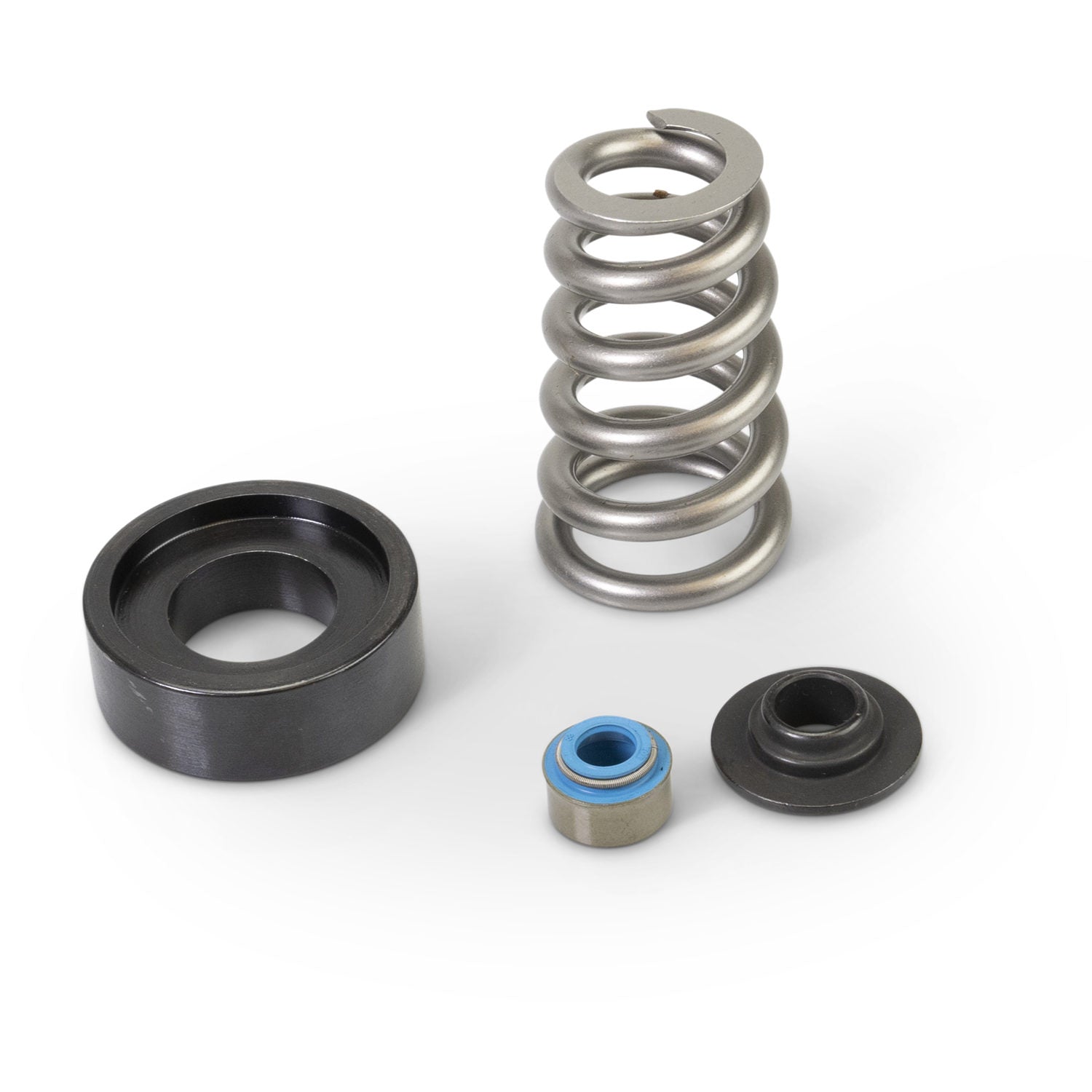

COMP Cams 7230GCS-KIT - Conical Valve Spring Kit 2020+ Ford 7.3L Godzilla Engine

Valve Spring Kit - Conical - Single Spring - 520 lb/in Spring Rate - 1.185 in Coil Bind - 1.060 in / 1.332 in OD - Chromoly Retainers / Viton Seals / Seats - Ford Godzilla - Kit

COMP Cams Conical Valve Spring Kits for Ford 7.3 Godzilla engines use round wire designed to increase valve train RPM, reduce resonance, and decrease spring oscillations, while providing .675" of lift. They use chromemoly steel retainers.

This new Valve Spring Kit for Ford’s 7.3L Godzilla engine utilizes COMP Cams® Conical Valve Springs to provide .675” of valve lift. The conical springs use round wire featuring a diameter and progressive pitch-driven natural frequency. This design increases the valve train RPM while reducing resonance concerns and decreasing dynamic spring oscillations. The result is longer spring life and the ability to run a more aggressive camshaft. It utilizes chromemoly steel retainers and stock valve seals.

  • .675" Valve Lift
  • Conical Valve Springs
Valve Spring Style: Conical
Number of Springs Per Valve: 1
Installed Height: 1.900
Load at Installed Height: 145
Open Height: 1.225
Load at Open Height: 496
Recommended Max Lift: .675
Top Outside Diameter of Outer Spring: 1.060
Bottom Outside Diameter of Outer Spring: 1.332
Top Inside Diameter of Outer Spring: .660
Bottom Inside Diameter of Outer Spring: .932
Spring Rate: 520
Maximum Coil Bind: 1.185
Valve Spring Finish: Superfinish
Retainer Material: Chromoly Steel
Lock Style: 7
Valve Stem Diameter: .315
Spring Seat OD: 1.650
Machine Work Required: No
Quantity: 16
