COMP Cams 689-422-13 - Camshaft GM LS 358 VVT/AFM 27
COMP Cams | SKU:
COMP-689-422-13
Sale price
$51595
Regular price
$56754
Unit price
/
Unavailable
$51.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

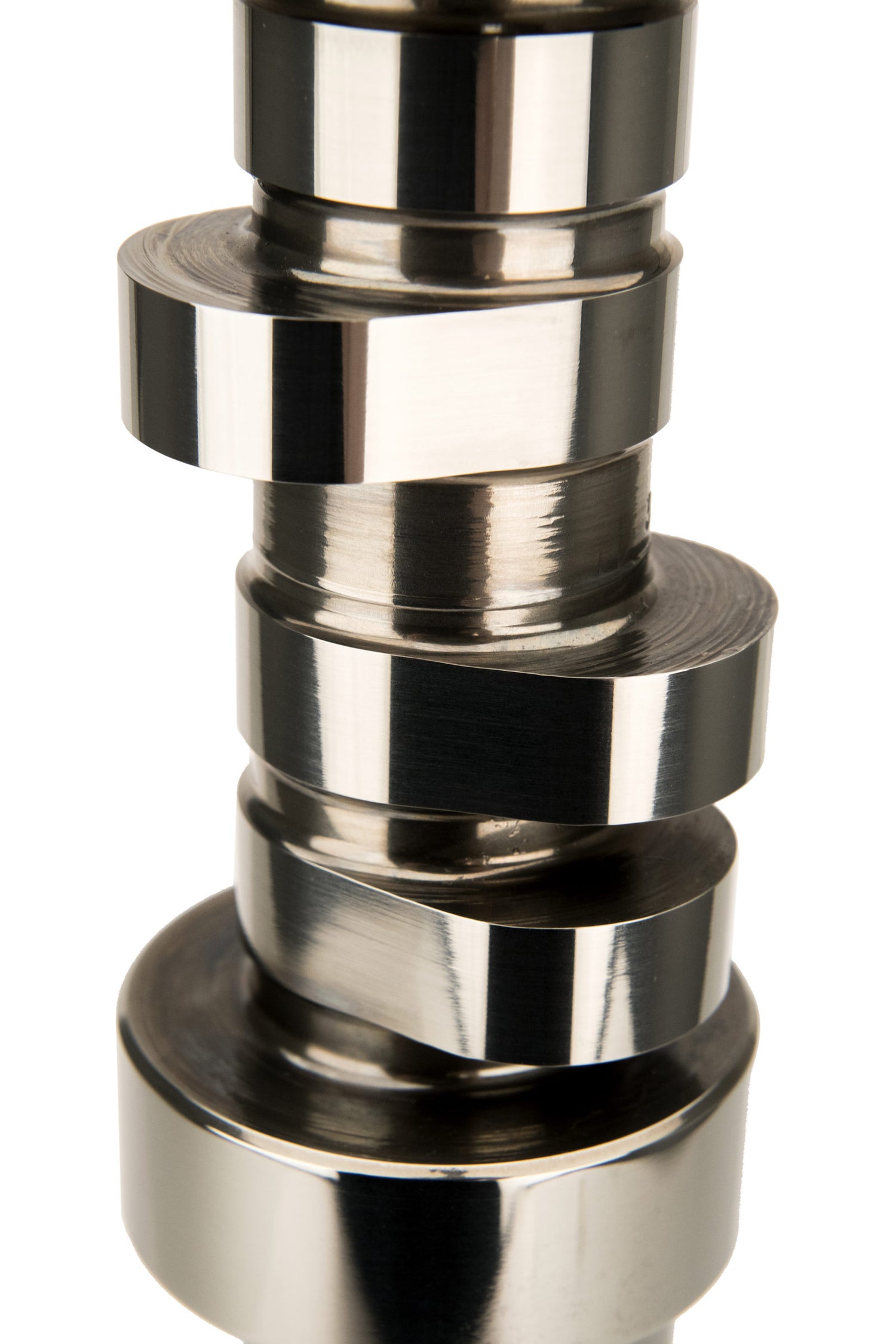

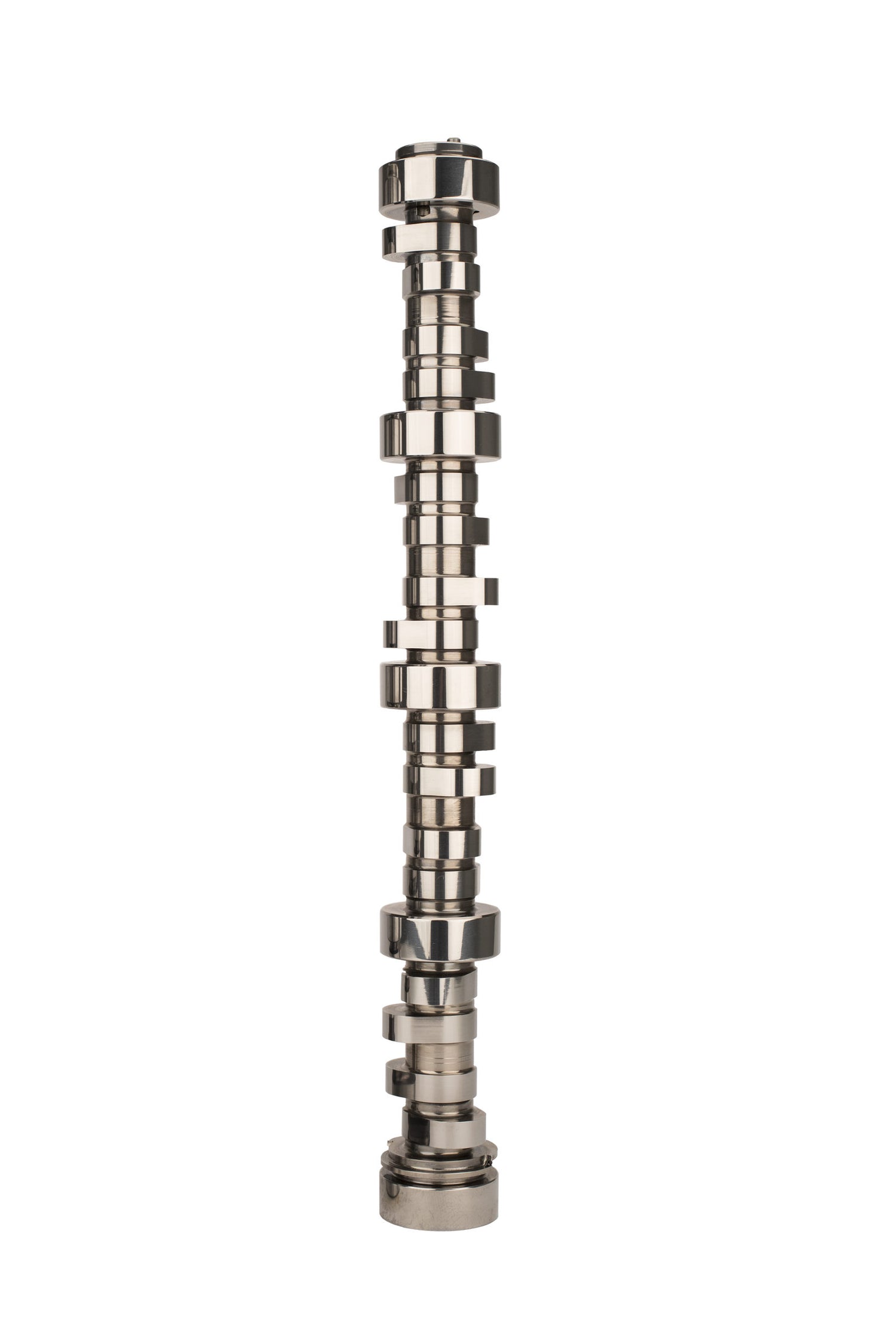

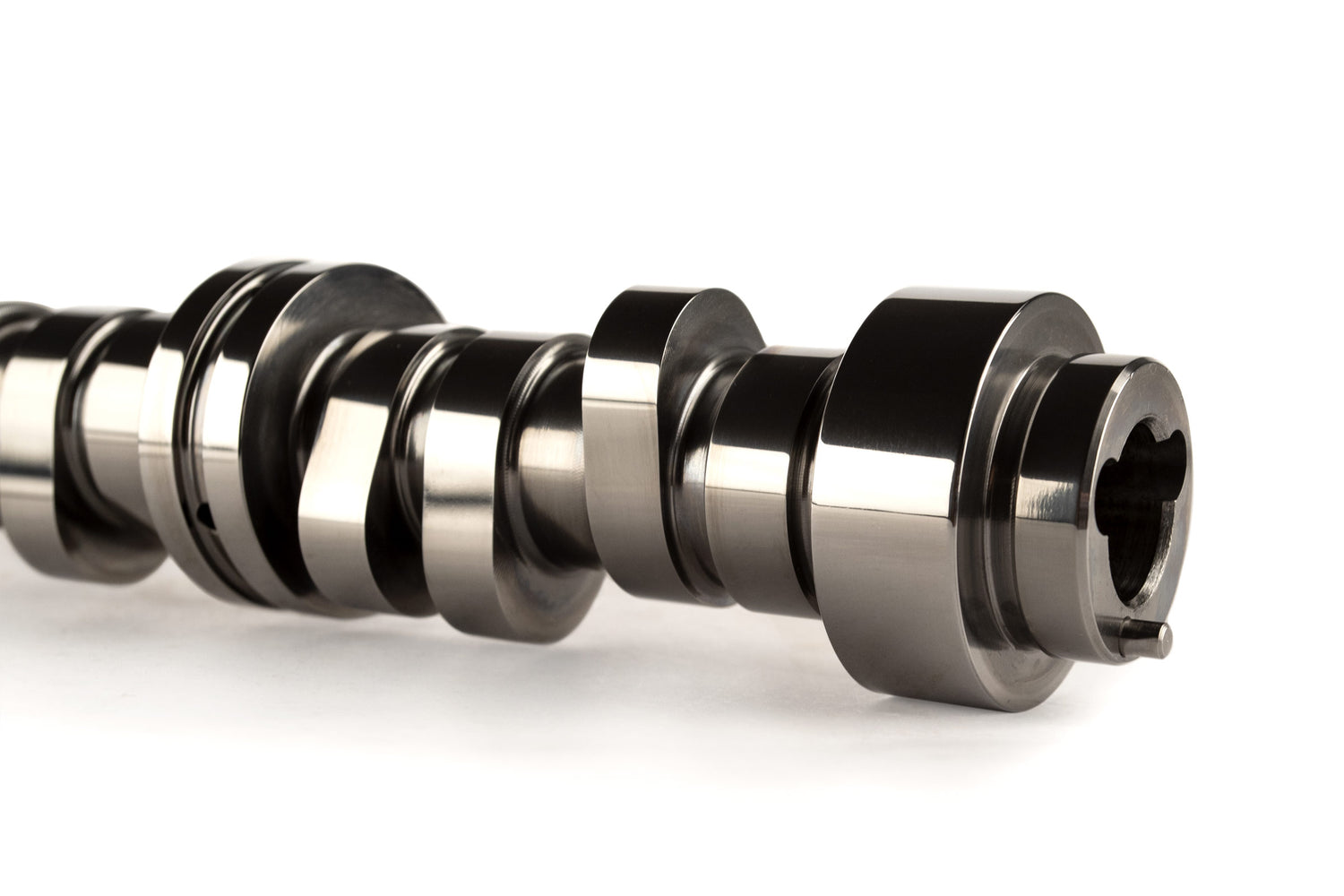

COMP Cams 689-422-13 - Camshaft GM LS 358 VVT/AFM 27
XFI AFM 220/232 D, 218/230 N Hydraulic Roller Cam for GM LS GEN IV
Great all around performance and best choice for mildly modified L99 Camaro applications with AFM enabled.
Camshaft Material: Billet Steel
Usage: Street/Performance
Intake Valve Lift Non-Deactivation Cylinders: 0.5
Intake Valve Lift Deactivation Cylinders: 0.5
Intake Duration at .050 Inch Lift Non-Deactivation Cylinders: 218
Intake Duration at .050 Inch Lift Deactivation Cylinders: 220
Advertised Exhaust Duration Deactivation Cylinders: 294
Exhaust Valve Lift Non-Deactivation Cylinders: 0.5
Advertised Exhaust Duration Non-Deactivation Cylinders: 282
Exhaust Duration at .050 inch Lift Non-Deactivation Cylinders: 230
Exhaust Valve Lift Deactivation Cylinders: 0.5
Engine Family: GM LS GEN IV Single Bolt w/ VVT (12606358) and w/ AFM 8 Cylinder (2008-2015)
Advertised Intake Duration Deactivation Cylinders: 282
Advertised Intake Duration Non-Deactivation Cylinders: 270
Exhaust Duration at .050 inch Lift Deactivation Cylinders: 232
C.A.R.B. E.O.: N/A
Amazon ASIN: B0066SUNUM
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 270PIIHR15
Camshaft Series: XFI AFM
Grind Number: 270PIIHR15
Lobe Separation: 115
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
