COMP Cams 624-536-13 - Camshaft GM Gen V LT1 Ltav 27

COMP Cams  |  SKU: COMP-624-536-13
$58299 $64129

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

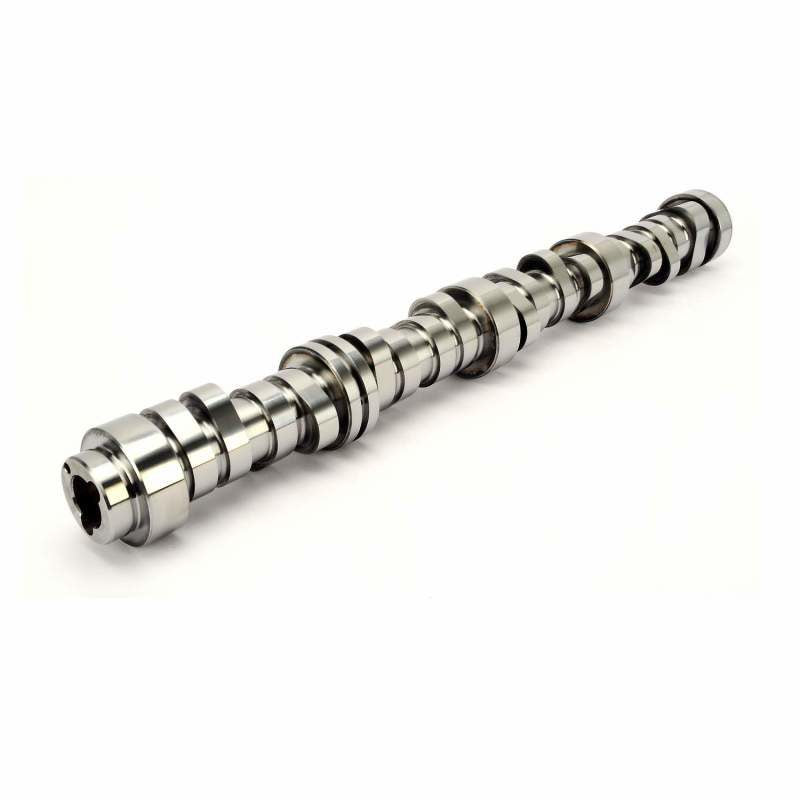

COMP Cams 624-536-13 - Camshaft GM Gen V LT1 Ltav 27

XFI AFM 224/236 D, 222/234 N Hydraulic Roller Cam for GM LT1 GEN V

Outstanding top end power in modified LT1, AFM applications, with only slight low end losses if properly programmed.

Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM's Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications.

Camshaft Series: XFI AFM
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: 274PIIHR18
Basic Operating RPM Range: 2,000-7,100
Intake Duration at .050 Inch Lift: 222
Exhaust Duration at .050 inch Lift: 234
Advertised Intake Duration: 274
Advertised Exhaust Duration: 286
Lobe Separation: 118
Intake Valve Lift: 0.572
Exhaust Valve Lift: 0.529
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Material: Billet Steel
Engine Family: GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)
Lifter Type: Hydraulic Roller
Amazon ASIN: B00N6LQ9YG
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 274PIIHR18
