COMP Cams 624-524-13 - Camshaft GM Gen V LT1 Ltav 27

Name: COMP Cams 624-524-13 - Camshaft GM Gen V LT1 Ltav 27
Brand: COMP Cams
SKU: COMP-624-524-13
Price: 574.95 USD
Availability: Backorder

COMP Cams | SKU: COMP-624-524-13

$574⁹⁵ $632⁴⁴

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

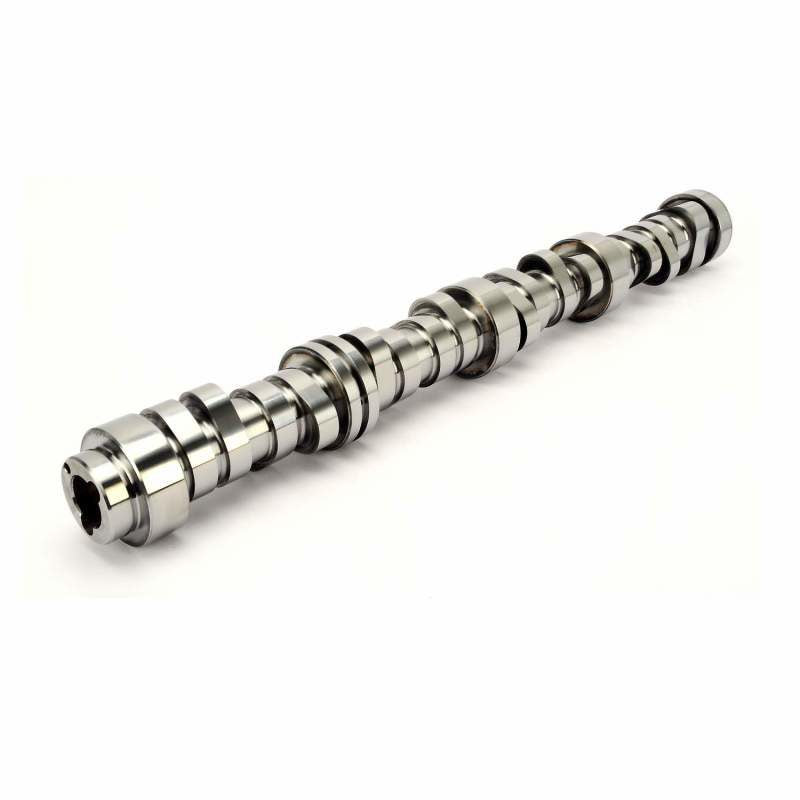

COMP Cams 624-524-13 - Camshaft GM Gen V LT1 Ltav 27

Camshaft - XFI - Hydraulic Roller - Lift 0.572 / 0.529 in - Duration 270 / 282 - 116 LSA - 1800 / 6900 RPM - GM Small Block - Each

Great all around performance and best choice for mildly modified LT1 applications with AFM enabled.

Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM's Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications.

Camshaft Material: Billet Steel

Engine Family: GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)

Lifter Type: Hydraulic Roller

Assembly Lubricant Included: No

Valve Springs Required: Yes

Lifters Included: No

Amazon ASIN: B00N6LRB8E

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?: No

C.A.R.B. Exemption Reason: N/A

C.A.R.B. E.O. Number: N/A

Grind Number: 270PIIHR17

Camshaft Series: XFI AFM

Usage: Street/Performance

Cam Type: Hydraulic Roller

Grind Number: 270PIIHR17

Basic Operating RPM Range: 1,800-6,900

Intake Duration at .050 Inch Lift: 218

Exhaust Duration at .050 inch Lift: 230

Advertised Intake Duration: 270

Advertised Exhaust Duration: 282

Lobe Separation: 117

Intake Valve Lift: 0.572

Exhaust Valve Lift: 0.529
