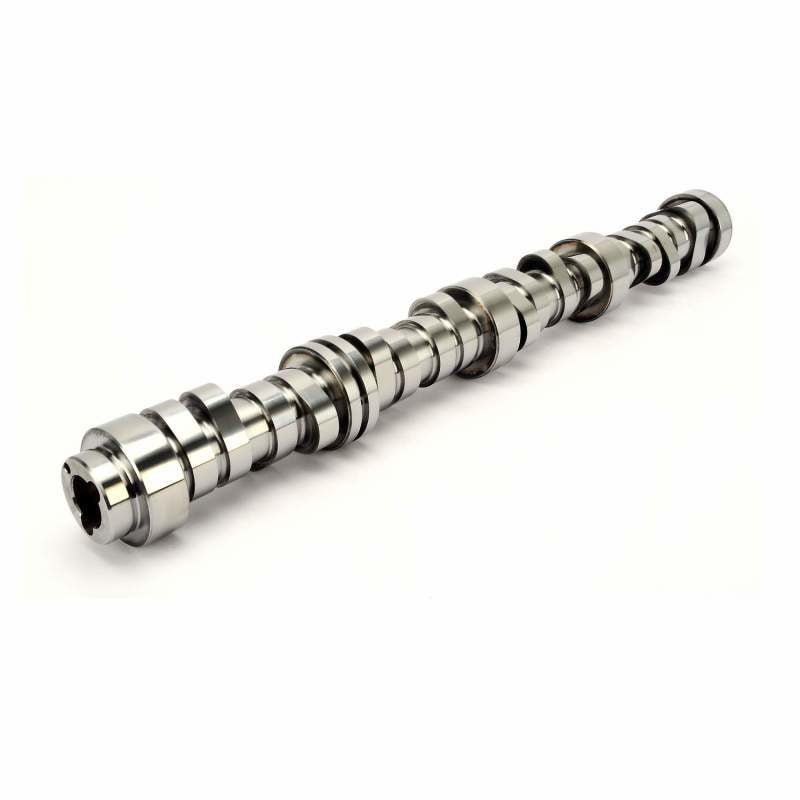

COMP Cams 624-512-13 - Camshaft GM Gen V LT1 Ltav 26

COMP Cams  |  SKU: COMP-624-512-13
$57495 $63244

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 624-512-13 - Camshaft GM Gen V LT1 Ltav 26

XFI AFM 216/228 D, 214/226 N Hydraulic Roller Cam for GM LT1 GEN V

Excellent responsiveness and mid-range power with across the board gains with AFM enabled.

Increase TQ and HP Throughout RPM Range with XFIâ„¢ AFM Cams for GM Gen V. Revolutionary GM Gen V Camshafts from COMP Cams are designed to work with the direct injection, VVT (Variable Valve Timing) and AFM (Active Fuel Management) lifters featured in GM's Gen V (LT1/L83/L86) V8 engine. This means that these XFIâ„¢ Series hydraulic Roller cams allow users to leverage the OE Technology for performance gains. Gen V Cams feature four different lobe profiles to both create AFM compatibility and optimize intake and exhaust valve opening/closing events. COMP Cams GM Gen V Camshafts increase torque and horsepower throughout the entire RPM range, while providing excellent responsiveness and mid-range power over stock for across-the-board gains. These cams must have the COMP Phaser Limiter Kit (Part #5456), which limits the range of Camshaft movement from 62 to 22 crank degrees thus requiring PCM tuning. COMP Cams GM Gen V Camshafts are available for stock to highly modified Applications.

Amazon ASIN: B00N6LTJUW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 266PIIHR16
Camshaft Series: XFI AFM
Usage: Street/Performance
Cam Type: Hydraulic Roller
Exhaust Duration at .050 inch Lift: 226
Advertised Intake Duration: 262
Advertised Exhaust Duration: 274
Lobe Separation: 116
Intake Duration at .050 Inch Lift: 214
Basic Operating RPM Range: 1,600-6,750
Grind Number: 266PIIHR16
Intake Valve Lift: 0.572
Exhaust Valve Lift: 0.529
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Material: Billet Steel
Engine Family: GM LT1 GEN V w/ VVT and w/ AFM 8 Cylinder (2014+)
Lifter Type: Hydraulic Roller
