COMP Cams 56-440-8 - Camshaft Cv6B 260AH-R12

COMP Cams  |  SKU: COMP-56-440-8
$54995 $60494
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

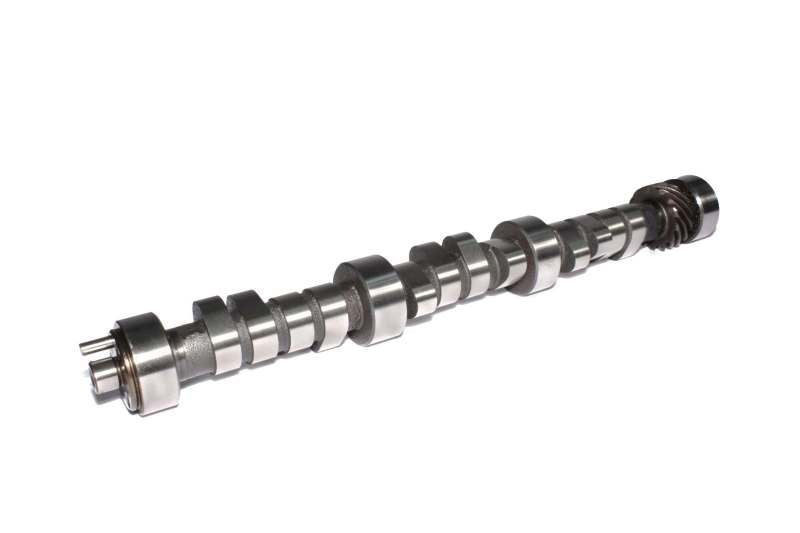

COMP Cams 56-440-8 - Camshaft Cv6B 260AH-R12

Camshaft - Magnum - Hydraulic Roller - Lift 0.500 / 0.500 in - Duration 260 / 266 - 112 LSA - 1200 / 4500 RPM - GM V6 - Each

Works with stock computer and fuel injection. Good low end torque and mileage.

For '92-'14 GM 4.3L/262 cid 90. V6. Balance shaft-Equipped Engines. Works with Stock Computer and Fuel Injection. Good Low End Torque and Mileage. Adjustable Valve Train Required. Balance shaft equipped 4.3L engines were introduced in '92 but GM continued to produce the previous version until '94. Non-Balance shaft 4.3L's ('85-'94) shared their timing cover with the small block Chevy V8 engine. The. Balance shaft 4.3L's timing cover is noticeably taller than the Non-Balance shaft version.

Lobe Separation: 112
Intake Valve Lift: 0.5
Exhaust Valve Lift: 0.5
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Material: Austempered Ductile Iron
Engine Family: Chevrolet 4.3L 262 c.i. 90 Degree w/ Balance Shaft (1992+)
Lifter Type: Hydraulic Roller
Amazon ASIN: B001NEUPZW
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 260AHR
Camshaft Series: Magnum Computer Controlled
Cam Type: Hydraulic Roller
Grind Number: 260AHR
Basic Operating RPM Range: 1,200-4,500
Intake Duration at .050 Inch Lift: 206
Exhaust Duration at .050 inch Lift: 210
Advertised Intake Duration: 260
Advertised Exhaust Duration: 266
