COMP Cams 5460 - Cam Phaser Kit GM L-94/L-99

COMP Cams 5460 - Cam Phaser Kit GM L-94/L-99

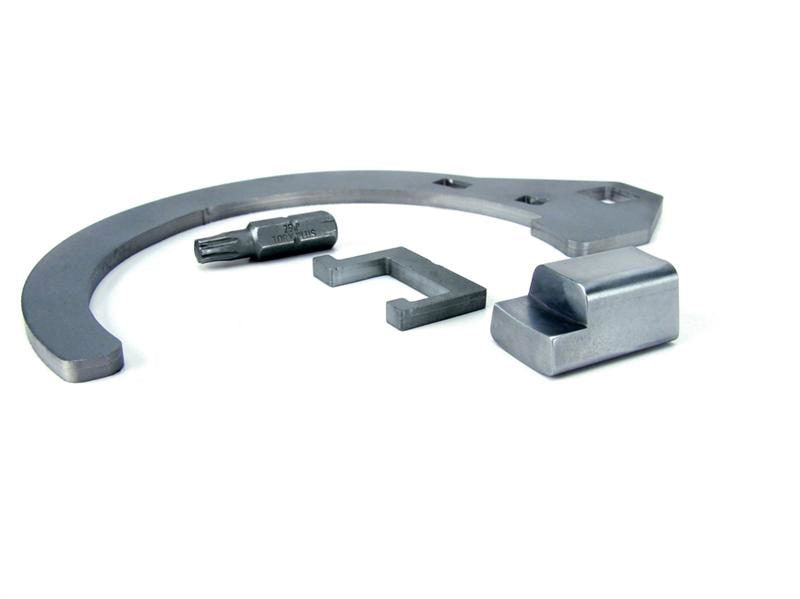

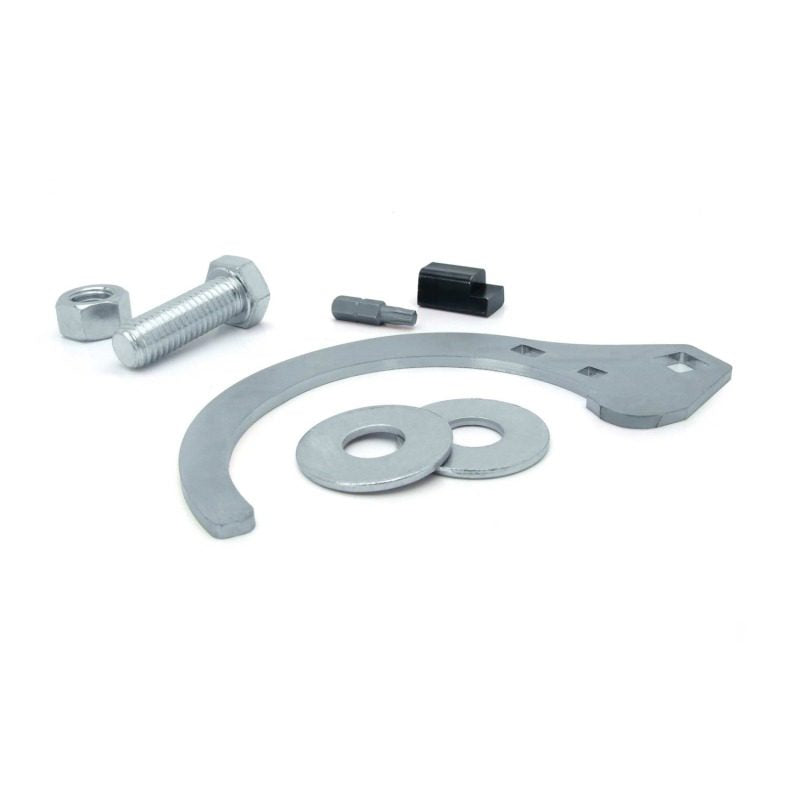

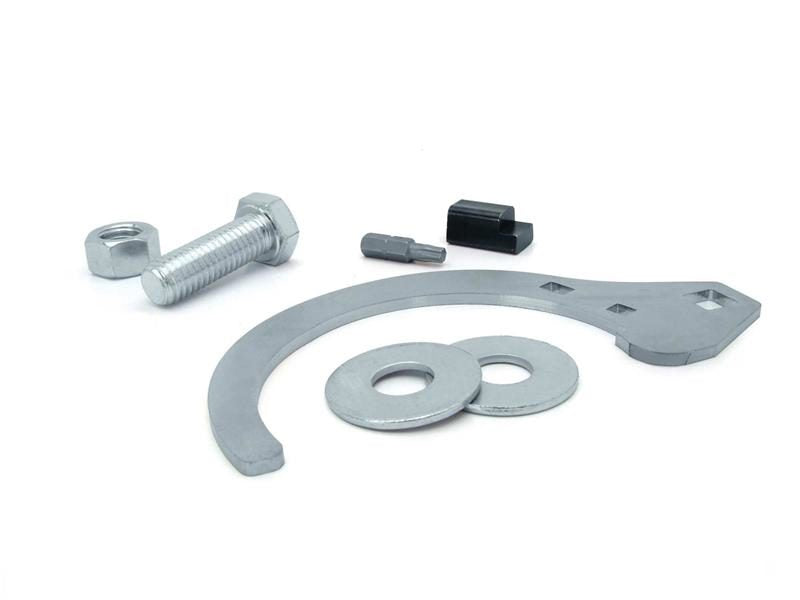

Camshaft Phaser Limiter - 52 to 22 Degree Limit - GM LS-Series - Kit

Including our 5454 spring compressor, 5455 spring lock tool and the 5459 cam phaser limiter plug, this kit has everything that you need to limit the cam timing of your '09+ GEN IV and '14+ LT1 to 22 degrees.

Recently, General Motors developed the new L94/L99 engines, which utilize Variable Valve Timing (VVT). This Technology is regulated by the use of Cam phasers, which are computer controlled Cam Gears that optimize Camshaft timing based on current engine rpm. Engine oil is pressure fed to the Cam phasers through a Series of passageways in the cylinder heads and Cam while the engine computers control solenoids that adjust this oil flow into and out of the phaser's control chambers. While this Technology provides benefits such as fuel efficiency, it does present some limitations when it comes to performance Camshafts. With such a wide range of valve timing movement, there is very little piston to valve clearance, which limits you to small Cam profiles with little overlap. COMP Cams has addressed this concern of street performance and racing enthusiasts by developing the U.S. Patented GM L94/L99 Cam Phaser Limiter Kit. This valve train modification restricts the range of Cam timing movement from 52&deg
