COMP Cams 54-525-11 - Camshaft GM G3 Tri-Power Xtreme 246HR-17
COMP Cams | SKU:
COMP-54-525-11
Sale price
$51595
Regular price
$56754
Unit price
/
Unavailable
$51.59 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

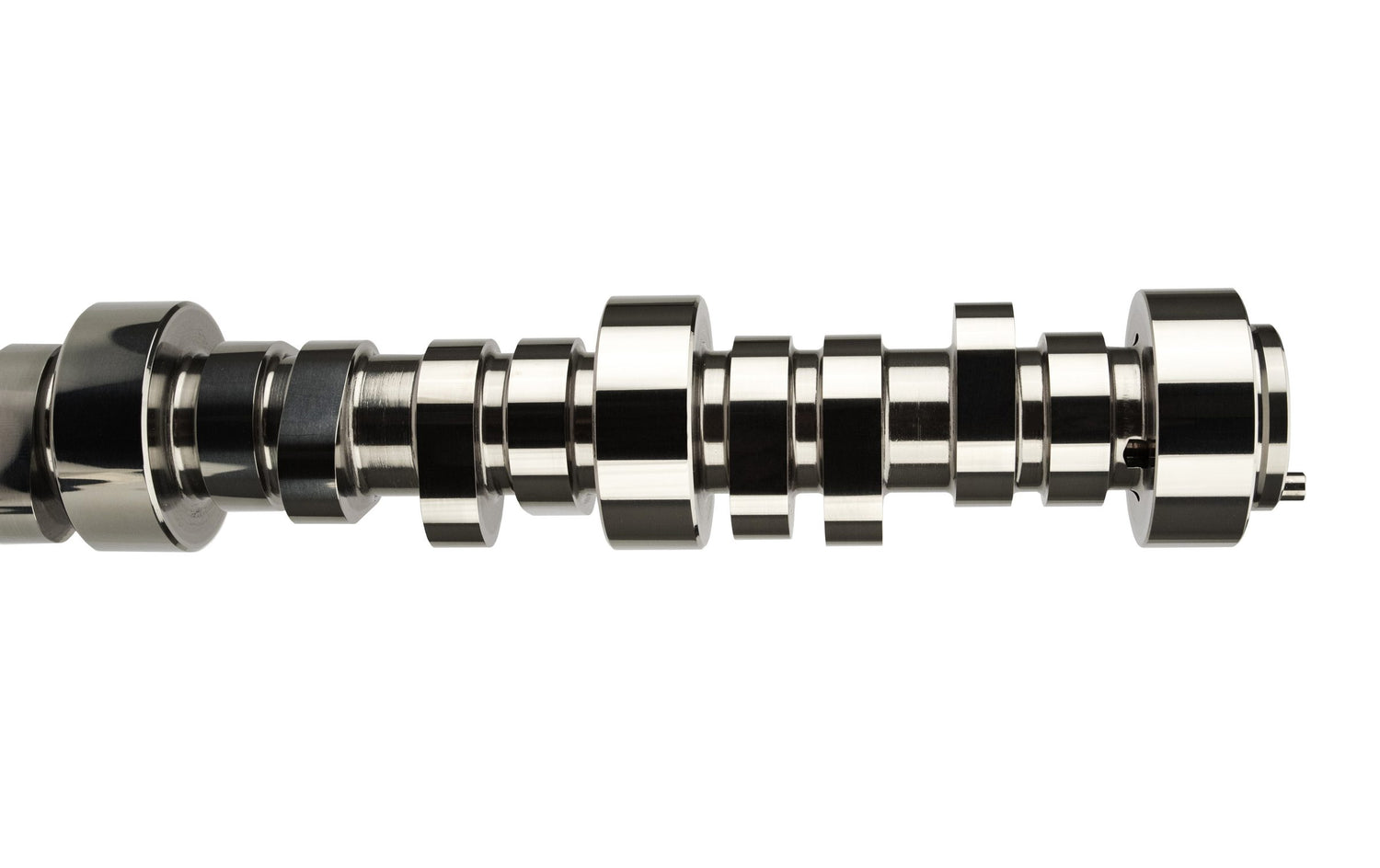

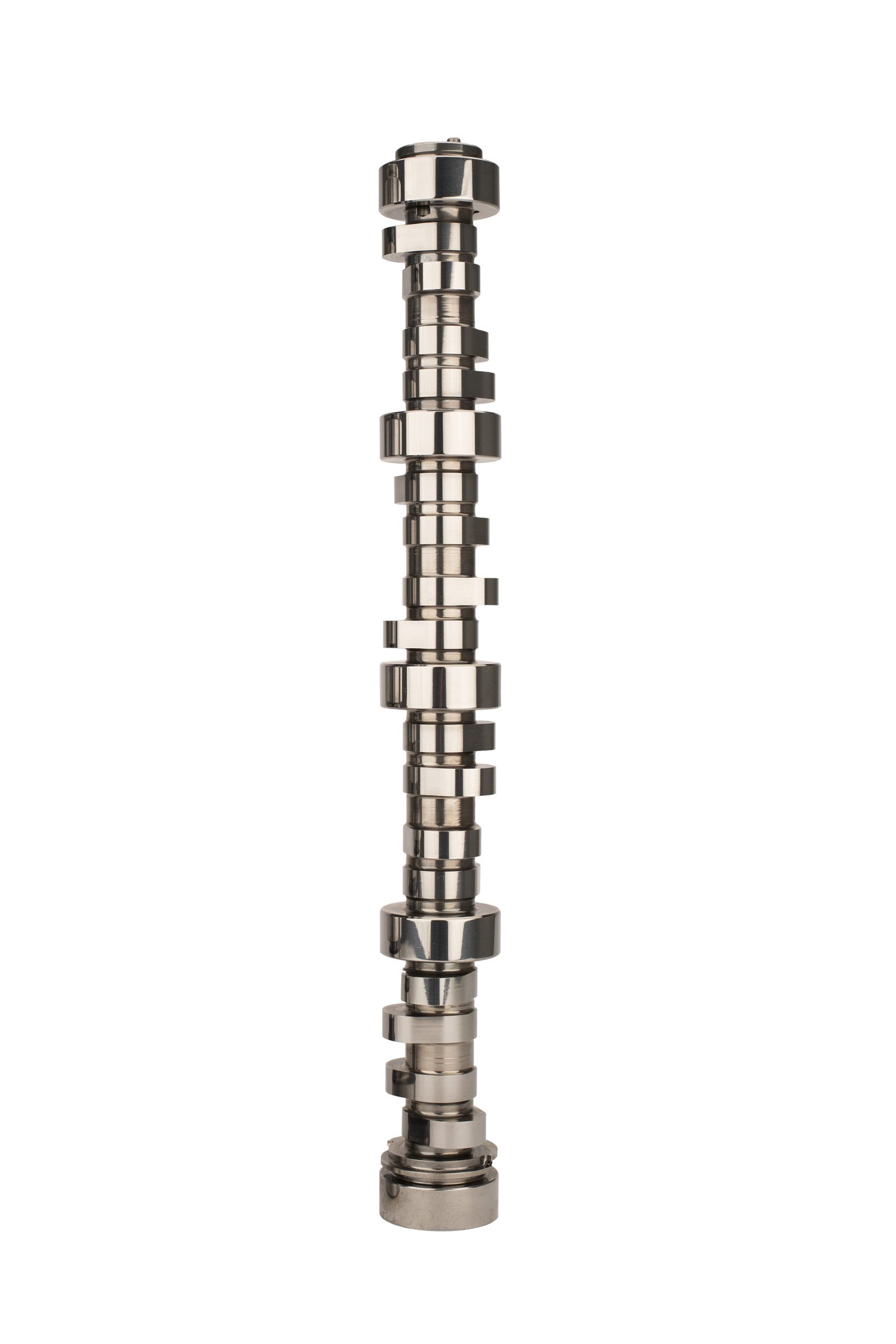

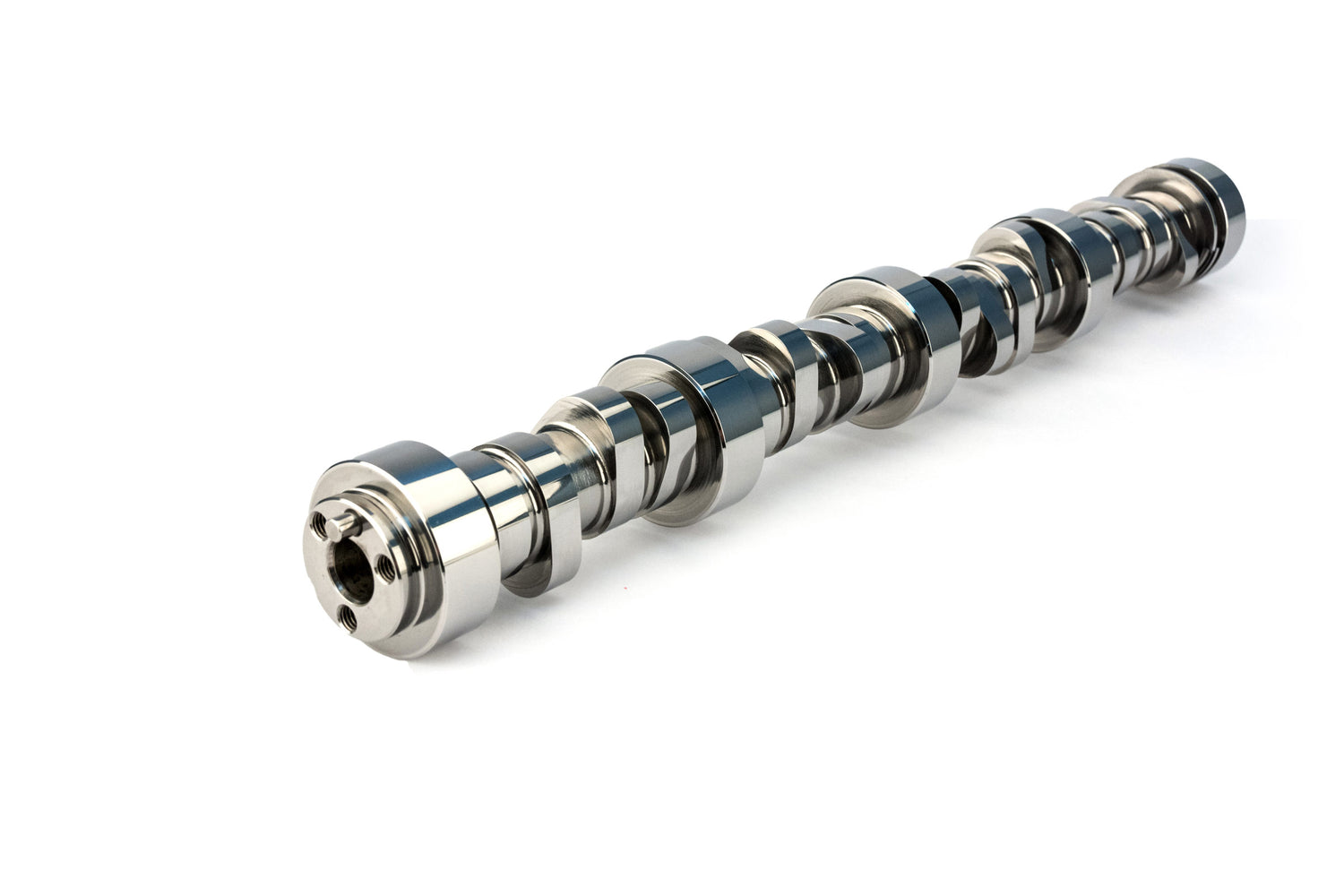

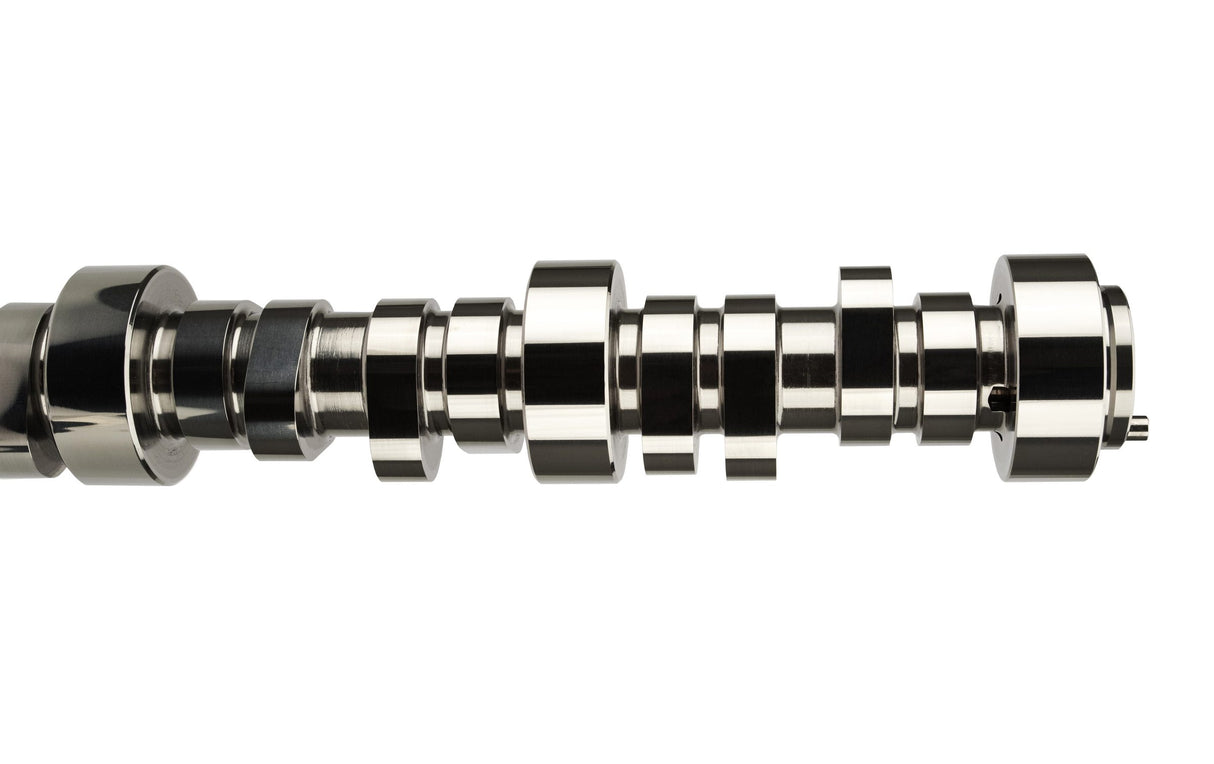

COMP Cams 54-525-11 - Camshaft GM G3 Tri-Power Xtreme 246HR-17
Tri-Power Xtreme 194/206 Hydraulic Roller Cam for GM LS GEN III/IV
Optimized fuel mileage with good torque and horsepower. Needs programmer.
Camshaft Series: Tri-Power Xtreme
Cam Type: Hydraulic Roller
Grind Number: TPX 246HR-17
Basic Operating RPM Range: 800-5,800
Intake Duration at .050 Inch Lift: 194
Exhaust Duration at .050 inch Lift: 206
Advertised Intake Duration: 246
Advertised Exhaust Duration: 258
Lobe Separation: 117
Intake Valve Lift: 0.5
Exhaust Valve Lift: 0.493
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Lifter Type: Hydraulic Roller
Amazon ASIN: B001G93QK0
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: TPX 246HR-17
