COMP Cams 54-474-11 - Camshaft LS1 301Lrr HR-115
COMP Cams | SKU:
COMP-54-474-11
Sale price
$40495
Regular price
$44544
Unit price
/
Unavailable
$40.49 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

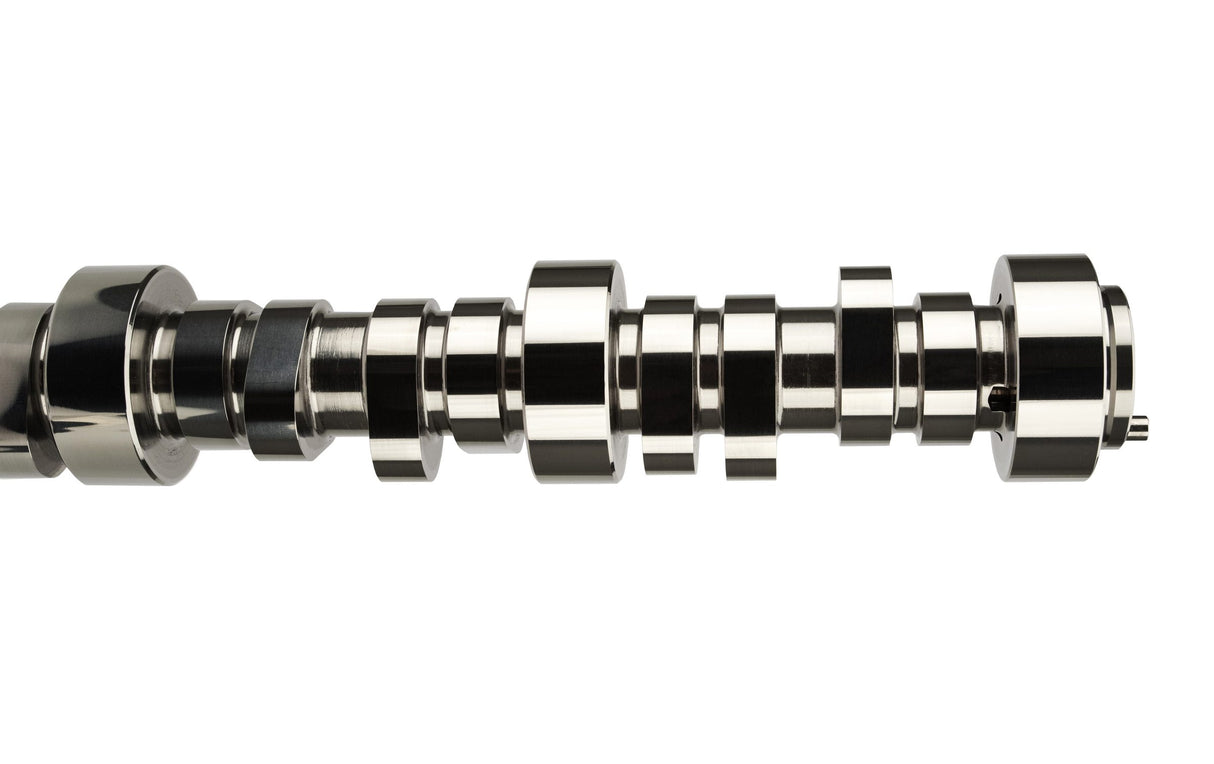

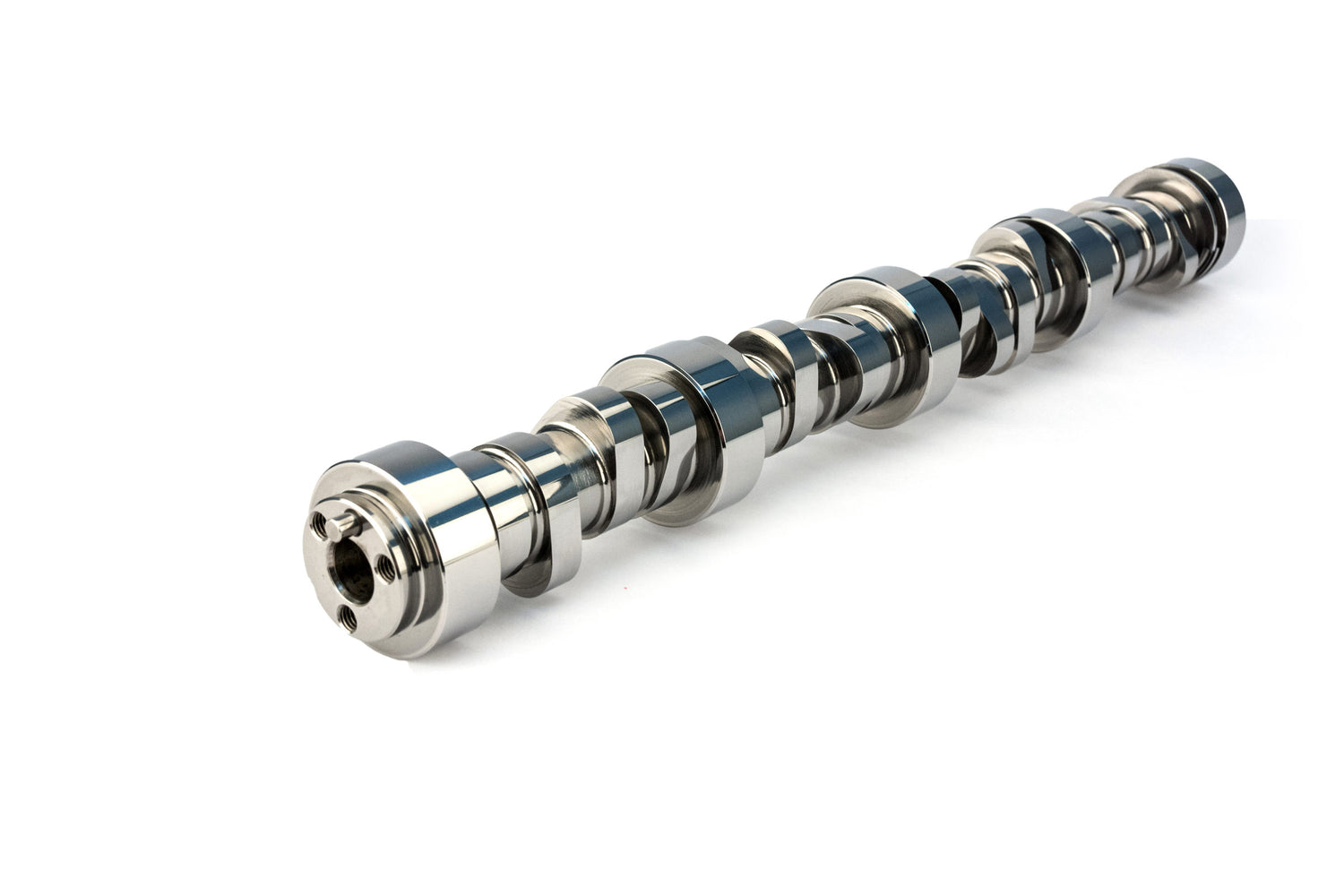

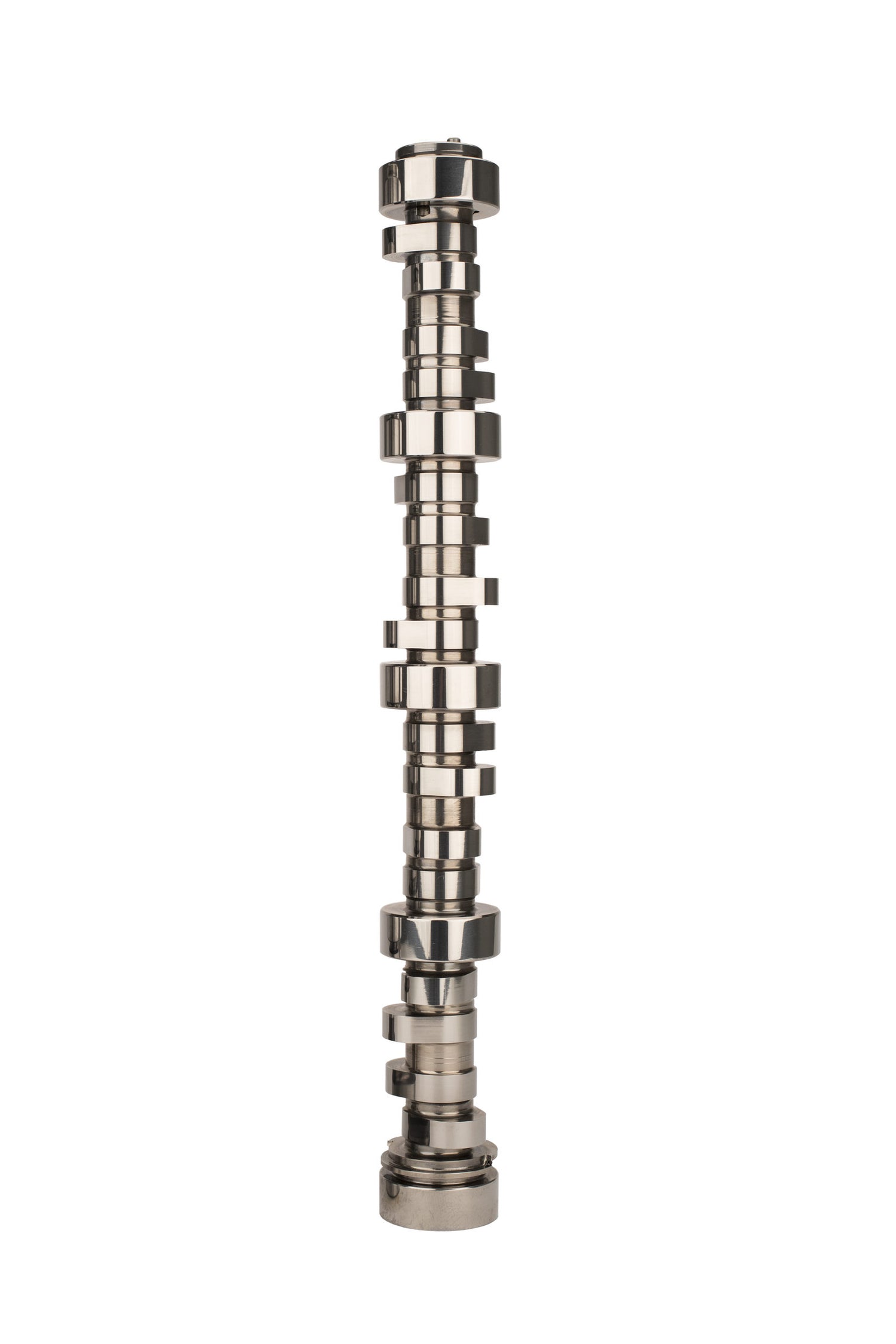

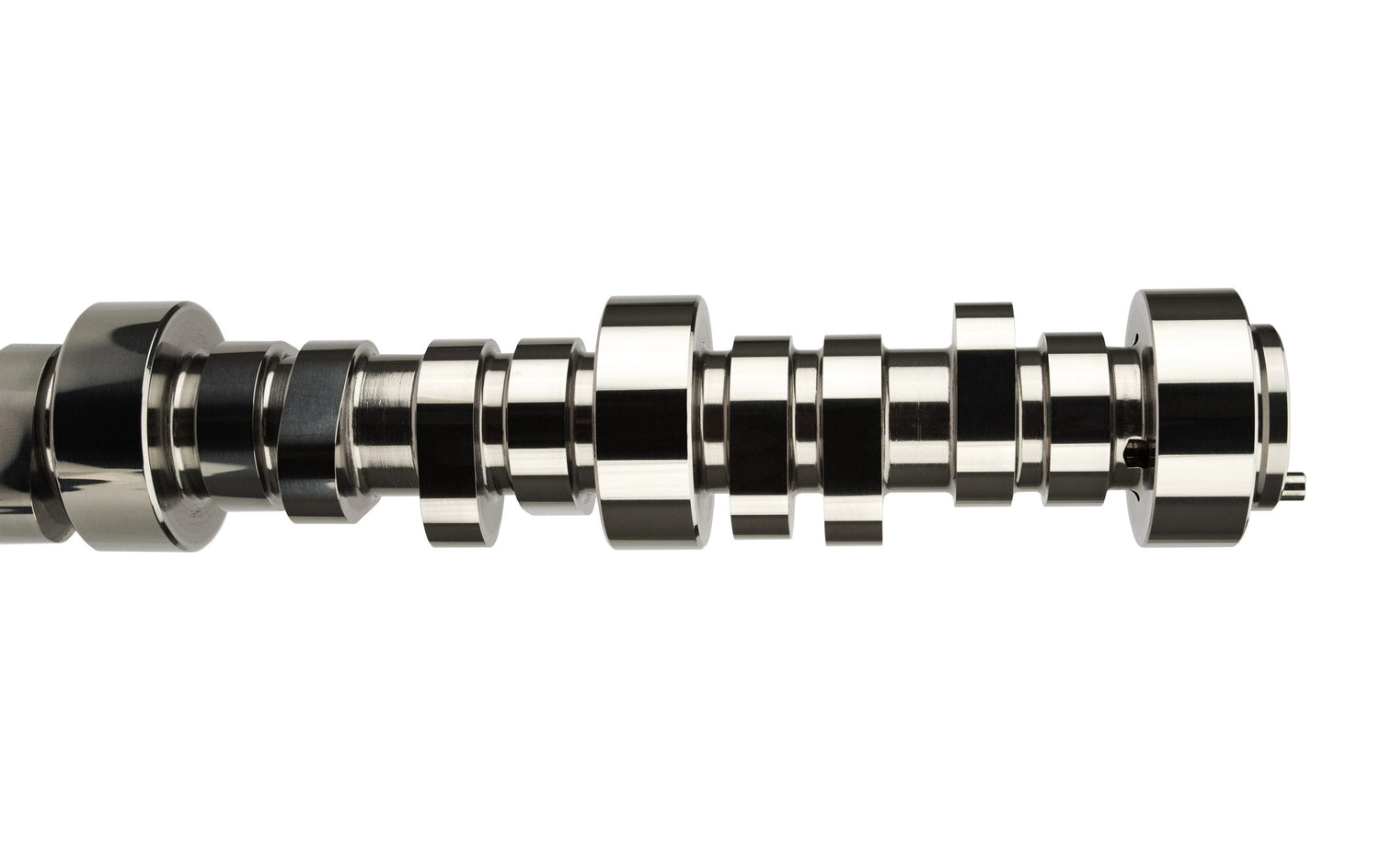

COMP Cams 54-474-11 - Camshaft LS1 301Lrr HR-115
Camshaft - LSR Rectangular Port - Hydraulic Roller - Lift 0.624 / 0.624 in - Duration 301 / 317 - 115 LSA - 2600 / 7000 RPM - GM LS-Series - Each
420+c.i., high compression, high RPM, rectangular CNC-ported heads in race type applications.
Hydraulic Roller: 420+ c.i., high compression, high rpm, rectangular CNC-ported heads in Race type Applications.
Basic Operating RPM Range: 2,600-7,000
Intake Duration at .050 Inch Lift: 251
Exhaust Duration at .050 inch Lift: 267
Advertised Intake Duration: 301
Advertised Exhaust Duration: 317
Lobe Separation: 115
Intake Valve Lift: 0.624
Exhaust Valve Lift: 0.624
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Lifter Type: Hydraulic Roller
Amazon ASIN: B001P24PNA
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 301LRR HR15
Camshaft Series: LSR Rectangular Port Large Displacement
Cam Type: Hydraulic Roller
Grind Number: 301LRR HR15
