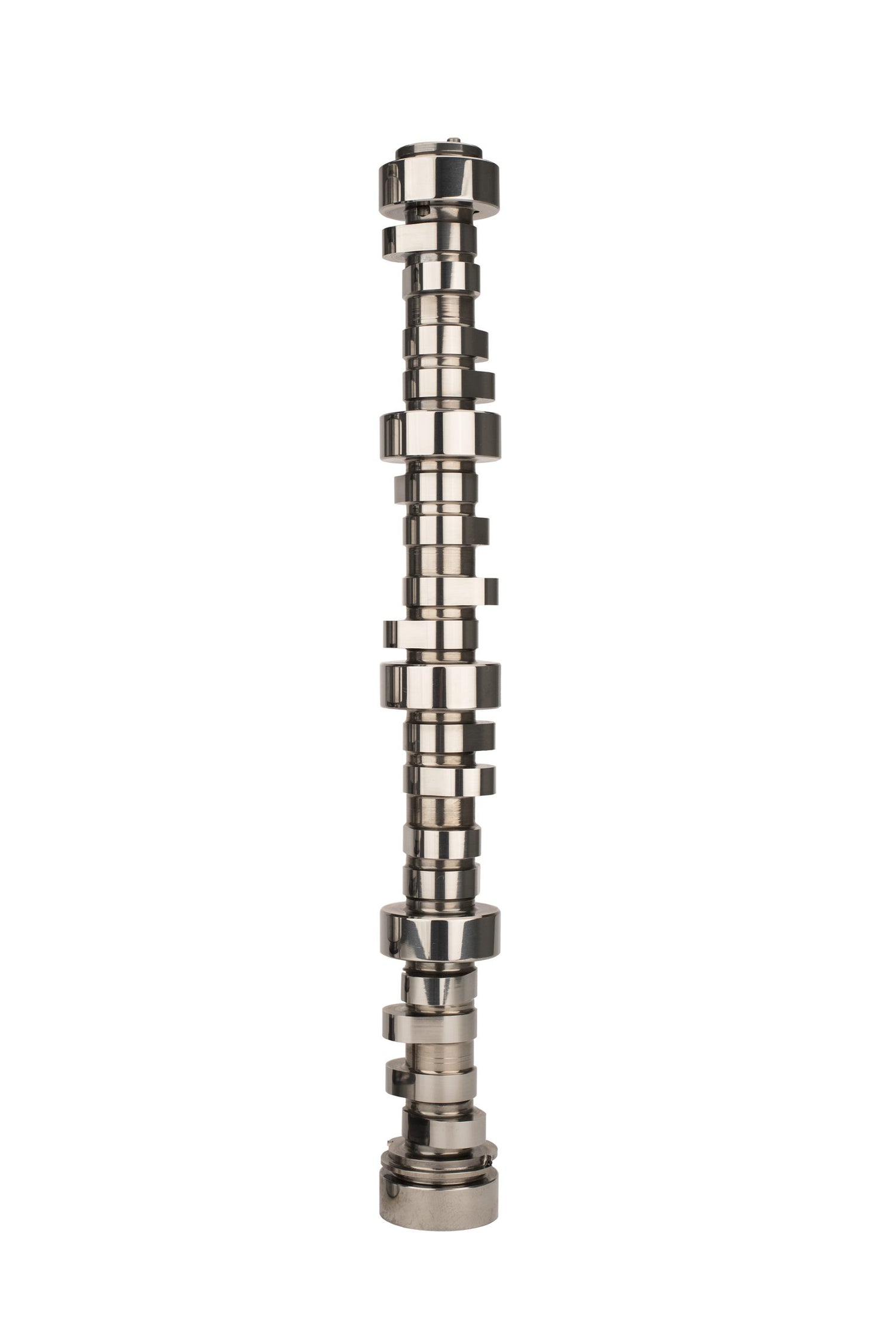

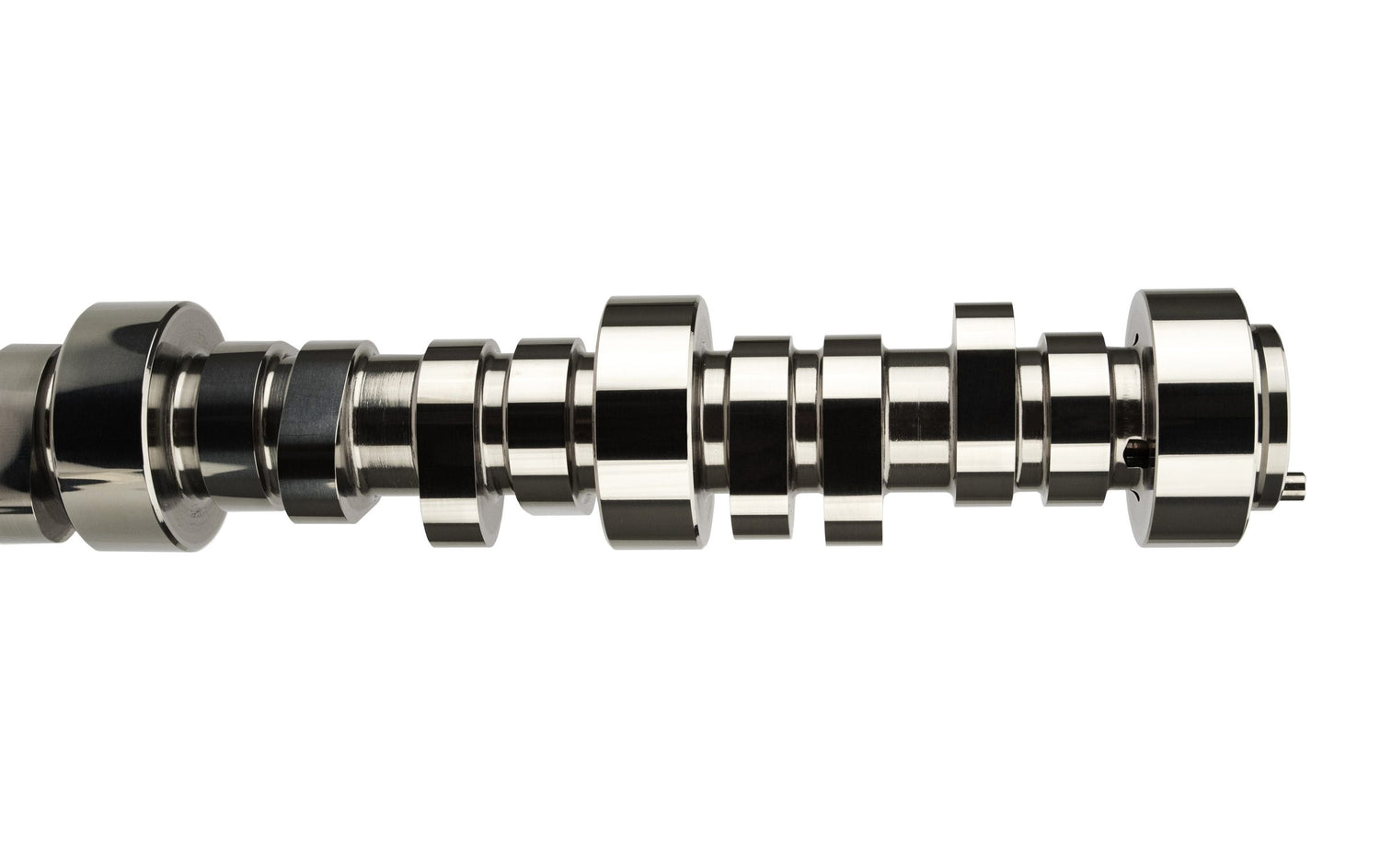

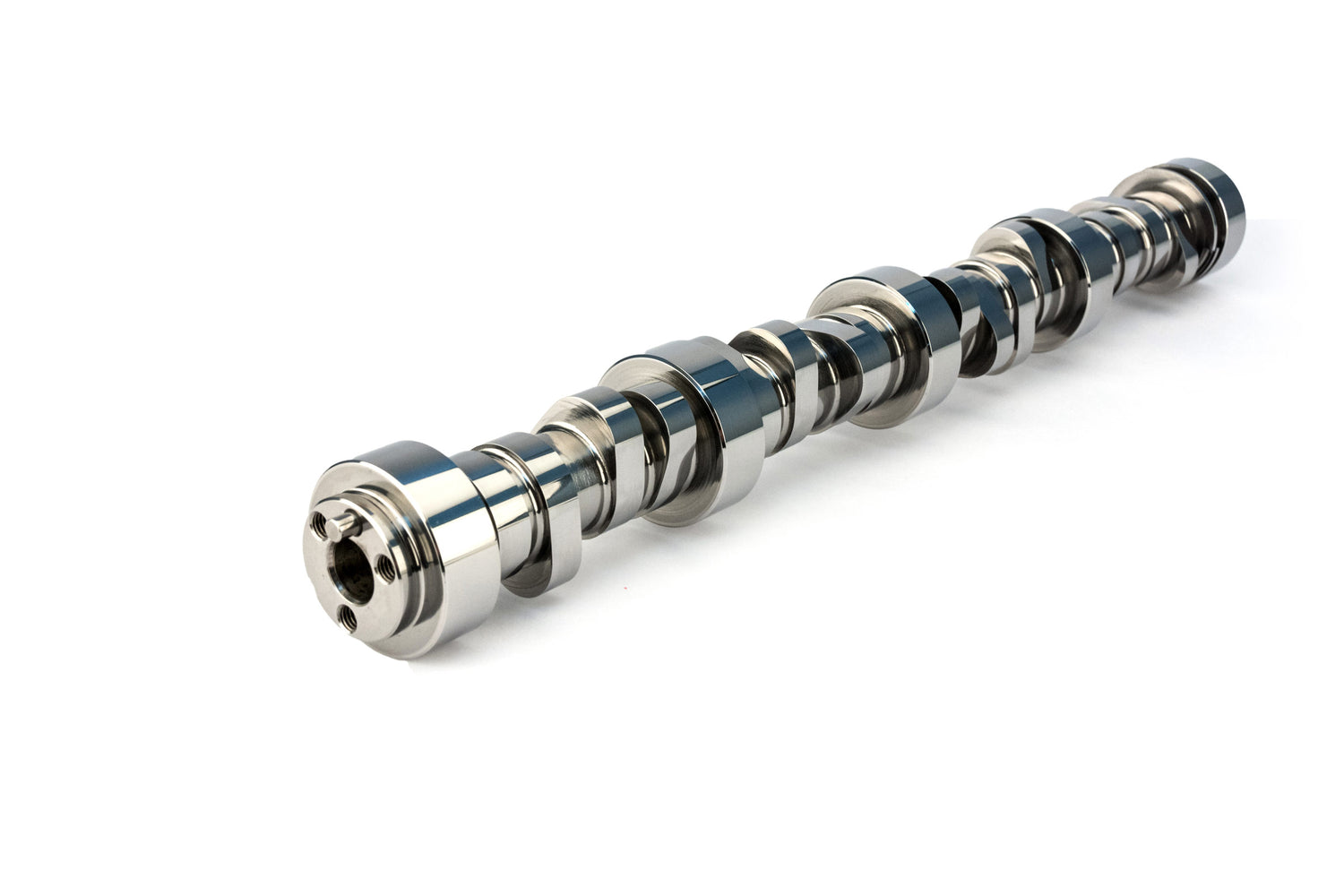

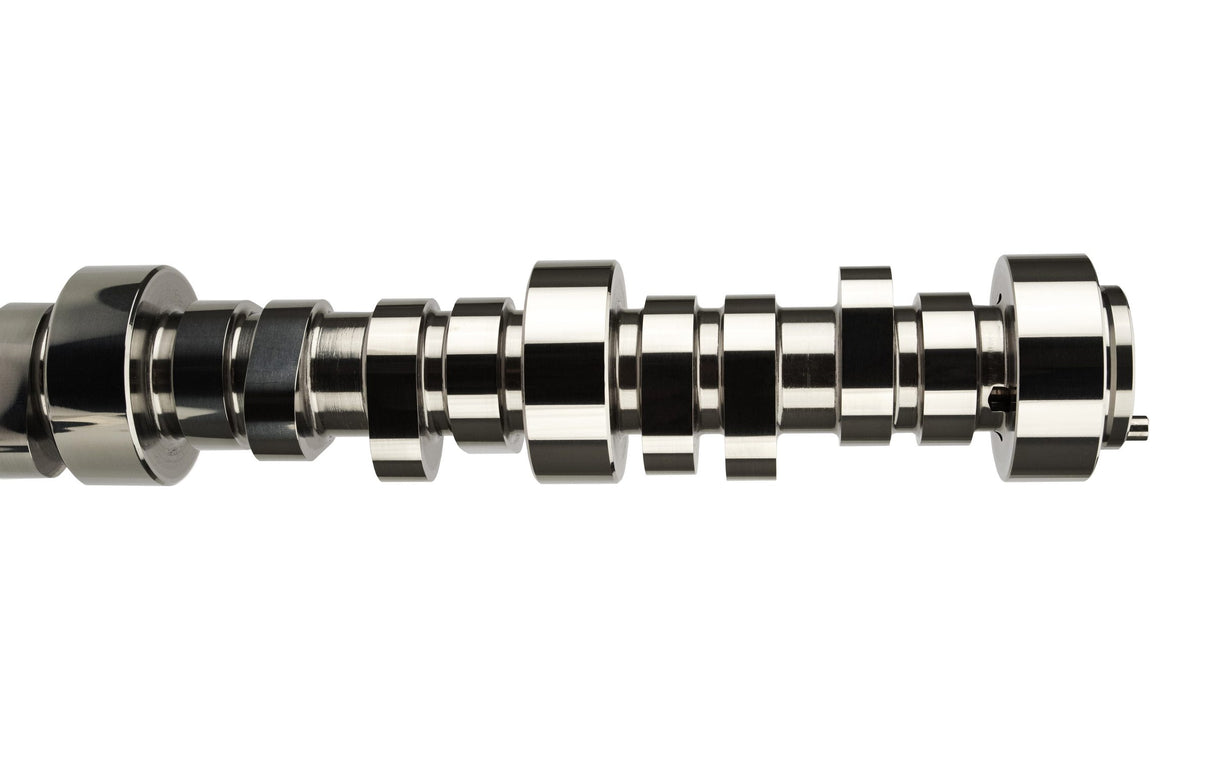

COMP Cams 54-463-11 - Camshaft LS1 297Lrx HR-114
COMP Cams | SKU:
COMP-54-463-11
Sale price
$49995
Regular price
$54994
Unit price
/
Unavailable
$49.99 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams 54-463-11 - Camshaft LS1 297Lrx HR-114
Camshaft - LSR Cathedral Port - Hydraulic Roller - Lift 0.624 / 0.624 in - Duration 297 / 305 - 114 LSA - 2400 / 7000 RPM - GM LS-Series - Each
400+c.i., high RPM applications with major modifications and cathedral port cylinder heads.
Lobe Separation: 114
Intake Valve Lift: 0.624
Exhaust Valve Lift: 0.624
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder (1997-2015)
Lifter Type: Hydraulic Roller
Amazon ASIN: B002EDX6I4
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
MSE Process Video Link: https://www.youtube.com/watch?v=hTyIQxrPCCI
Camshaft Series: LSR Cathedral Port Large Displacement
Cam Type: Hydraulic Roller
Grind Number: 297LRx HR14
Basic Operating RPM Range: 2,400-7,000
Intake Duration at .050 Inch Lift: 247
Exhaust Duration at .050 inch Lift: 255
Advertised Intake Duration: 297
Advertised Exhaust Duration: 305
