COMP Cams 54-273-11 - GM LS3/LS4 HV Series Camshaft

COMP Cams  |  SKU: COMP-54-273-11
$40495 $44544

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

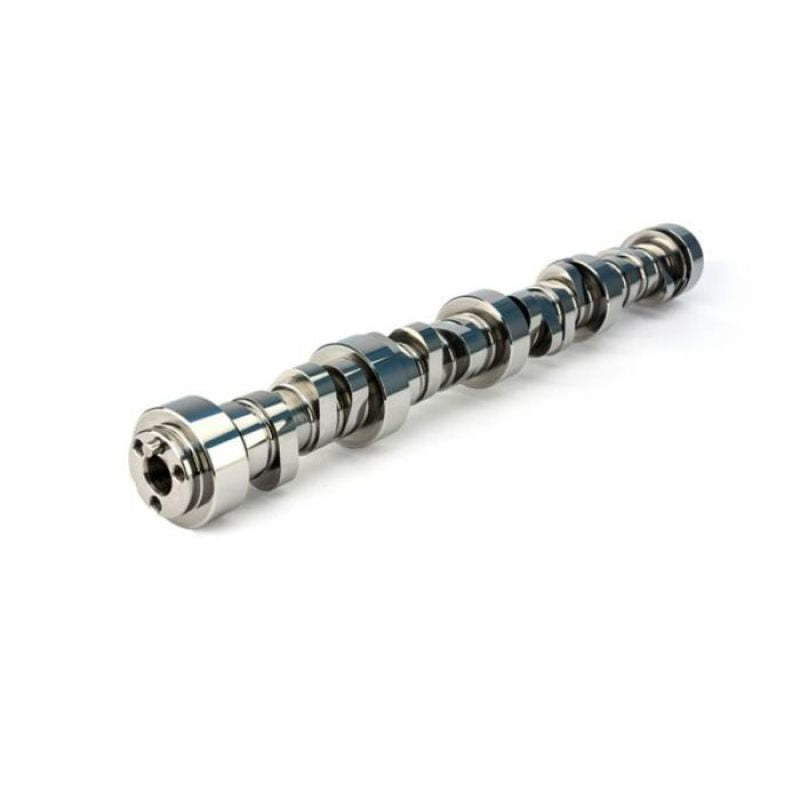

COMP Cams 54-273-11 - GM LS3/LS4 HV Series Camshaft

Camshaft - HV - Hydraulic Roller - Lift 0.575 in / 0.570 in - Duration 271 / 278 - 111 LSA - 2500 / 6300 RPM - GM LS-Series - Each

This COMP Cams® HV NSR cam is designed for GMcathedral port 4.8L/5.3L/6.0L powered vehicles. Itprovides amazing drivability and throttle responsewhile also requiring minimal tuning.

This COMP Cams® HV cam is designed for GM cathedral port 4.8L/5.3L/6.0L powered vehicles. It provides amazing drivability and throttle response while also requiring minimal tuning. Torque is increased across the entire operating range while still producing +79 horsepower at peak. Get the most out of your daily driver truck, SUV or 4x4 without sacrificing street manners. The HV cam will provide a deep rumble with a mild, yet noticeable lope. At .575" lift, this cam is designed to take advantage of the inexpensive 26906 valve spring upgrade. Also compatible with stock converters.

Advertised Exhaust Duration: 278
Camshaft Series: HV
Advertised Intake Duration: 271
Usage: Street
Cam Type: Hydraulic Roller
Exhaust Duration at .050 inch Lift: 226
Grind Number: LS271HV11
Cam Type: Hydraulic Roller
Exhaust Valve Lift: 0.57
Lifter Type: Roller Tappet
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.57
Camshaft Intake Centerline: 106
Intake Duration at .050 Inch Lift: 218
Advertised Intake Duration: 271
Intake Valve Lift: 0.575
Intake Valve Lift with Factory Rocker Arm Ratio: 0.575
Advertised Exhaust Duration: 278
Intake Duration at .050 Inch Lift: 218
Lifter Type: Hydraulic Roller
Lobe Separation: 111
Exhaust Duration at .050 inch Lift: 226
Intake Lobe Lift: 0.338
Exhaust Lobe Lift: 0.335
Lobe Separation: 111
Advance: 5
Exhaust Open BBDC: 49
Intake Open BTDC: 3
Exhaust Close ATDC: -3
Intake Close ABDC: 35
Factory Rocker Ratio: 1.7
Intake Valve Lash: Hyd
Exhaust Valve Lash: Hyd
Intake Valve Lift with Factory Rocker Arm Ratio: 0.575
Exhaust Valve Lift with Factory Rocker Arm Ratio: 0.57
Basic Operating RPM Range: 2500 - 6300
Direct Injection: No
VVT Compatible: No
Phaser Requirement: None
Fuel Management Strategy Compatible: No
Computer Controlled Compatible: Yes
Valve Springs Required: Yes
Engine Platform: GM LS GEN III/IV
Grind Number: LS271HV11
