COMP Cams 506-16 - Valve Seals 11/32in Stem

COMP Cams  |  SKU: COMP-506-16
$6199 $6819
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

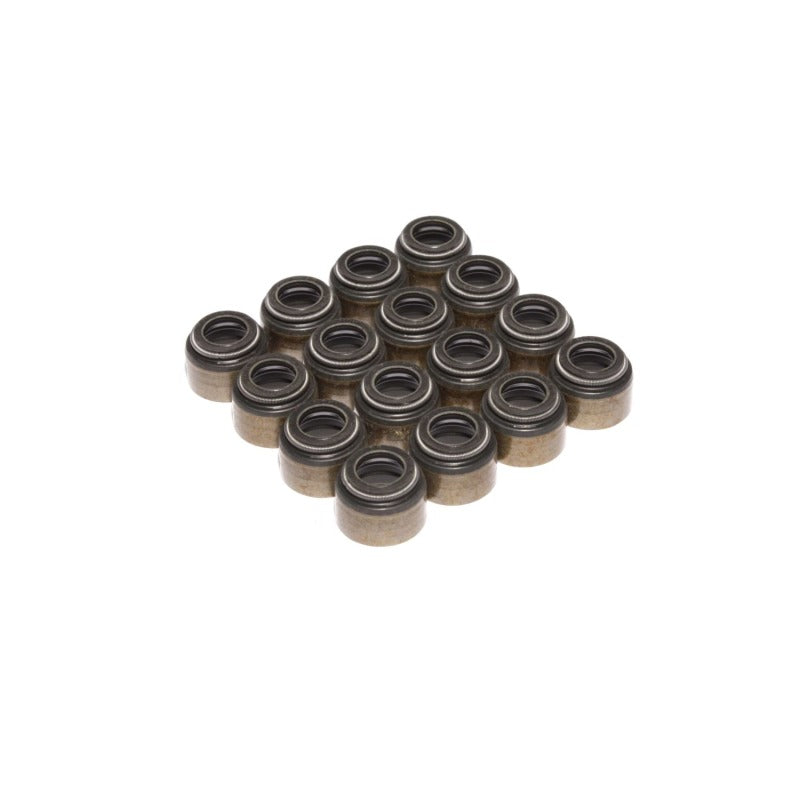

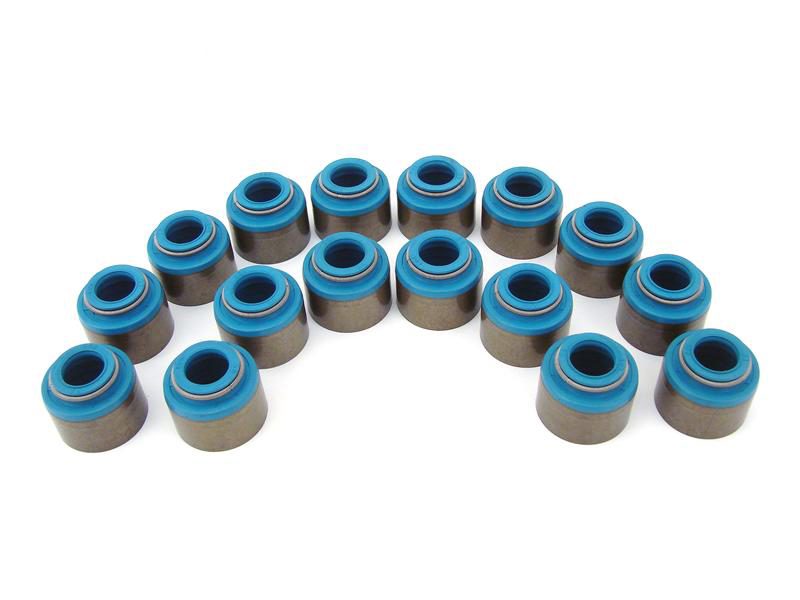

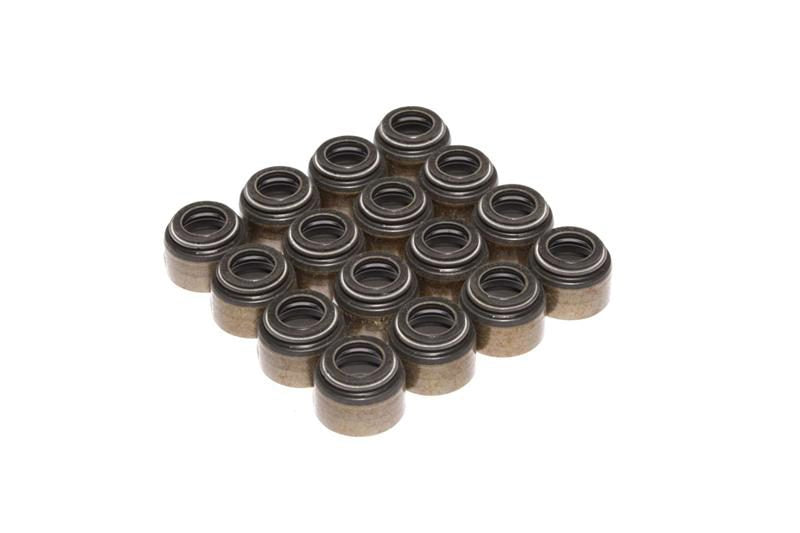

COMP Cams 506-16 - Valve Seals 11/32in Stem

Valve Stem Seal - Positive Stop - 11/32 in Valve Stem - 0.494 in Guide - Viton Rubber - Set of 16

Providing the best sealing properties and spring clearance, viton valve seals are an excellent choice in performance applications. The 506 seals have a .610" OD and fit applications with 11/32" valves and .494" OD guides.

COMP Cams offers a complete line of valve stem Seals, from the stock GM "O-Ring" to the positive-stop PTFE Seal. These Seals are a must to keep unwanted oil from entering the combustion chamber through the clearance in the valve guides. The "O-Ring" Seals use the standard retainer and oil splash shield. The umbrella Seal is normally used when a larger-than-stock diameter spring is used, in the case of a double spring, the positive-stop PTFE Seal is used. We also have a smaller diameter Viton Seal available for triple spring Applications.

Seal Outer Diameter: 0.61
Valve Guide Outer Diameter: 0.494
Valve Seal Type: Black Viton
Valve Stem Outer Diameter: 11/32
Amazon ASIN: B000CIQ9X2
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
