COMP Cams 4769-1 - Spring Seat Cup For 1.500in Sp

COMP Cams  |  SKU: COMP-4769-1
$2299 $2529

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

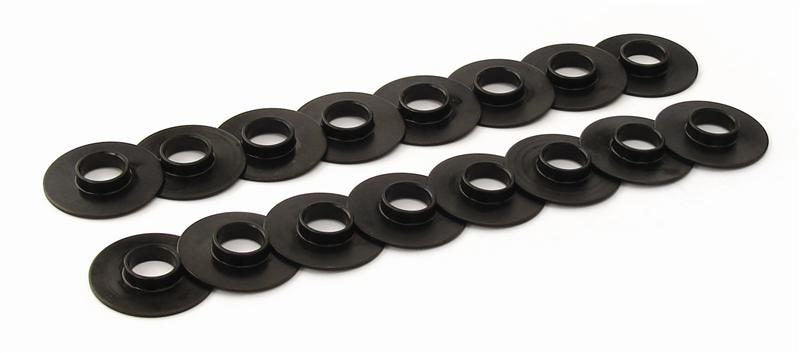

COMP Cams 4769-1 - Spring Seat Cup For 1.500in Sp

OD Spring Locator - 1.635" OD, .640" ID, .060" Thickness

Constructed from hardened steel alloy, COMP's locator cup handles high RPM and extreme spring pressures while holding the spring. Our 4769 features a 1.635" OD with a .640" ID that works with our 901, 26956, 26957, and 26955 springs.

The old standard shims will not hold up to the extreme spring pressures and high RPM found in racing engines being built today. COMP Cams offers a simple but effective solution to this problem and a thin, hardened Steel alloy seat which will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup. Many sizes are available to locate from the inside or outside diameter.

Locator Inner Diameter: 0.64
Locator Outer Diameter: 1.635
Spring Outer Diameter: 1.515
Amazon ASIN: B0066SU1MC
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Inside Diameter: .640"
Outside Diameter: 1.635
Spring Inside Diameter: 1.515"
Locator Thickness: .060"
