COMP Cams 4713-16 - Spring Seats Cnc .100X.535X1

COMP Cams  |  SKU: COMP-4713-16
$8899 $9789

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

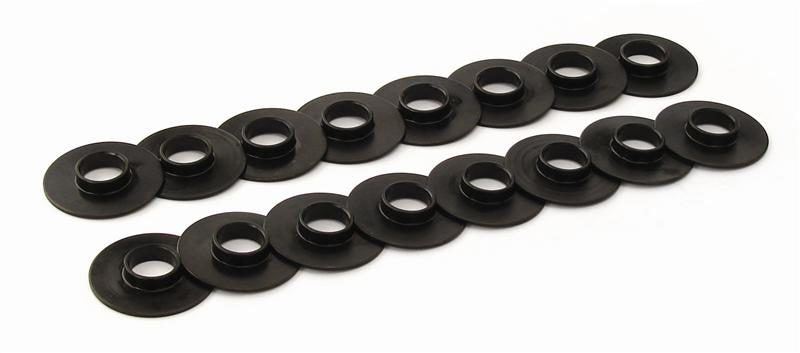

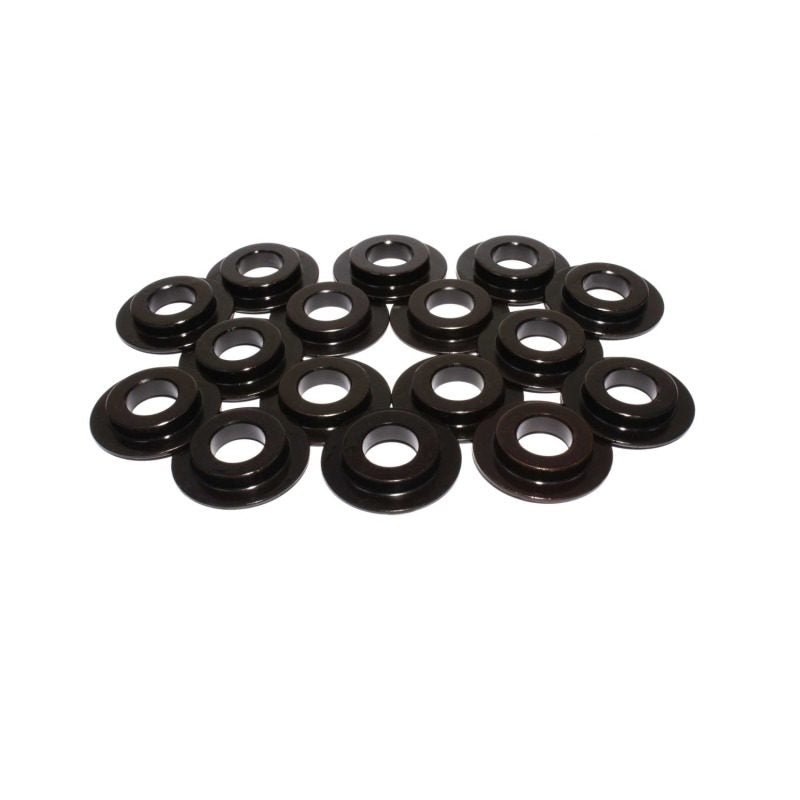

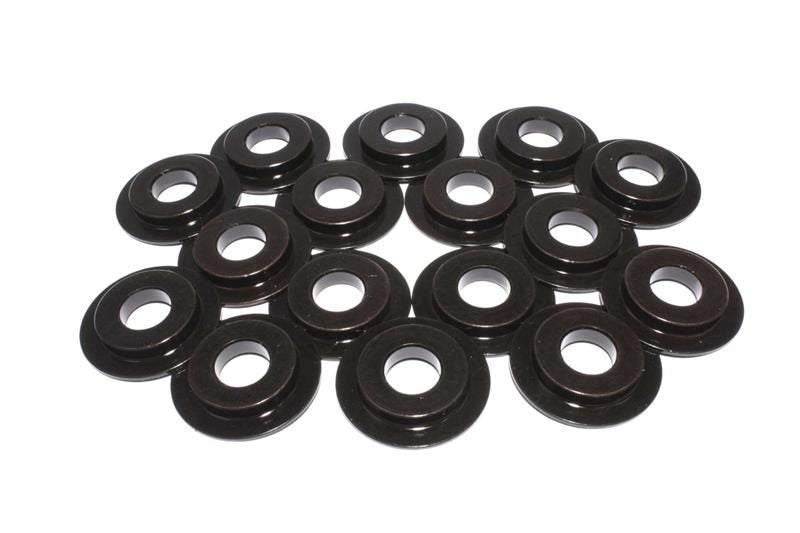

COMP Cams 4713-16 - Spring Seats Cnc .100X.535X1

ID Spring Locator Set of 16 - 1.565" OD, .535" ID, .100" Thickness

Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4713 features a 1.565" OD and a .535" ID.

The old standard shims will not hold up to the extreme spring pressures and high RPM in today's race engines. COMP Cams offers a simple but effective solution to this problem. These Valve Spring Locators provide a thin, hardened Steel alloy seat that will not only protect the head and shim, but also locate and hold the spring in place. Previously, this part has been available only in a cup form with the retaining portion being on the outside of the part. This required that the head be machined a great deal to accept this cup so COMP now offers an ID locator with the locating shoulder on the inside, as well as the spring cup.

Locator Inner Diameter: 0.535
Locator Outer Diameter: 1.565
Spring Inner Diameter: 1.125
Amazon ASIN: B002EE089I
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Inside Diameter: .535"
Outside Diameter: 1.565
Spring Inside Diameter: 1.125"
Locator Thickness: .100"
