COMP Cams 4641-16 - Id Spring Seat Set, For 26547 Spring W/ .520In Dia Guide
COMP Cams | SKU:
COMP-4641-16
Sale price
$8699
Regular price
$9569
Unit price
/
Unavailable
$8.70 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

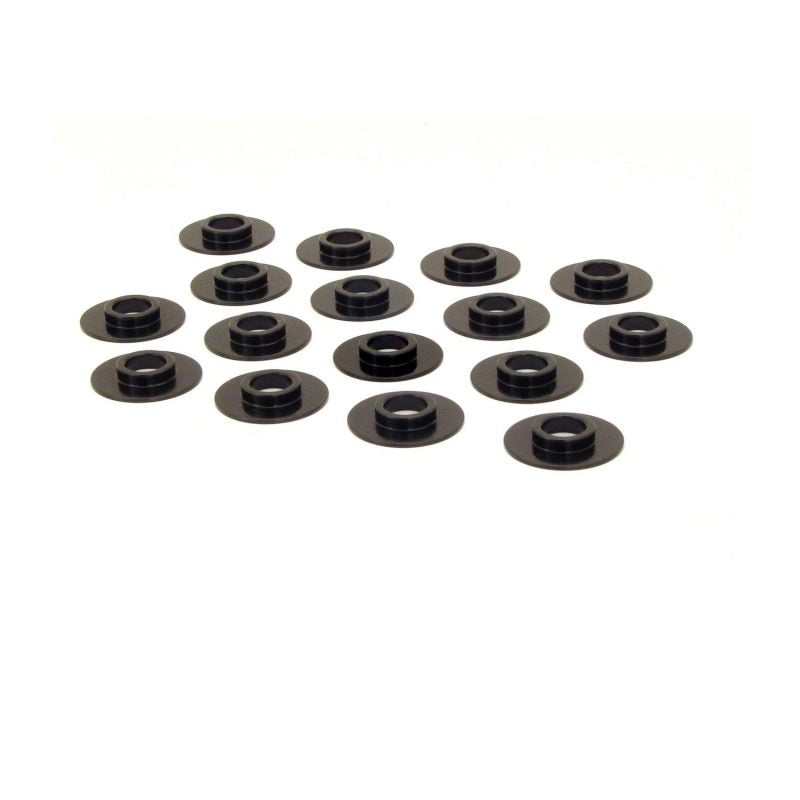

COMP Cams 4641-16 - Id Spring Seat Set, For 26547 Spring W/ .520In Dia Guide
ID Spring Locator Set of 16 - 1.540" OD, .520" ID, .060" Thickness
Made from hardened steel, these locators use an inboard locating shoulder to center the seat and hold the spring in place. The 4641 features a 1.540" OD and a .520" ID that works well with our 26947 dual valve springs.
ID Spring Locator Set of 16 - 1.540" OD, .520" ID, .060" Thickness
Locator Inner Diameter: 0.520
Locator Outer Diameter: 1.540
Locator Thickness: 0.060
Overall Height: 0.245
Step Outside Diameter: 0.775
Compatible Valve Springs: 26547-16
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
