COMP Cams 35-871-13 - Camshaft FW 277DHR-11
COMP Cams | SKU:
COMP-35-871-13
Sale price
$60395
Regular price
$66434
Unit price
/
Unavailable
$60.39 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
AVAILABILITY: This Item Is Out Of Stock.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

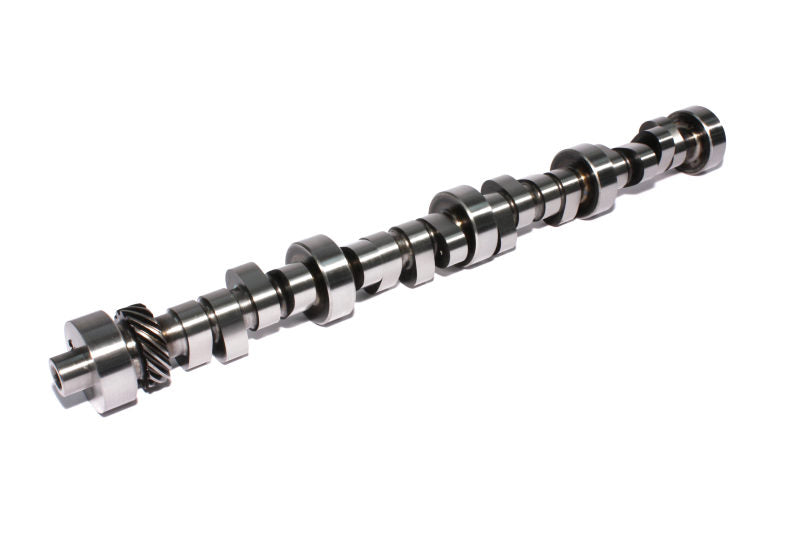

COMP Cams 35-871-13 - Camshaft FW 277DHR-11
Street/Strip EFI 227/238 Hydraulic Roller Cam for Ford 5.0L
306-347c.i. with 160-180cc head, 9.25:1-10:1 compression. Needs intake upgrade, tuning required.
Street/Strip EFI 227/238 Hydraulic Roller Cam
Camshaft Series: Street/Strip EFI
Usage: Street/Strip
Cam Type: Hydraulic Roller
Grind Number: 277DHR-11
Basic Operating RPM Range: 2,500-6,000
Intake Duration at .050 Inch Lift: 227
Exhaust Duration at .050 inch Lift: 238
Advertised Intake Duration: 277
Advertised Exhaust Duration: 290
Lobe Separation: 111
Intake Valve Lift: 0.577
Exhaust Valve Lift: 0.579
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford 5.0L (1985-2002)
Lifter Type: Hydraulic Roller
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 277DHR-11
