COMP Cams 35-328-8 - Camshaft FW XE276HR-12

COMP Cams  |  SKU: COMP-35-328-8
$58299 $64129

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

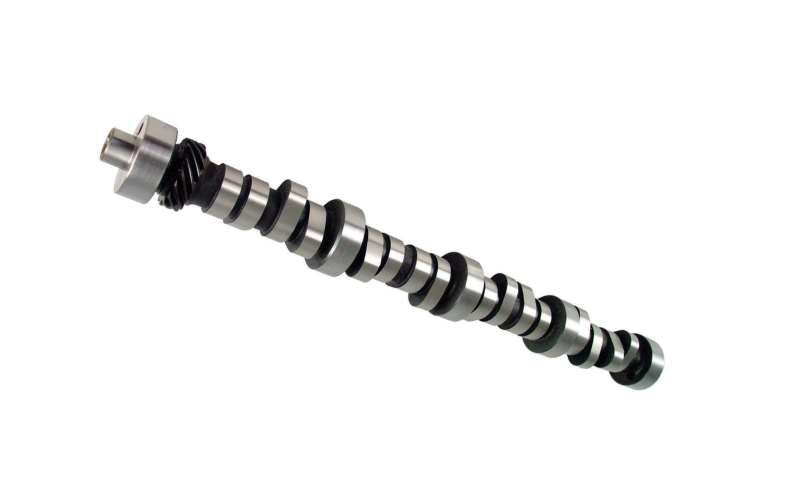

COMP Cams 35-328-8 - Camshaft FW XE276HR-12

Xtreme Energy Computer Controlled 224/230 Cam for Ford 5.0L

For use with 1.7:1 rockers. Major modifications, 3.55 gear or lower, 2500+ stall.

Xtreme Energy Computer Controlled 224/230 Cam for Ford 5.0L (For EFI) with 1.7:1 Rockers. Major modifications. 3.55 Gear or lower, 2500+ stall. NOTE: for 1985-95 Engines O.E. with Hydraulic Roller Cam.

SK-Kit Upgrade: SK35-328-8
Amazon ASIN: B001R9BSOK
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE276HR
Camshaft Series: Xtreme Energy Computer Controlled
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: XE276HR
Basic Operating RPM Range: 2,200-6,200
Intake Duration at .050 Inch Lift: 224
Exhaust Duration at .050 inch Lift: 230
Advertised Intake Duration: 276
Advertised Exhaust Duration: 282
Lobe Separation: 112
Intake Valve Lift: 0.544
Exhaust Valve Lift: 0.544
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: No
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Austempered Ductile Iron
Engine Family: Ford 5.0L (1985-2002)
Cam and Lifter Kit Upgrade: CL35-328-8
K-Kit Upgrade: K35-328-8
Lifter Type: Hydraulic Roller
