COMP Cams 34-255-5 - Camshaft FF XE256 H14
COMP Cams | SKU:
COMP-34-255-5
Sale price
$32595
Regular price
$35854
Unit price
/
Unavailable
$32.59 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

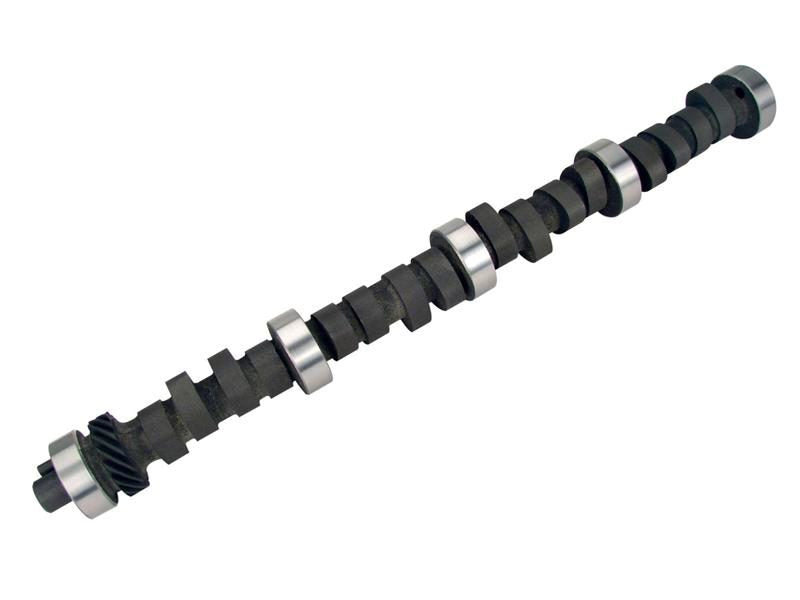

COMP Cams 34-255-5 - Camshaft FF XE256 H14
Camshaft - Computer Controlled - Hydraulic Flat Tappet - Lift 0.490 / 0.495 in - Duration 256 / 268 - 114 LSA - 1000 / 5200 RPM - Big Block Ford - Each
EFI speed density, works with stock computer. Very strong torque, excellent mileage, good idle quality.
Xtreme Energy Computer Controlled Hydraulic Flat Tappet Cam for Ford 429, 460. EFI Speed density. Works with stock computer. Very strong torque and excellent mileage with good idle quality.
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Engine Family: Ford 429, 460 c.i. 8 Cylinder (1968-1995)
Lifter Type: Hydraulic Flat Tappet
Amazon ASIN: B0014EXK6C
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XE256H-14
Camshaft Series: Xtreme Energy Computer Controlled
Usage: OEM
Cam Type: Hydraulic Flat Tappet
Grind Number: XE256H-14
Basic Operating RPM Range: 1,000-5,200
Intake Duration at .050 Inch Lift: 212
Exhaust Duration at .050 inch Lift: 219
Advertised Intake Duration: 256
Advertised Exhaust Duration: 268
Lobe Separation: 114
Intake Valve Lift: 0.49
Exhaust Valve Lift: 0.495
