COMP Cams 33-246-4 - Camshaft FB 294S-10
COMP Cams | SKU:
COMP-33-246-4
Sale price
$31099
Regular price
$34209
Unit price
/
Unavailable
$31.10 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

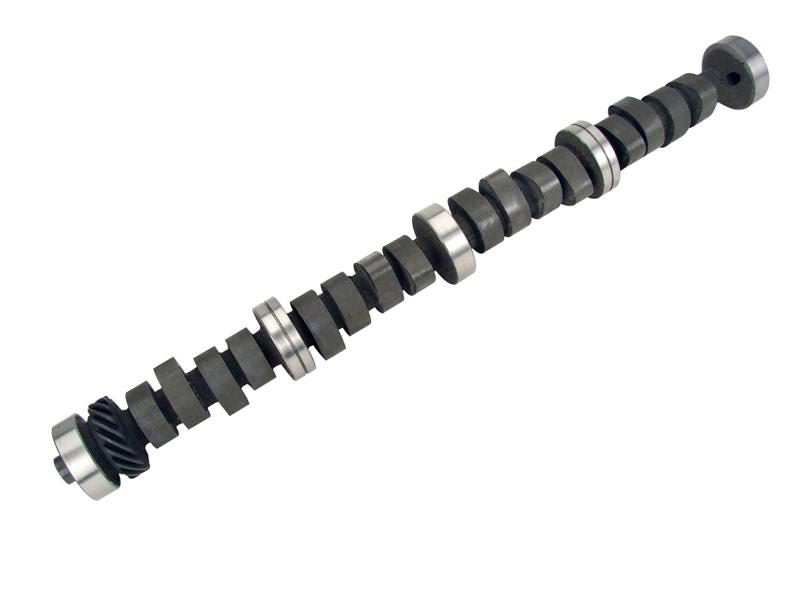

COMP Cams 33-246-4 - Camshaft FB 294S-10
Camshaft - Magnum - Mechanical Flat Tappet - Lift 0.605 / 0.605 in - Duration 294 / 294 - 110 LSA - 2500 / 6500 RPM - Ford FE-Series - Each
Solid: Good for street/strip cars. Use 10:1+ compression, low Gears, 3000+ stall or 4 speed. Very rough idle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 294S
Camshaft Series: Magnum
Usage: Street/Strip
Cam Type: Solid Flat Tappet
Grind Number: 294S
Basic Operating RPM Range: 2,500-6,500
Intake Duration at .050 Inch Lift: 248
Exhaust Duration at .050 inch Lift: 248
Advertised Intake Duration: 294
Advertised Exhaust Duration: 294
Lobe Separation: 110
Intake Valve Lift: 0.605
Exhaust Valve Lift: 0.605
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Engine Family: Ford 352-428 c.i. 8 Cylinder (1963-1977)
Cam and Lifter Kit Upgrade: CL33-246-4
K-Kit Upgrade: K33-246-4
Lifter Type: Solid Flat Tappet
SK-Kit Upgrade: SK33-246-4
Amazon ASIN: B002APQV74
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
