COMP Cams 32-235-4 - Camshaft FC 305H-10
COMP Cams | SKU:
COMP-32-235-4
Sale price
$31099
Regular price
$34209
Unit price
/
Unavailable
$31.10 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

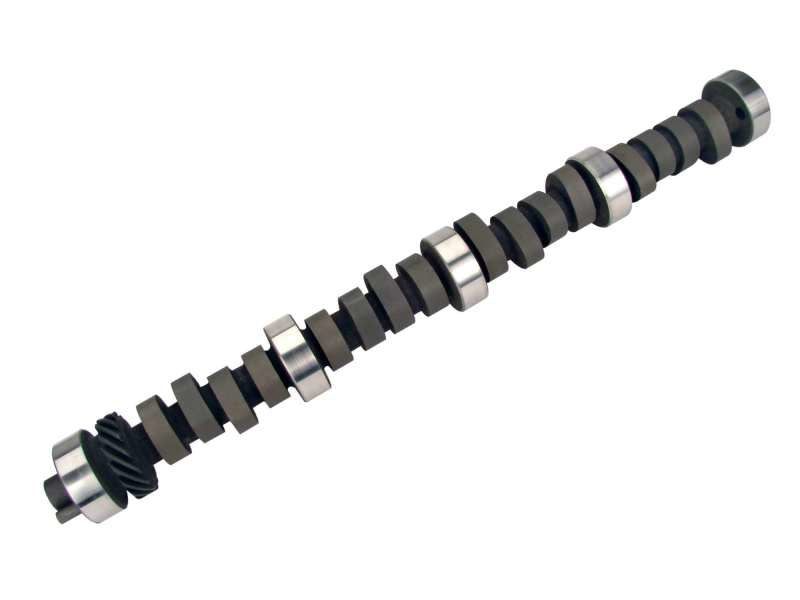

COMP Cams 32-235-4 - Camshaft FC 305H-10
Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 351C, 351M-400M
Bracket race/limited street use, 3500+ stall, 11:1 compression, radical idle. Good torque in heavy car. 3500+ stall or 4 speed, 10:1 compression.
Hydraulic: Bracket race/ limited street use. 3500+ stall, 11:1 compression, radical rough idle.
Cam Type: Hydraulic Flat Tappet
Grind Number: 305H
Basic Operating RPM Range: 3,000-7000
Intake Duration at .050 Inch Lift: 253
Exhaust Duration at .050 inch Lift: 253
Advertised Intake Duration: 305
Advertised Exhaust Duration: 305
Lobe Separation: 110
Intake Valve Lift: 0.585
Exhaust Valve Lift: 0.585
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Engine Family: Ford 351C, 351M-400M 8 Cylinder (1970-1983)
Cam and Lifter Kit Upgrade: CL32-235-4
K-Kit Upgrade: K32-235-4
Lifter Type: Hydraulic Flat Tappet
SK-Kit Upgrade: SK32-235-4
Amazon ASIN: B000P5DCP0
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: 305H
Camshaft Series: Magnum
Usage: Street/Strip
