COMP Cams 307-500-9 - Mega 8 Hi-Lift 240/250 Hydraulic Roller Camshaft for Harley-Davidson Milwaukee 8
COMP Cams | SKU:
COMP-307-500-9
Sale price
$30399
Regular price
$33439
Unit price
/
Unavailable
$30.40 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

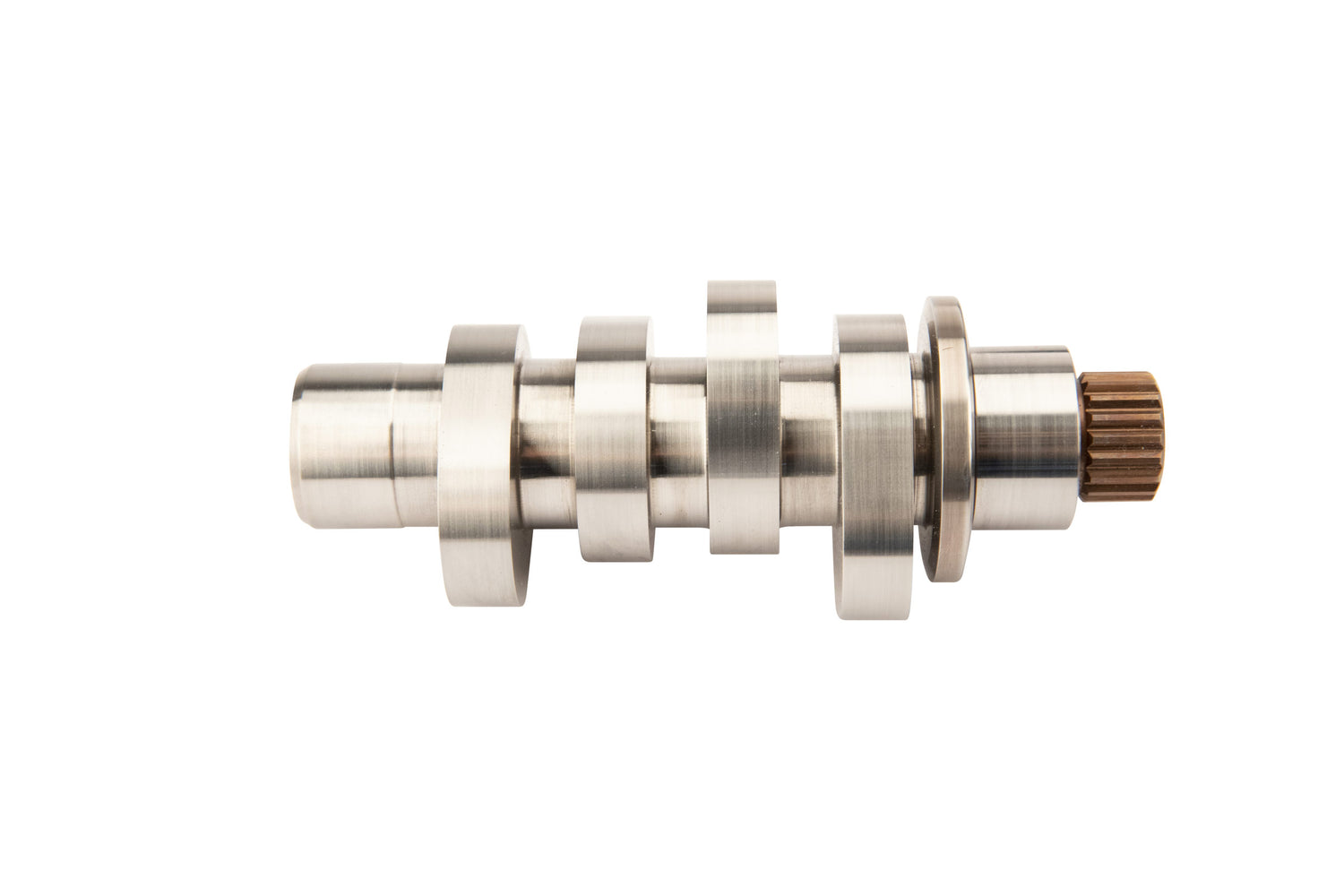

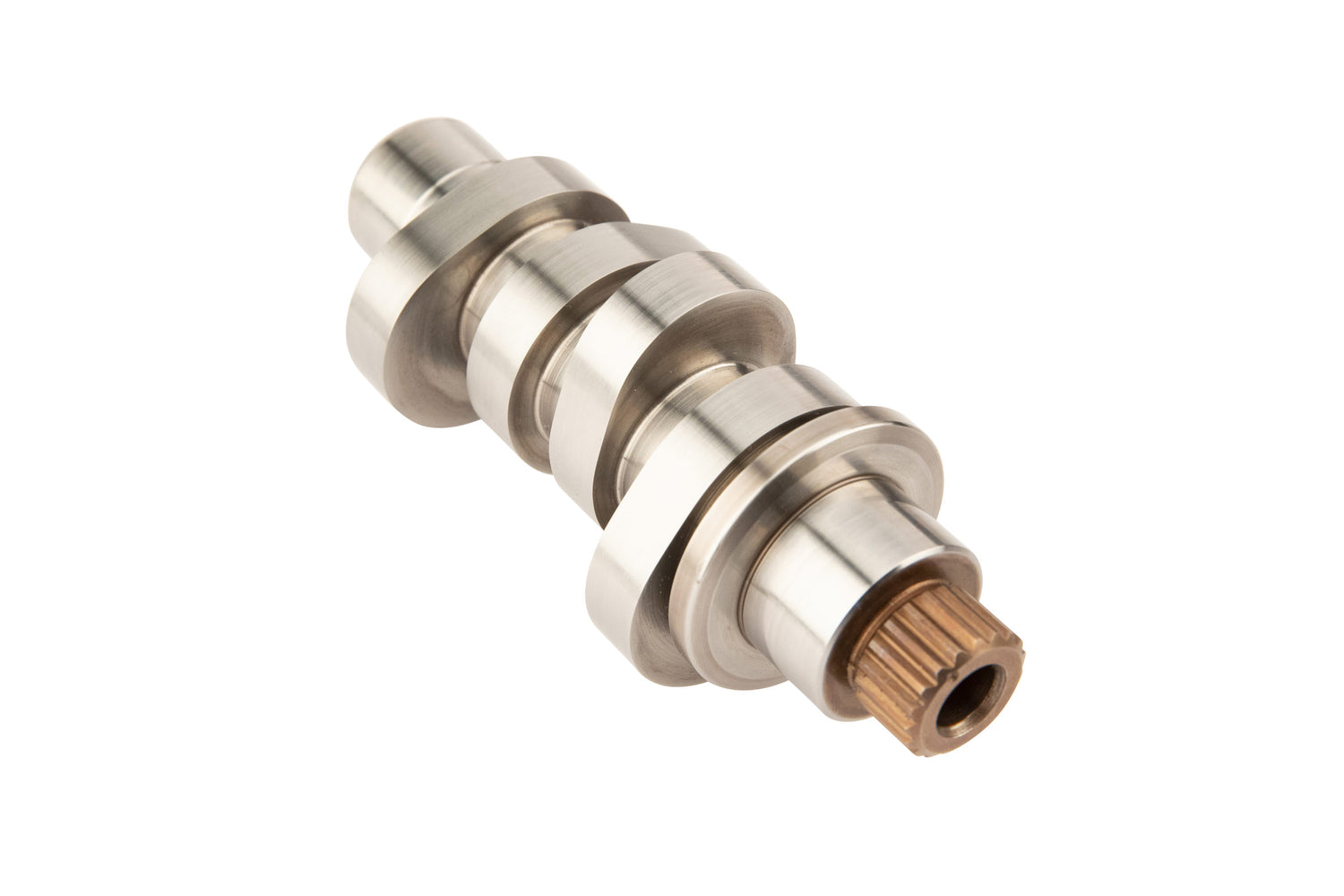

COMP Cams 307-500-9 - Mega 8 Hi-Lift 240/250 Hydraulic Roller Camshaft for Harley-Davidson Milwaukee 8
Mega 8 Hi-Lift 240/250 Hydraulic Roller Camshaft for Harley Davidson Milwaukee 8
Big TQ and top gains with over 132+ HP using Ported heads , performance exhaust, Intake system
Mega 8 "Best Cam High Performance" 114 c.i.d. kits. Big torque and top gains with over 132+ HP using ported heads, performance exhaust, intake system.
- Gross Valve Lift: .522 In/.522 Ex
- Valve Lift @ TDC: .172 In/.145 Ex
- Tappet Lift @ TDC: .108 In/.091 Ex
- Lobe Lift: .326 In/.326 Ex
- Duration @ .053: 240 In/250 Ex
- Valve Timing Open/Close: 18 In/42 Ex Open and 56 In/14 Ex Close
- Int. Centerline: 102 In/111 Ex
- Lobe Sep.: 106.5
Lifter Type: Hydraulic Roller
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Camshaft Series: Mega 8 Hi-Lift
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: M8 240C
Basic Operating RPM Range: 1800-6000
Intake Duration at .053 Inch Lift: 240
Exhaust Duration at .053 Inch Lift: 250
Lobe Separation: 106.5
Intake Valve Lift: 0.522
Exhaust Valve Lift: 0.485
Lifters Included: No
Valve Springs Required: Yes
Camshaft Gear Attachment: 1-Bolt
Assembly Lubricant Included: Yes
Camshaft Material: 8620 Steel
Engine Family: Milwaukee 8
