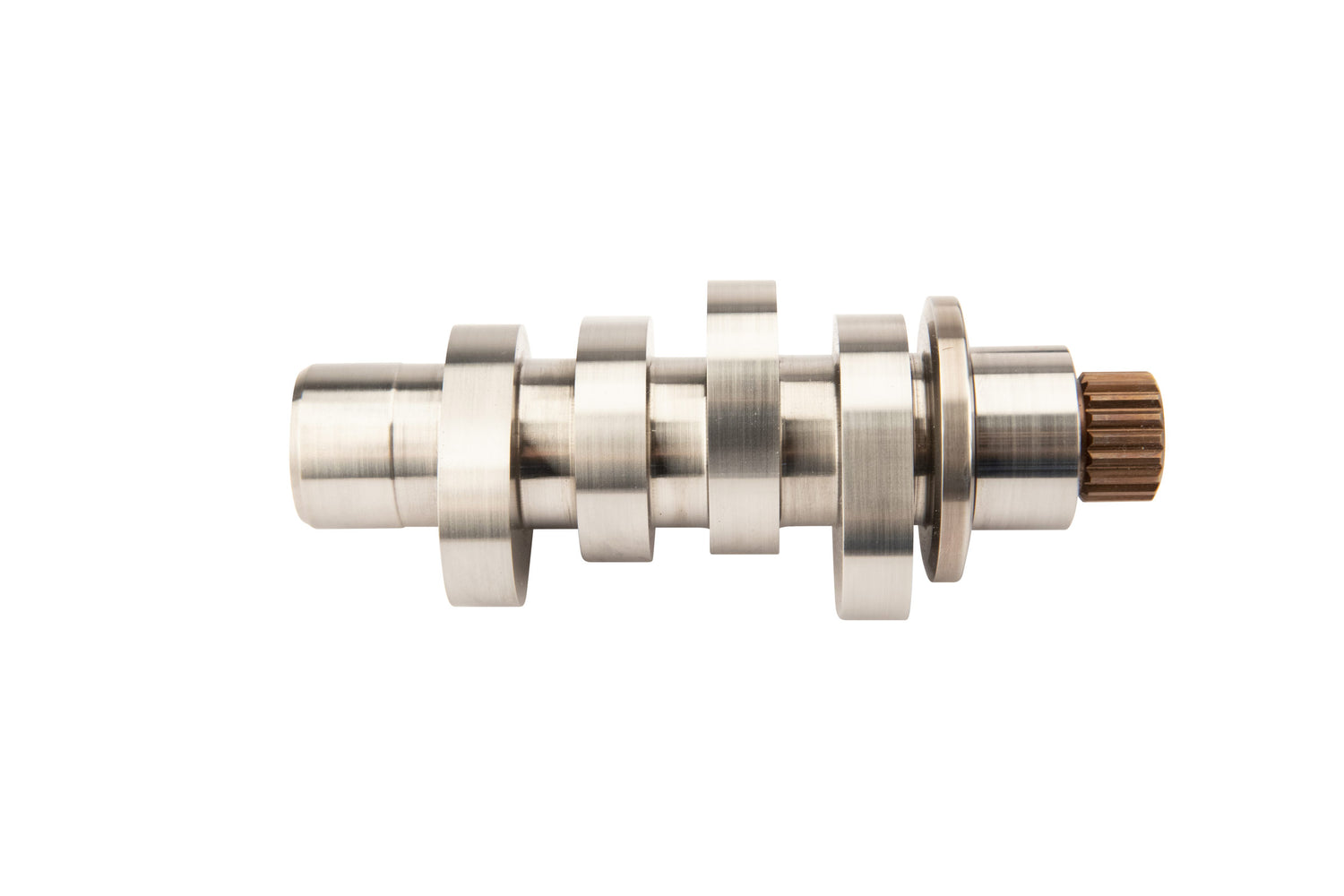

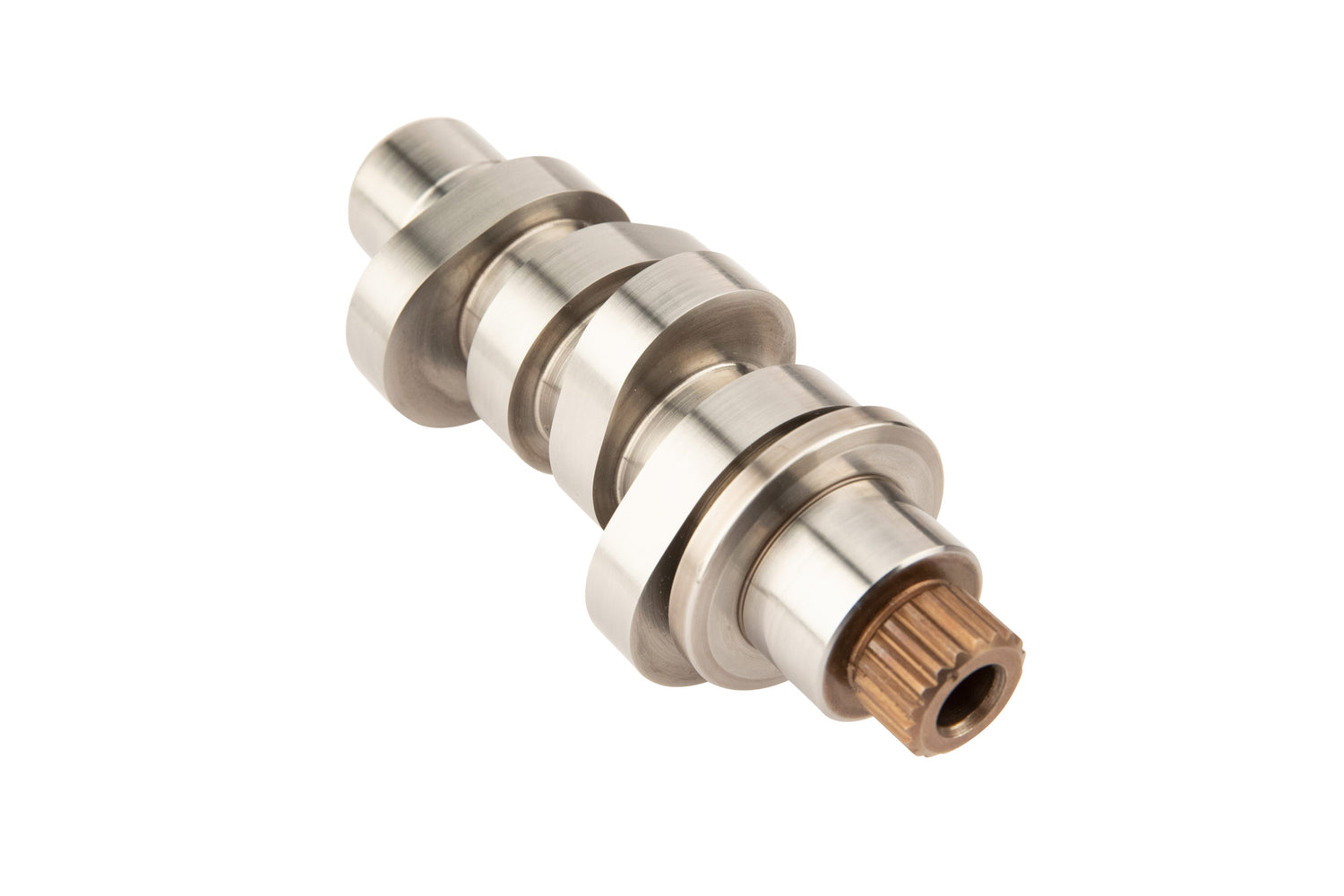

COMP Cams 307-103-9 - Camshaft, Hd M8 M8 238A
COMP Cams | SKU:
COMP-307-103-9
Sale price
$30399
Regular price
$33439
Unit price
/
Unavailable
$30.40 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams 307-103-9 - Camshaft, Hd M8 M8 238A
Mega 8 238/248 Hydraulic Roller Camshaft for Harley Davidson Milwaukee 8
Big TQ and top gains with Ported heads , performance exhaust, Intake system
Mega 8 "Best Cam High Performance" for 114 c.i.d. Big torque and top gains with ported heads, performance exhaust, intake system.
- Gross Valve Lift: .472 In/.472 Ex
- Valve Lift @ TDC: .163 In/.139 Ex
- Tappet Lift @ TDC: .102 In/.087 Ex
- Lobe Lift: .295 In/.295 Ex
- Duration @ .053: 238 In/248 Ex
- Valve Timing Open/Close: 18 In/41 Ex Open and 56 In/13 Ex Close
- Int. Centerline: 101.5 In/111.5 Ex
- Lobe Sep.: 106.5
Camshaft Series: Mega 8
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: M8 238A
Basic Operating RPM Range: 2000-6400
Intake Duration at .053 Inch Lift: 238
Exhaust Duration at .053 Inch Lift: 248
Lobe Separation: 106.5
Intake Valve Lift: 0.472
Exhaust Valve Lift: 0.472
Lifters Included: No
Valve Springs Required: No
Camshaft Gear Attachment: 1-Bolt
Assembly Lubricant Included: Yes
Camshaft Material: 8620 Steel
Engine Family: Milwaukee 8
Lifter Type: Hydraulic Roller
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
