COMP Cams 307-101-9 - Camshaft, Hd M8

COMP Cams  |  SKU: COMP-307-101-9
$30399 $33439

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

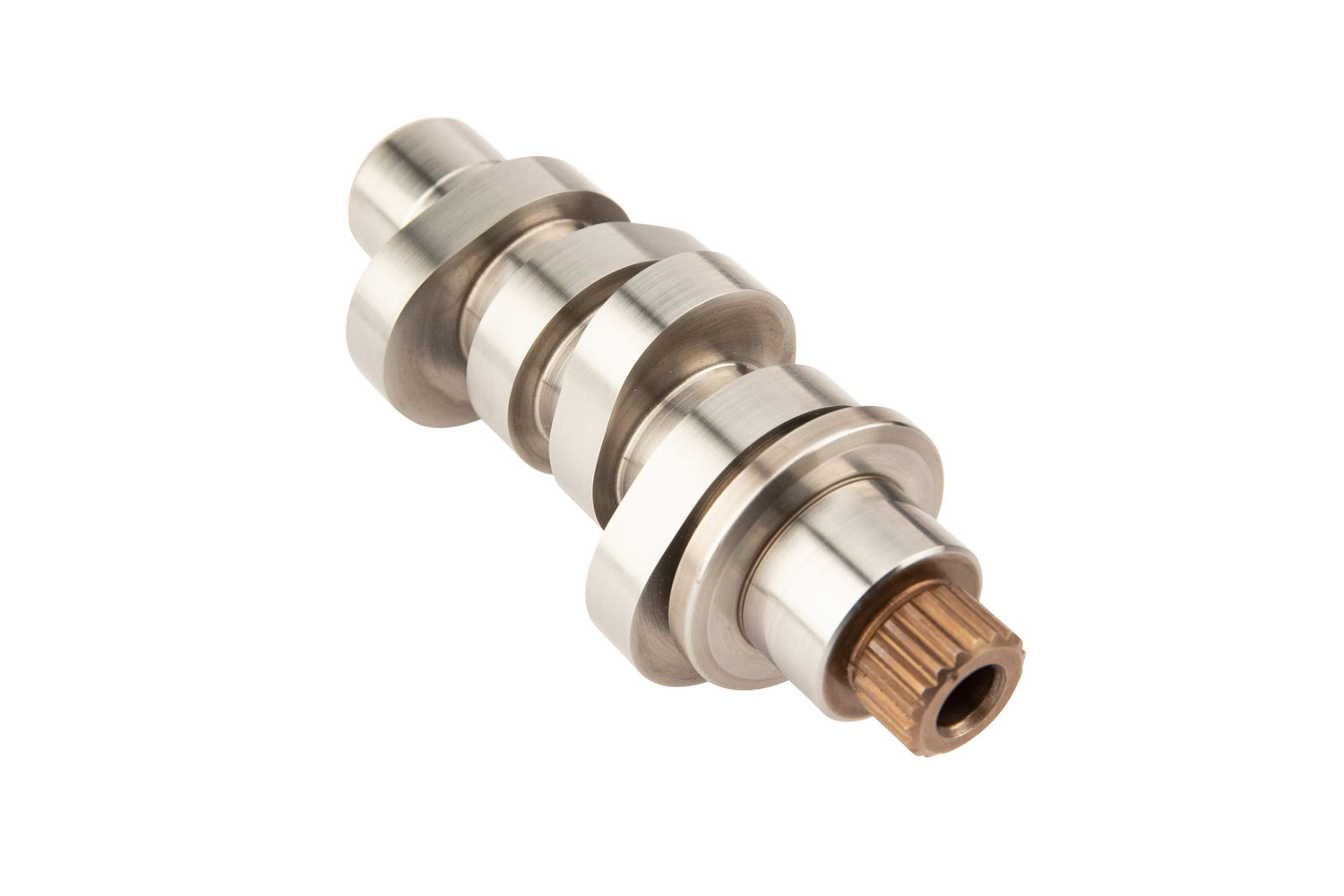

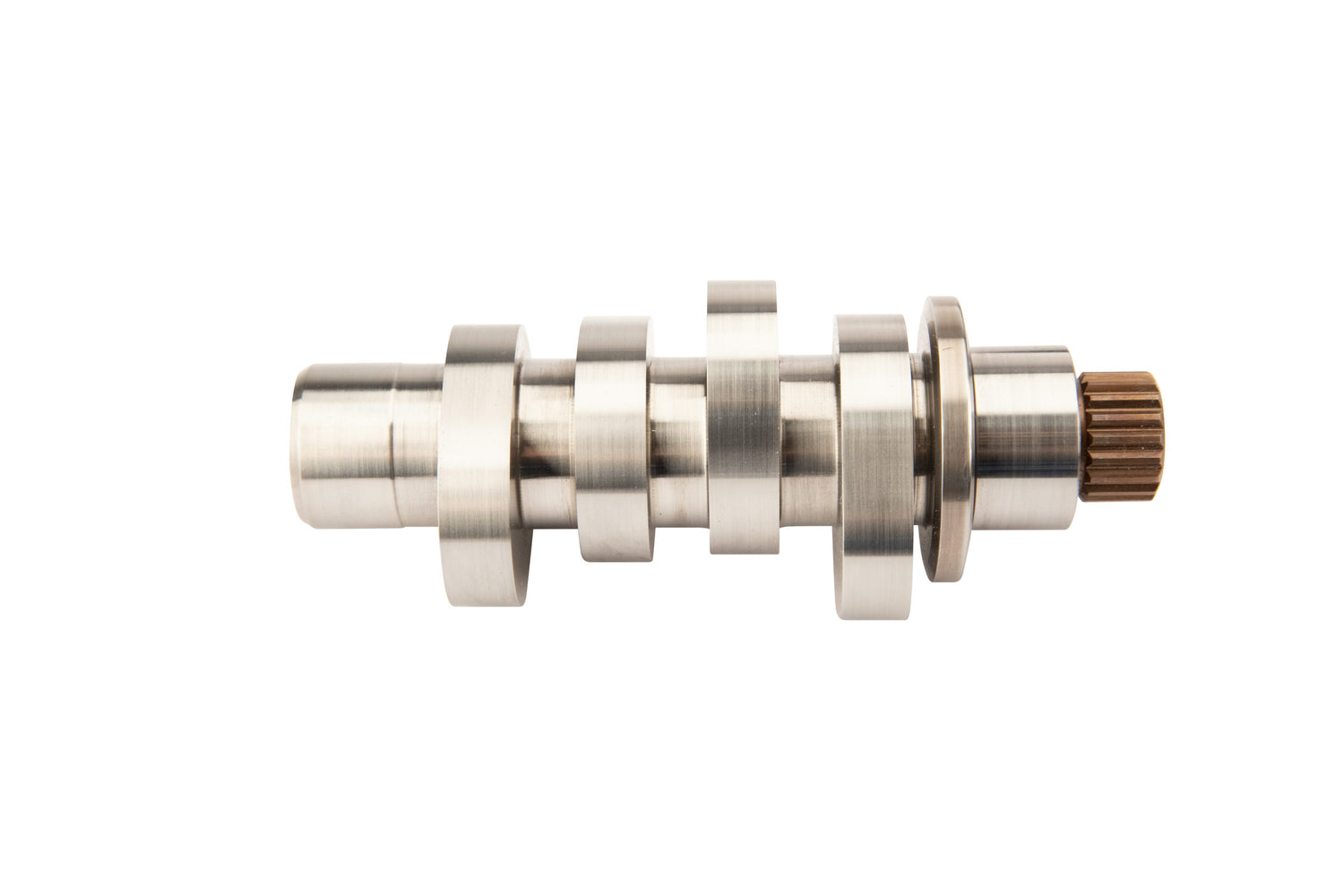

COMP Cams 307-101-9 - Camshaft, Hd M8

Mega 8 230/232 Hydraulic Roller Camshaft for Harley Davidson Milwaukee 8

Mega 8 Bolt in cam for 107CI-114CI. Most powerful camshaft you can install on 107 CI making big mid-range and monster HP to 6000 RPM . 114CI has very strong mid range with pulling power to 5600RPM.

Mega 8 bolt-in Cam for 107 c.i.d. -114 c.i.d. Most powerful Camshaft you can install on 107 c.i.d. making Big mid-range and monster horsepower to 6000 RPM. 114 c.i.d. has very strong mid-range with pulling power to 5600 RPM.

  • Gross Valve Lift: .472 In/.472 Ex
  • Valve Lift @ TDC: .174 In/.139 Ex
  • Tappet Lift @ TDC: .109 In/.087 Ex
  • Lobe Lift: .295 In/.295 Ex
  • Duration @ .053: 230 In/232 Ex
  • Valve Timing Open/Close: 18 In/32 Ex Open and 39 In/13 Ex Close
  • Int. Centerline: 97 In/103 Ex
  • Lobe Sep.: 100
Camshaft Series: Mega 8
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: TQ230V3
Basic Operating RPM Range: 1800-6200
Intake Duration at .053 Inch Lift: 230
Exhaust Duration at .053 Inch Lift: 232
Lobe Separation: 100
Intake Valve Lift: 0.472
Exhaust Valve Lift: 0.472
Lifters Included: No
Valve Springs Required: No
Camshaft Gear Attachment: 1-Bolt
Assembly Lubricant Included: Yes
Camshaft Material: 8620 Steel
Engine Family: Milwaukee 8
Lifter Type: Hydraulic Roller
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
