COMP Cams 307-100-9 - Harley-Davidson Milwaukee 8 Mega 8 222/232 Hydrauic Roller Camshaft
COMP Cams | SKU:
COMP-307-100-9
Sale price
$30399
Regular price
$33439
Unit price
/
Unavailable
$30.40 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

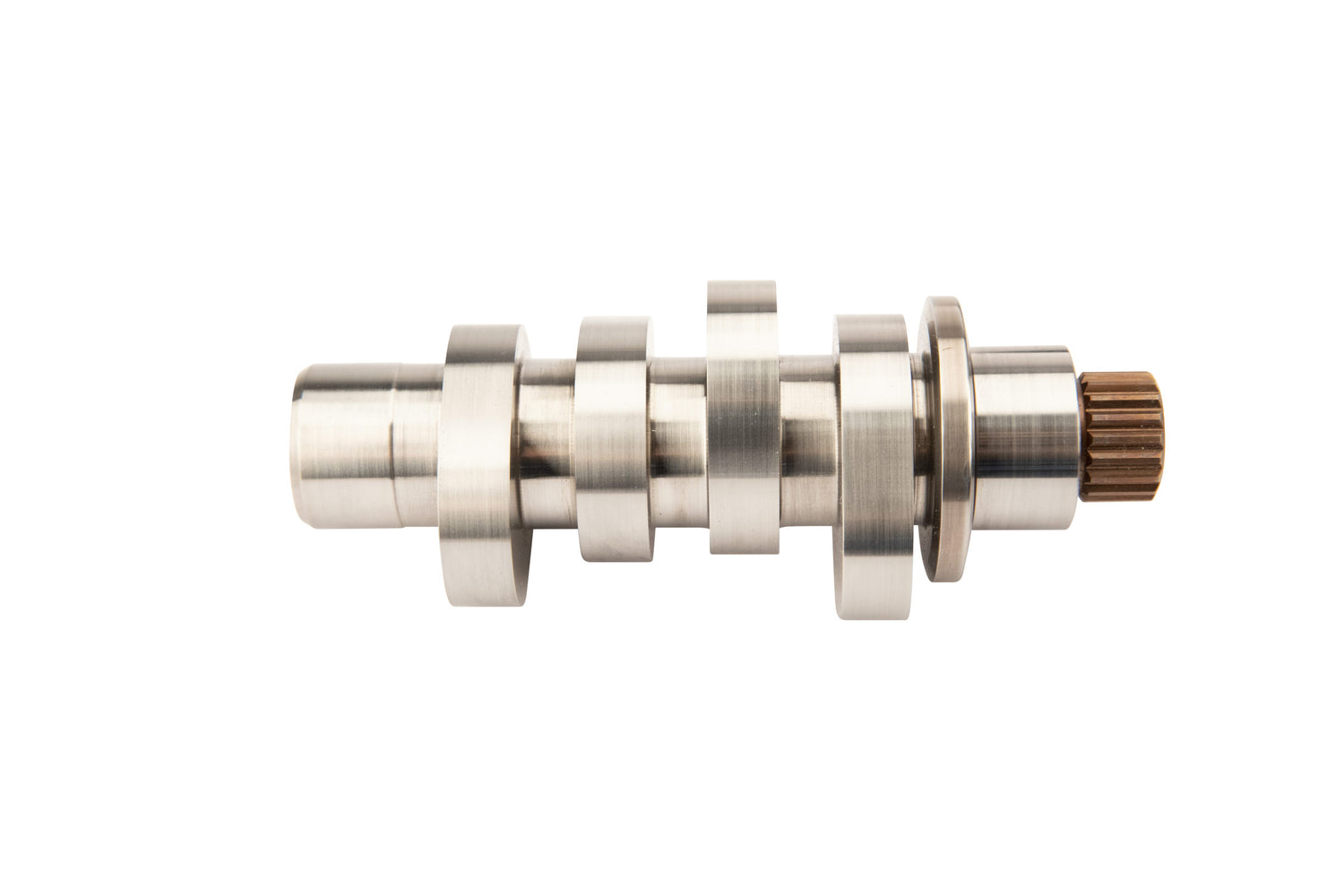

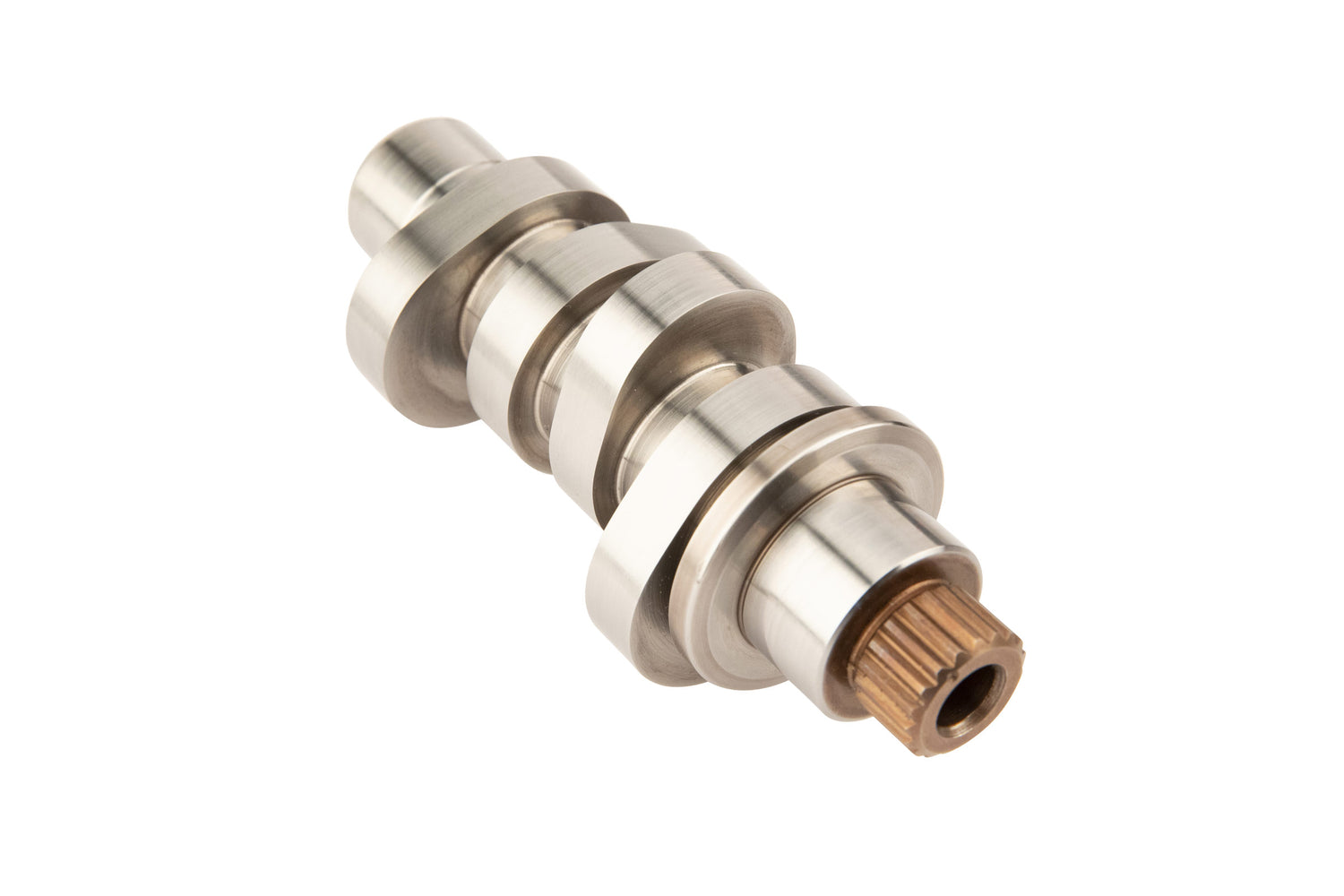

COMP Cams 307-100-9 - Harley-Davidson Milwaukee 8 Mega 8 222/232 Hydrauic Roller Camshaft
Mega 8 222/232 Hydraulic Roller Camshaft for Harley Davidson Milwaukee 8
Mega 8 bolt-in cam for big low-end/mid range pull to red line. Monster torque.
Mega 8 bolt-in Cam for Big low-end/mid range pull on 107 c.i.d. to red line. Monster torque for 114 c.i.d. -117 c.i.
- Gross Valve Lift: .472 In/.472 Ex
- Valve Lift @ TDC: .153 In/.120 Ex
- Tappet Lift @ TDC: .096 In/.075 Ex
- Lobe Lift: .295 In/.295 Ex
- Duration @ .053: 222 In/232 Ex
- Valve Timing Open/Close: 16 In/26 Ex Open and 43 In/9 Ex Close
- Int. Centerline: 95 In/107 Ex
- Lobe Sep.: 101
Camshaft Series: Mega 8
Usage: Street/Performance
Cam Type: Hydraulic Roller
Grind Number: TQ222V1
Basic Operating RPM Range: 1500-6000
Intake Duration at .053 Inch Lift: 222
Exhaust Duration at .053 Inch Lift: 232
Lobe Separation: 101
Intake Valve Lift: 0.472
Exhaust Valve Lift: 0.472
Lifters Included: No
Valve Springs Required: No
Camshaft Gear Attachment: 1-Bolt
Assembly Lubricant Included: Yes
Camshaft Material: 8620 Steel
Engine Family: Milwaukee 8
Lifter Type: Hydraulic Roller
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
