COMP Cams 26986MCS-KIT - Spring Kit, Hyd Flat Tappet, Magnum 5.2L/5.9L Head

COMP Cams  |  SKU: COMP-26986MCS-KIT
$36295 $39924

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

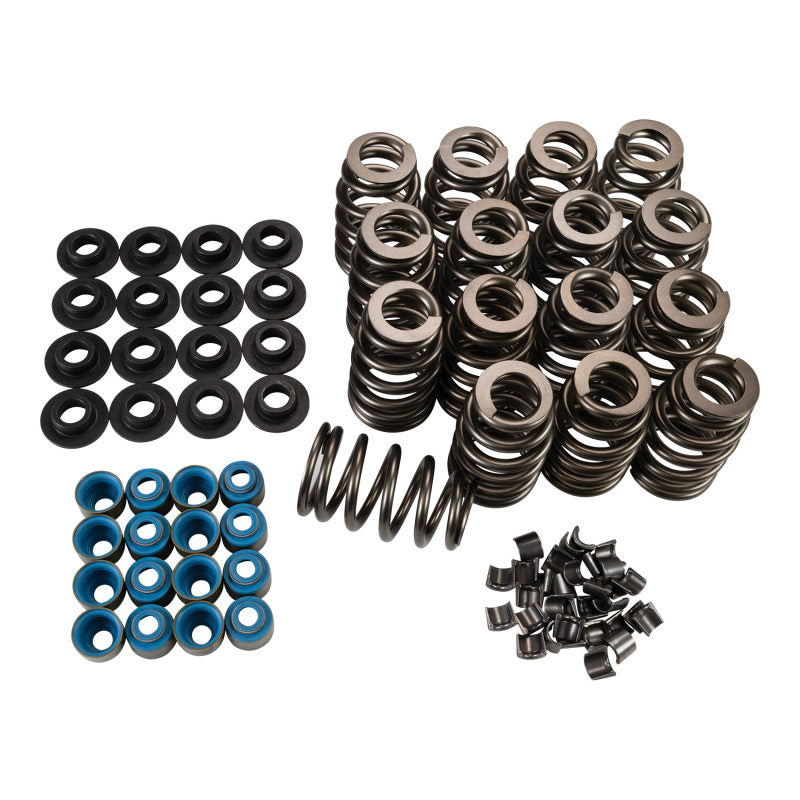

COMP Cams 26986MCS-KIT - Spring Kit, Hyd Flat Tappet, Magnum 5.2L/5.9L Head

Drop-In Valve Spring Kit for Magnum 5.2L / 5.9L Heads with .500" Max Lift

COMP Cams Magnum 5.2L/5.9L Drop-in Valve Spring Kit is designed to maximize the potential of Magnum Cylinder Heads. Allowing up to .500" of lift, this kit provides spring rates that can handle significantly more aggressive lobe profiles. Designed to drop right onto stock Magnum 5.2L/5.9L cylinder heads, it includes beehive valve springs, retainers, and Metal-body Viton valve Seals while using stock valve locks. By combining quality components in a package that does not require any machining, the kit is developed to make your valve train upgrade as easy as possible!

  • No Machining Required!
  • Includes beehive springs, retainers, and metal body Viton valve seals
Valve Spring Style: Beehive
Spring Shape: Beehive
Number of Springs per Valve: 1
Installed Height: 1.6
Load at Installed Height: 165
Open Height (in): 1.100
Installed Pressure: 165
Spring Open Height: 1.100
Load at Open Height (lbs): 305
Open Pressure: 305
Recommended Max Lift (in): 0.500
Top Outside Diameter of Valve Spring (in): 1.065
Bottom Outside Diameter of Valve Spring (in): 1.415
Top Inside Diameter of Valve Spring (in): 0.650
Bottom Inside Diameter of Valve Spring (in): 1.00
Spring Rate: 280
Damper Spring Included: No
Maximum Coil Bind Height (in): 1.060
Valve Spring Finish: Raw
Quantity: 16
Valve Spring Quantity: 16
Material: Steel
