COMP Cams 26981-12 - Valve Springs 1.240in Beehive
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
Description
Description

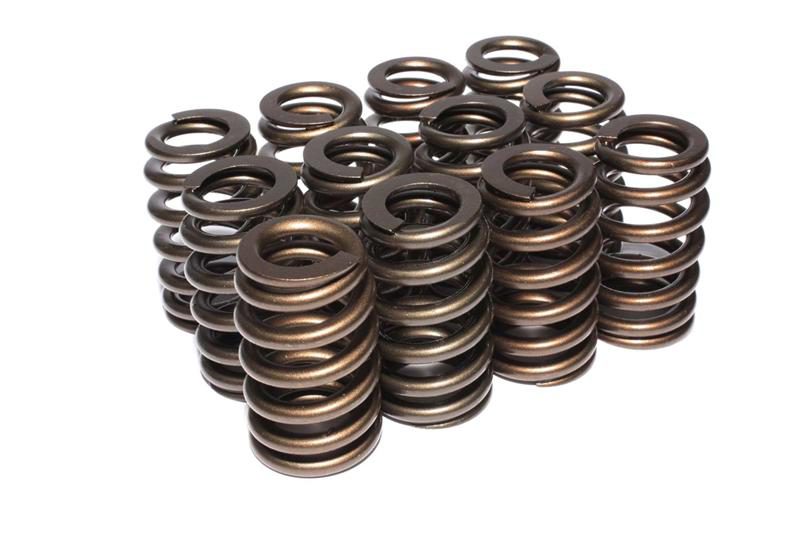

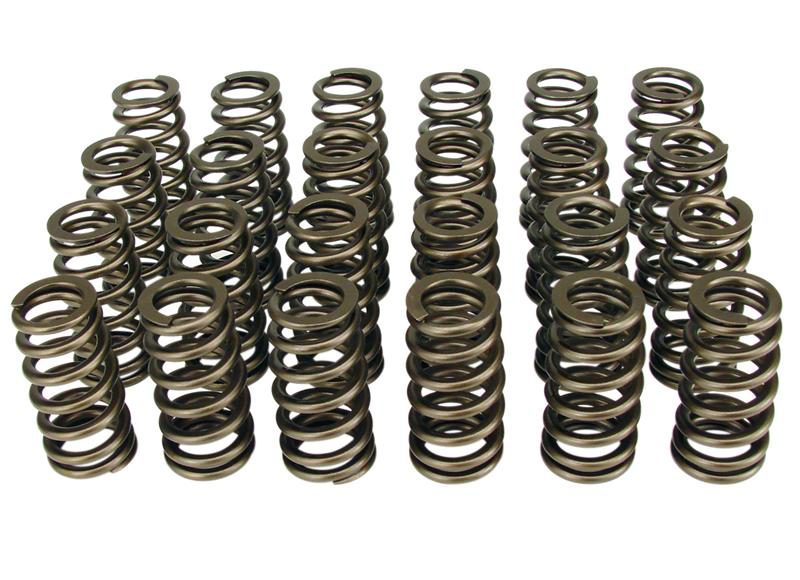

COMP Cams 26981-12 - Valve Springs 1.240in Beehive
Performance Street 1.240" OD Beehive Spring, 1.700" Installed Height, 12 Springs
With a .525" maximum lift, these Beehiveâ„¢ Valve Springs were designed for hydraulic or Solid flat tappet as well as hydraulic Roller cams. They work in most Small Block Chevy heads with no machining. COMP Cams Beehiveâ„¢ Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehiveâ„¢ shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehiveâ„¢ design, the valve train can handle more RPM and more aggressive Camshaft profiles.
| Part # | OD | ID | Seat Load | Open Load | Coil Bind | Rate (Lbs./In.) | Titanium Retainer | Steel Retainer | Cup Seat | Shims | |
| 26981 | Top Bottom | 1.0651.240 | .650.825 | 110 @ 1.700 | 292 @ 1.175 | 1.115 | 347 | 788 | 1787, 787, 795 | 4693 | 4753 |
