COMP Cams 26926-16 - Dual Valve Springs .675in Lift
COMP Cams | SKU:
COMP-26926-16
Sale price
$41199
Regular price
$45319
Unit price
/
Unavailable
$41.20 off
Couldn't load pickup availability

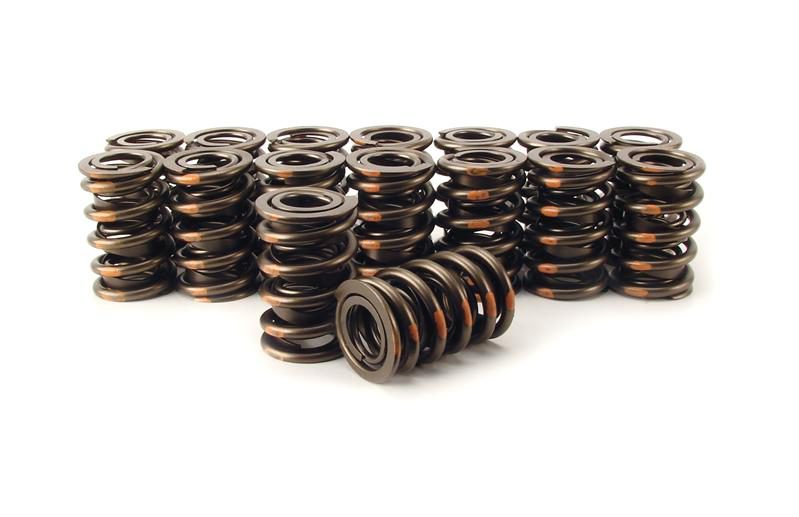

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

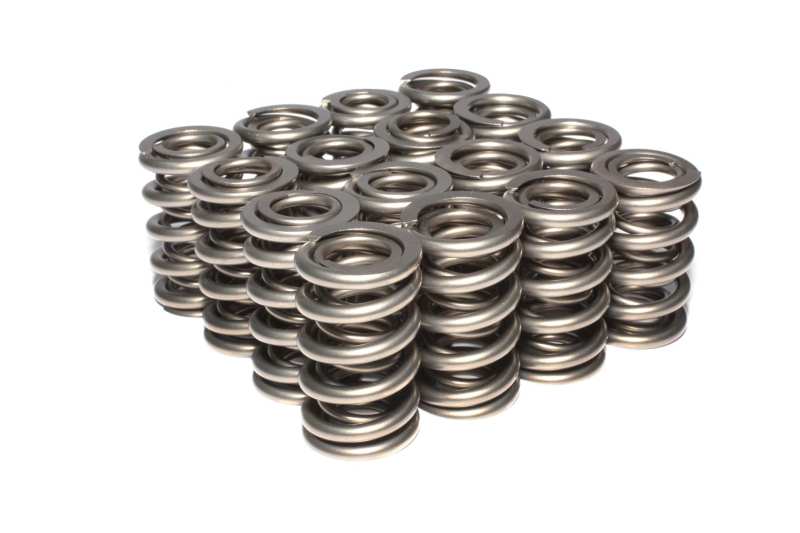

COMP Cams 26926-16 - Dual Valve Springs .675in Lift
Valve Spring - Dual Spring - 505 lb/in Spring Rate - 1.100 in Coil Bind - 1.320 in OD - Set of 16
Dual Valve Springs: 1.320" OD Outer, .654" ID Inner
COMP Cams Dual Valve Springs for street/strip Applications are manufactured from Super Clean® wire and subject to extensive quality control testing to deliver a valve spring assembly with superior strength, durability and valve train stability, no matter the application. The dual spring design creates a stronger valve spring that can easily handle the increased lift found in extreme stress applications. COMP Cams Dual Valve Springs exceed the expectations of today's engine builders and racers.
Coil Bind Height: 1.1
Compatible .570" Guide Diameter Spring Seats: 4731-16
Compatible Retainer: 779-16
Compatible Shims: 4753
Compatible Spring Cup (O.D. Locator): 4709-16
Damper: No
Inner Spring Inside Diameter: 0.654
Number of Springs: 2
Outer Spring Inside Diameter: 0.92
Outer Spring Outside Diameter: 1.32
Seat Height: 1.835
Seat Pressure: 129
Spring Rate: 505
Valve Spring Series: Race/Street
Amazon ASIN: B003HGQURG
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
