COMP Cams 26925CS-KIT - GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers - 0.660in Max Lift
COMP Cams | SKU:
COMP-26925CS-KIT
Sale price
$60095
Regular price
$66104
Unit price
/
Unavailable
$60.09 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams 26925CS-KIT - GM LS Dual Valve Spring Kit w/ Chromemoly Steel Retainers - 0.660in Max Lift
Valve Spring Kit - Dual Spring - 400 lb/in Spring Rate - 1.070 in Coil Bind - 1.320 in OD - Chromoly Retainer / Viton Seal / Steel Valve Lock / Steel Seat - GM LS-Series - Kit

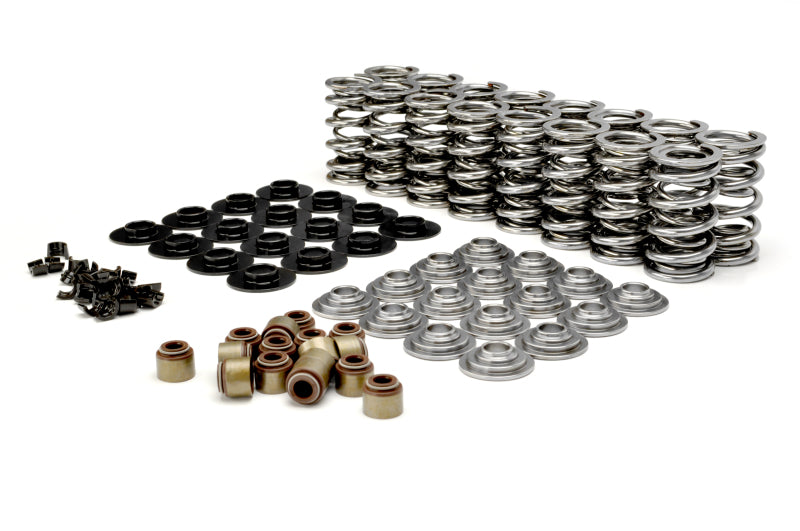

Including properly matched quality dual valve springs, 7 degree locks, viton seals, hardened seats and chromemoly steel retainers, this spring kit is ready to bolt onto LS heads with aggressive cams with up to .660" valve lift.
The COMP Cams .660" Lift Dual Spring Kit with Chromemoly Steel Retainers for GM LS features:_x000D_
- _x000D_
- .660" max lift _x000D_
- Specifically designed for hydraulic Roller and some Solid Roller Applications _x000D_
- Kit includes .660" lift dual springs, Chromemoly retainers, valve locks, seats, and Seals _x000D_
Number of Springs: 2
Outer Spring Outside Diameter: 1.320
Outer Spring Inside Diameter: 0.958
Inner Spring Inside Diameter: 0.680
Coil Bind Height: 1.070
Installed Height: 1.810
Seat Pressure: 141
Open Load: 405
Includes Shims?: No
Includes Seats?: Yes
Included Seats: 4695-16
Spring Rate: 400
Spring Seat Type: I.D. Locator
Includes Retainers?: Yes
Retainer Material: Chromemoly Steel
Damper: No
Valve Spring Series: Dual
Spring Style: Dual
Max Lift: 0.660
