COMP Cams 26906-16 - Valve Springs 1.28in Beehive
COMP Cams | SKU:
COMP-26906-16
Sale price
$12599
Regular price
$13859
Unit price
/
Unavailable
$12.60 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

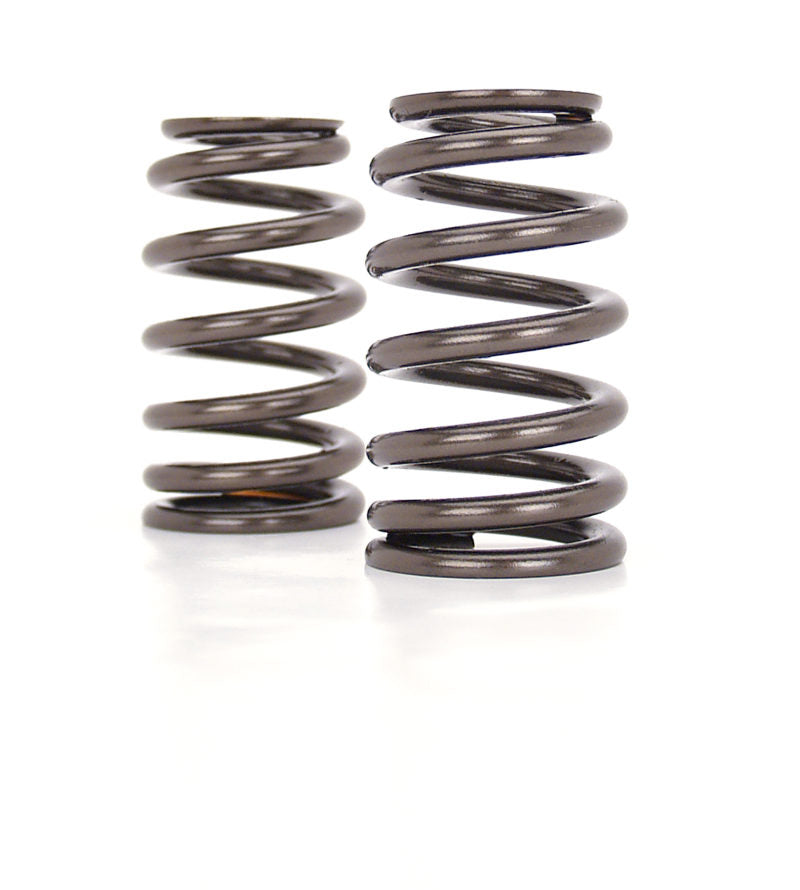

COMP Cams 26906-16 - Valve Springs 1.28in Beehive
Valve Spring - Beehive Spring - 386 lb/in Spring Rate - 1.181 in Coil Bind - 1.077 in / 1.282 in OD - Set of 16
Our LS6+ Beehive Valve Springs are a great way to freshen up LS heads. These Beehive springs offer .580" max lift, and these springs deliver higher seat and open pressures, along with a higher spring rate than GM LS6 "blue" springs.
4% Higher load and .030" higher lift capacity than "blue" GM LS6 springs. High-quality, small batch manufacturing and materials for premium quality and durability. Great for a mild performance Cam swap or for refreshing older heads. Upgrade for COMP Cams NSR (No Springs Required) LS Cams.
Top Outside Diameter: 1.077
Compatible Spring Seat / Seals: 528-KIT
Compatible Titanium Retainers: 722-16
Compatible Tool Steel Retainers: 1772-16
Compatible Chromemoly Steel Retainers: 774-16
Spring Style: Beehive
Valve Spring Series: Performance Street
Damper: No
Compatible Shims: 4753
Top Inside Diameter: 0.655
Spring Rate: 386
Open Load: 304
Seat Pressure: 92
Installed Height: 1.8
Coil Bind Height: 1.181
Bottom Inside Diameter: 0.86
Bottom Outside Diameter: 1.282
Amazon ASIN: B07MGNG1DY
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
