COMP Cams 26125CTI-KIT - 11-14 Ford Coyote/Boss 5.0L .600in Max Lift Valve Spring Kit w/ Ti Retainers

COMP Cams  |  SKU: COMP-26125CTI-KIT
$1,36395 $1,50034

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 26125CTI-KIT - 11-14 Ford Coyote/Boss 5.0L .600in Max Lift Valve Spring Kit w/ Ti Retainers

Coyote Beehive Spring Kit w/ Titanium Retainers, .510" Max Lift

Designed for '11-'14 and '15+ 5.0L Coyote and Boss engines, this beehive spring kit offers increased valve control at high RPM while allowing for higher valve lift from performance cams. Includes titanium retainers, seals and seats.

Ford Coyote and Boss 5.0L engines

Max Lift Seat Load Open Load Rate Coil Bind Outer Diameter Inner Diameter
.600" 120 lbs @ 1.57" 275 lbs @ 1.02" 258 lbs/in .970" Top 1.013" / Bottom 1.101" Top .650" / Bottom .738"

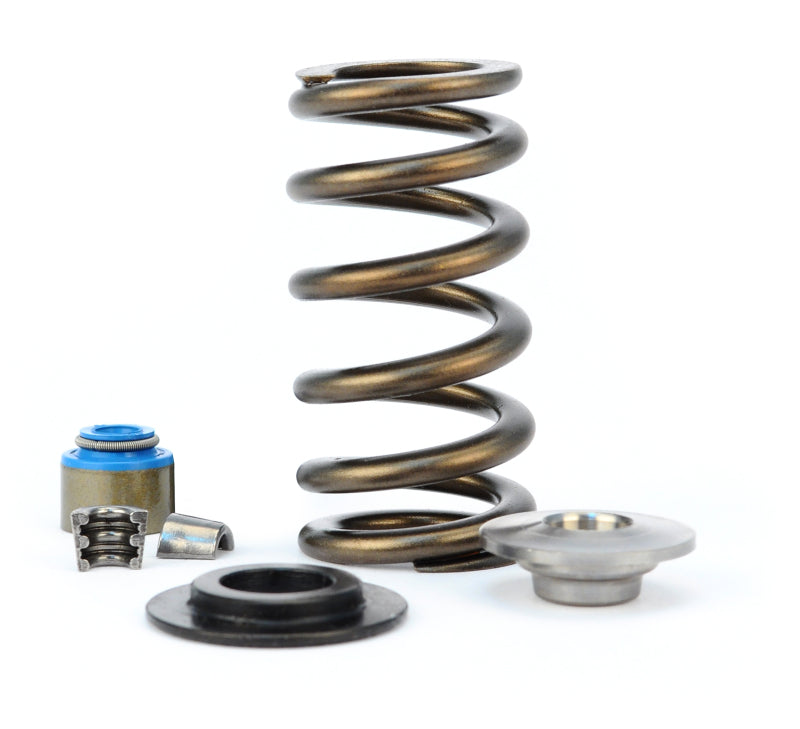

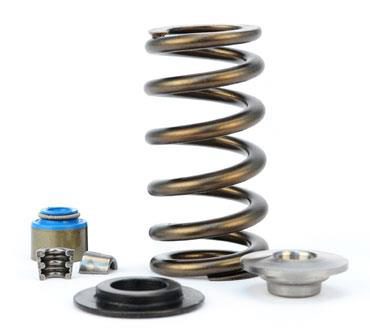

Please note the above image does not show full spring kit.
  • Designed for both 2011 - 2014 and 2015+ Ford Coyote and Boss 5.0L engines.
  • Create higher load
  • higher RPM and more lift capacity than stock.
  • Increased valve control at high RPM.
  • .600" Maximum Lift
Amazon ASIN: N/A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
