COMP Cams 26125-1 - Valve Spring H/L Ford 2V 3V
COMP Cams | SKU:
COMP-26125-1
Sale price
$4399
Regular price
$4839
Unit price
/
Unavailable
$4.40 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

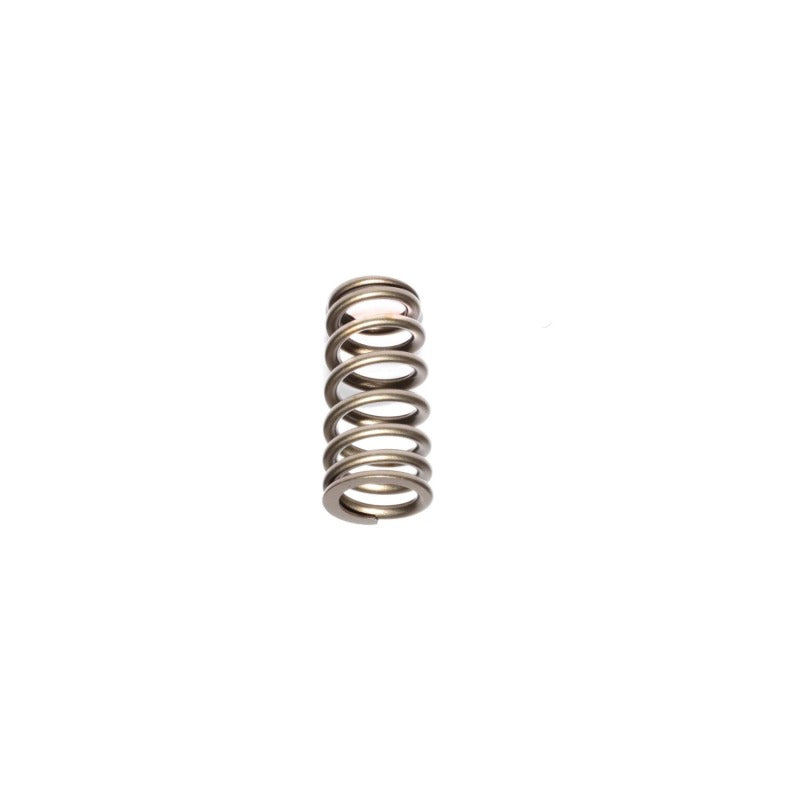

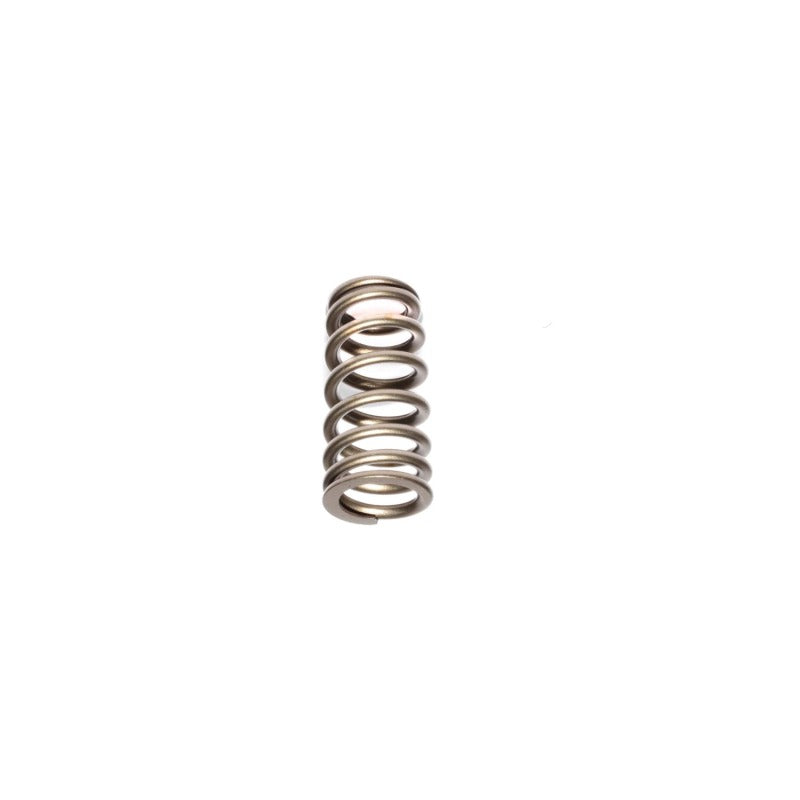

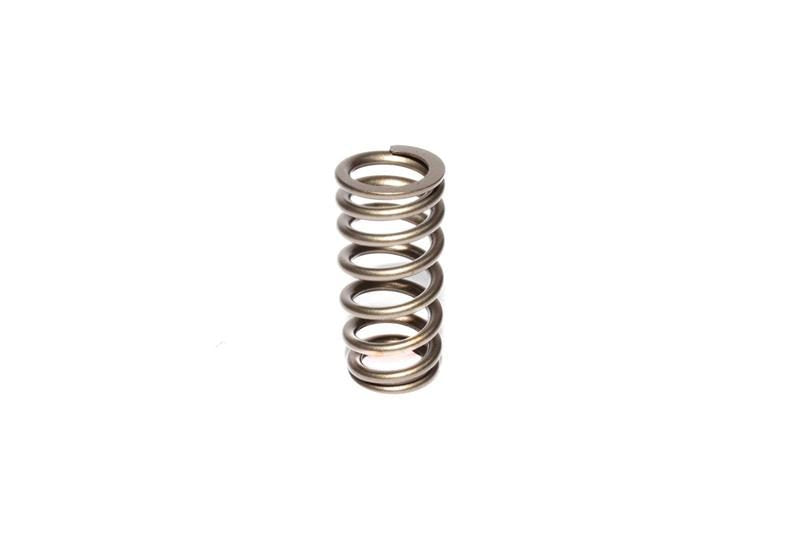

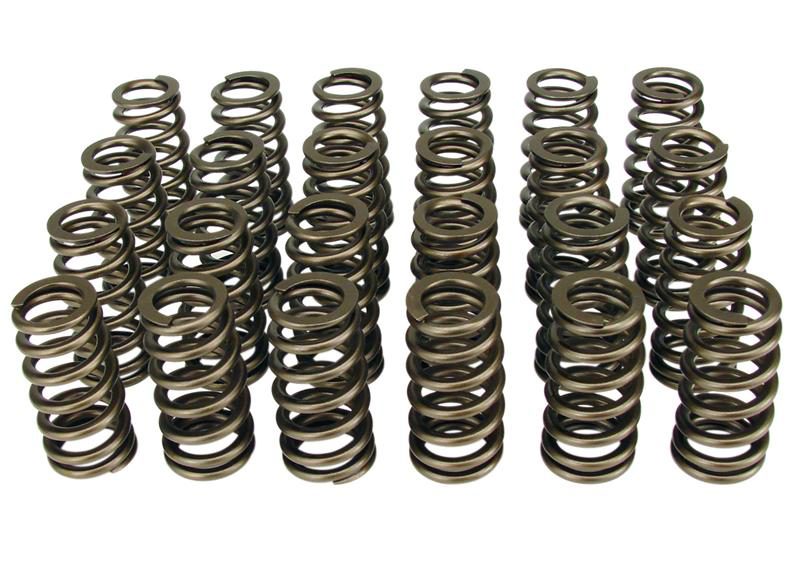

COMP Cams 26125-1 - Valve Spring H/L Ford 2V 3V
Race Street 1.101" OD Beehive Spring, 1.640" Installed Height, 1 Spring
Beehive Valve Spring: Top 1.013" OD, .650" ID
With a .650" maximum lift, these Beehive Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 and 3 Valve engines and Duramax Applications.
Coil Bind Height: 0.97
Compatible Retainer: 763-1
Damper: No
Number of Springs: 1
Outer Bottom Spring Inside Diameter: 0.738
Outer Bottom Spring Outside Diameter: 1.101
Outer Top Spring Inside Diameter: 0.65
Outer Top Spring Outside Diameter: 1.013
Seat Height: 1.64
Seat Pressure: 120
Spring Rate: 258
Valve Spring Series: Race/Street
Amazon ASIN: B001GBVS8A
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
