COMP Cams 26124-KIT - Valve Spring Kit, Ford Power S Troke 6.0/6.4

COMP Cams  |  SKU: COMP-26124-KIT
Sale price $67495 Regular price $74244

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 26124-KIT - Valve Spring Kit, Ford Power S Troke 6.0/6.4

Spring Kit for Powerstroke 6.0/6.4

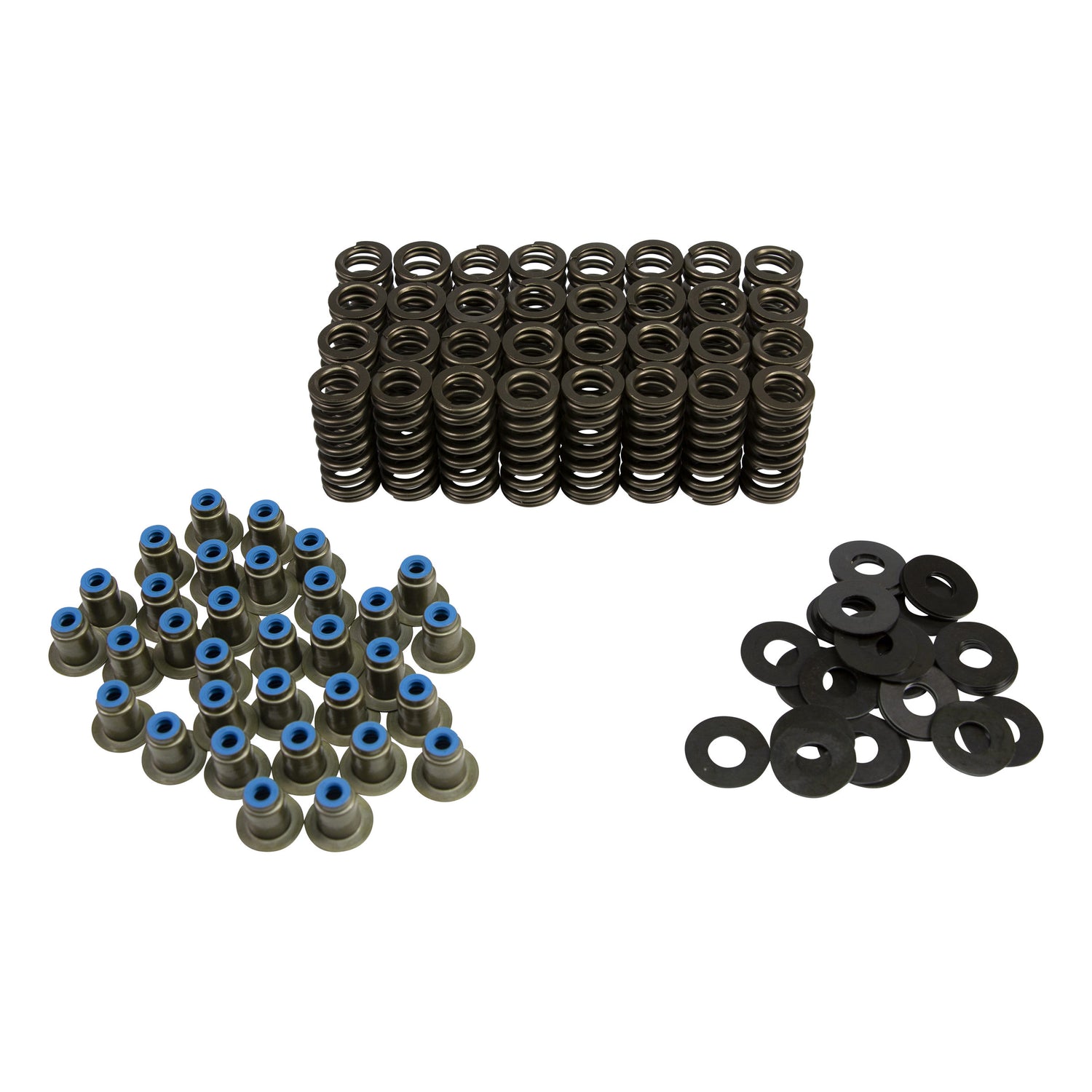

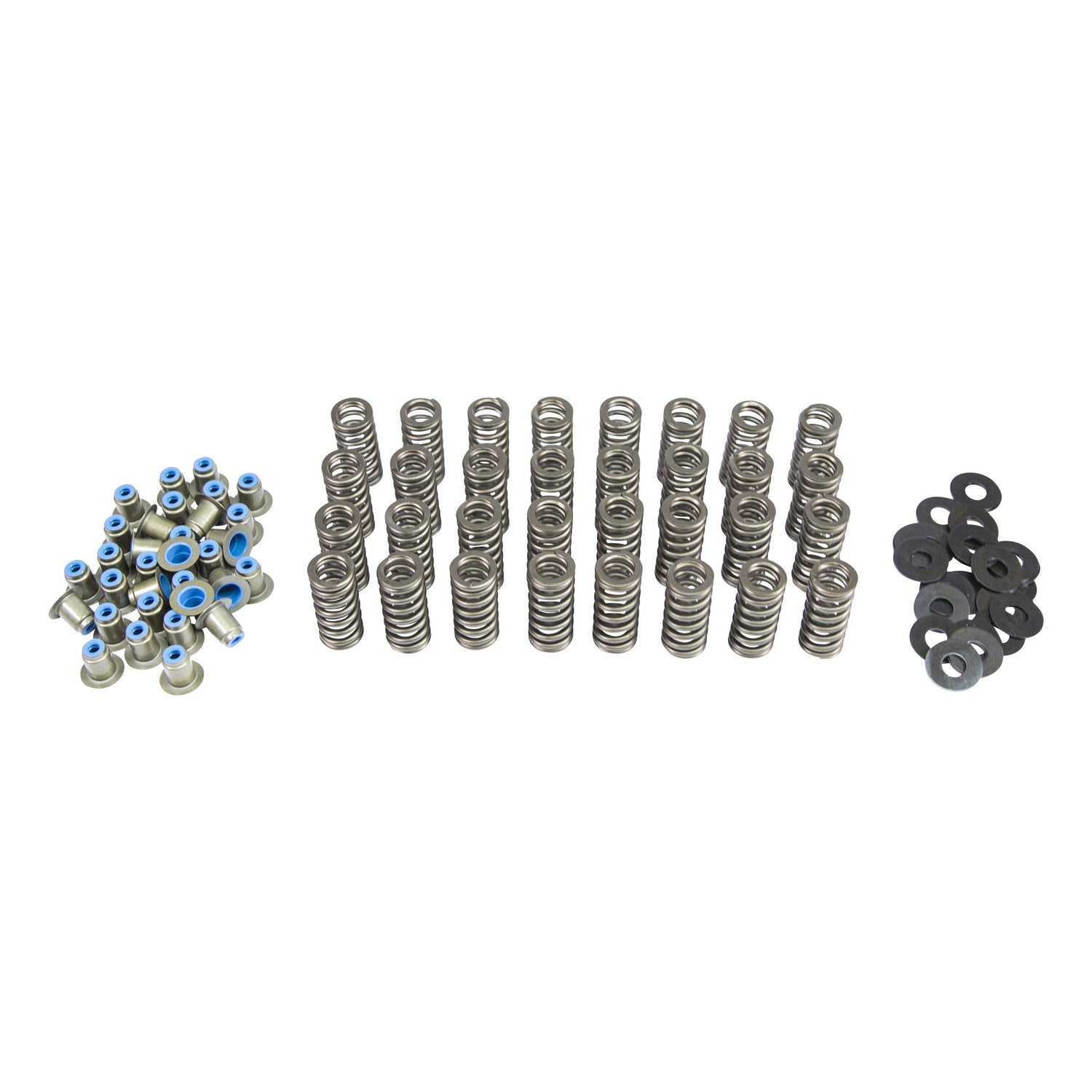

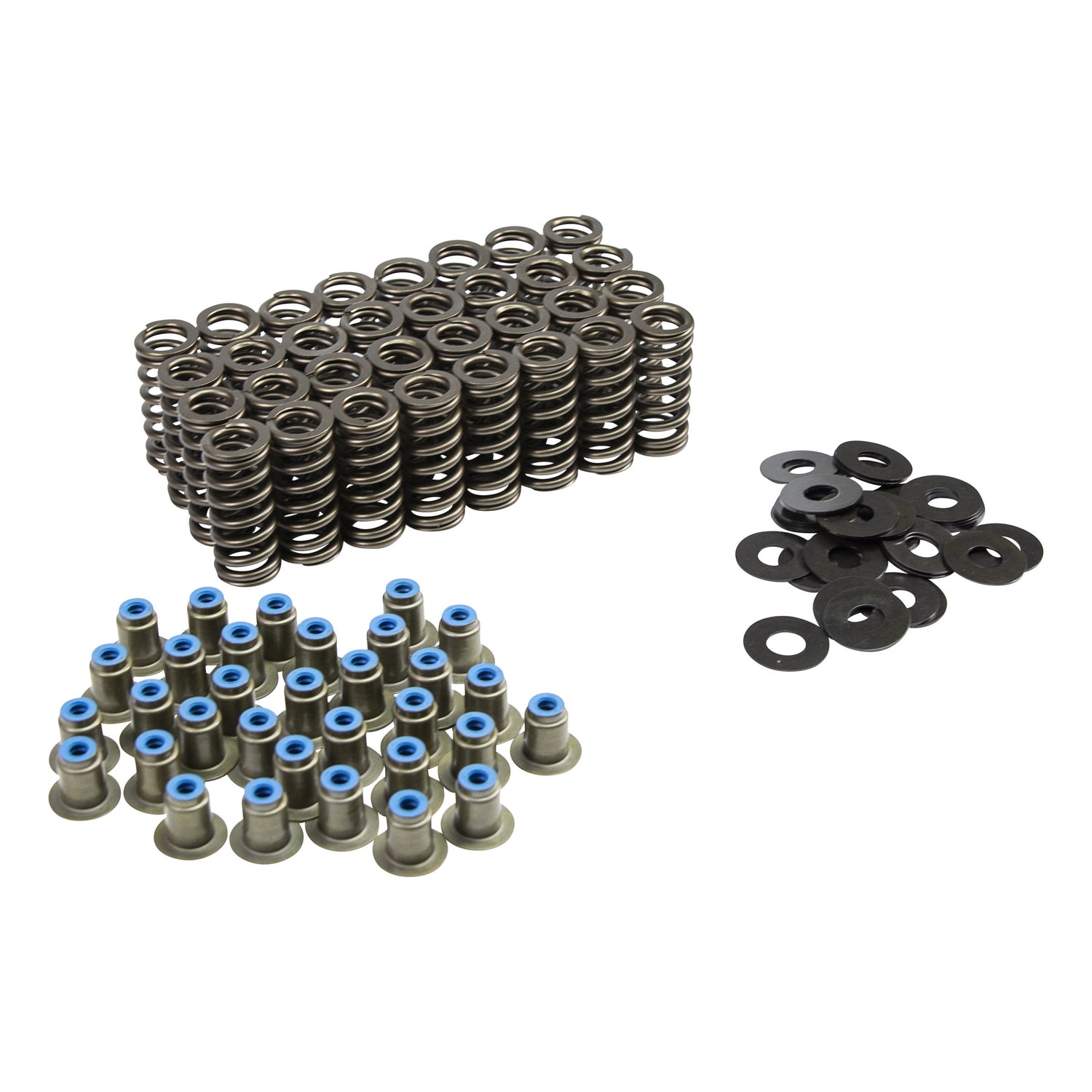

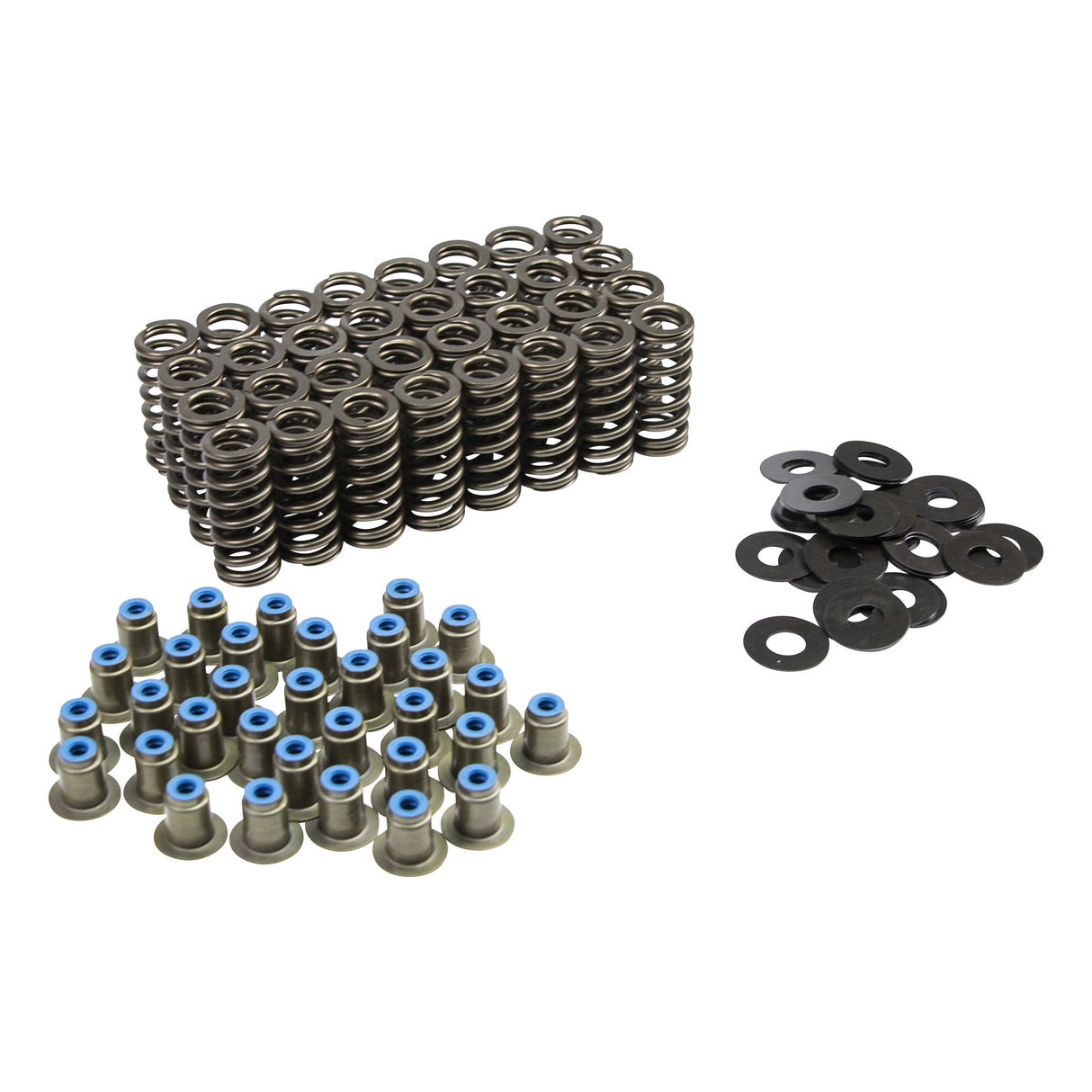

COMP Cams engineered the #26124 valve springs to have increased spring rate, as well as higher seat load for much better dynamic stability than factory springs. Unique ovate spring wire was selected to better manage operation stresses, create additional dynamic control and help valve train reliability at elevated RPM and boost pressures. The spring kit includes the COMP Cams Part #26124 Ovate Wire Valve Springs, #535 valve Seals and #4809 shims while making use of your stock retainers. Springs are also available as a set of 32 pieces or in single units without the valve Seals and shims.

  • Increased spring rate
  • Higher seat load for much better dynamic stability. Unique ovate spring wire to better manage operation stresses & create additional dynamic control to help valve train reliability at elevated RPM and boost pressures.
Spring Style: Straight
Max Lift: .515
Number of Springs: Single
Outside Diameter: 1.010
Inside Diameter: .647
Coil Bind Height: 1.19
Installed Height: 1.77
Seat Pressure: 140
Open Load: 300@1.270
Spring Rate: 320
Includes Shims?: Yes
Includes Seats?: Yes
Spring Seat Type: I.D. Locator
Includes Retainers?: No
