CSP SAVINGS!

CSP2026

COMP Cams 26124-1 - Valve Spring, Ford Powerstroke 6.0/6.4

COMP Cams  |  SKU: COMP-26124-1
Sale price $3399 Regular price $3739

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

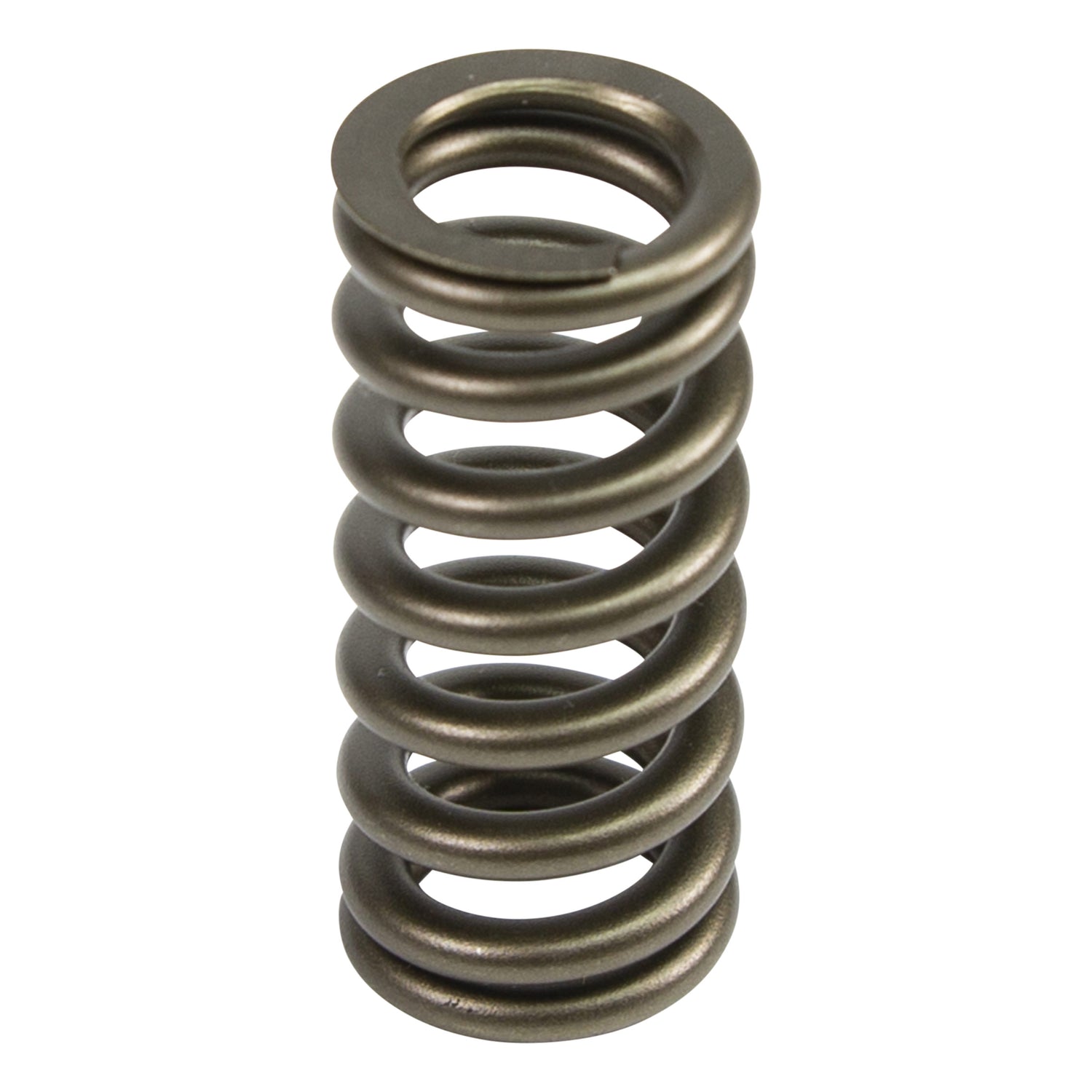

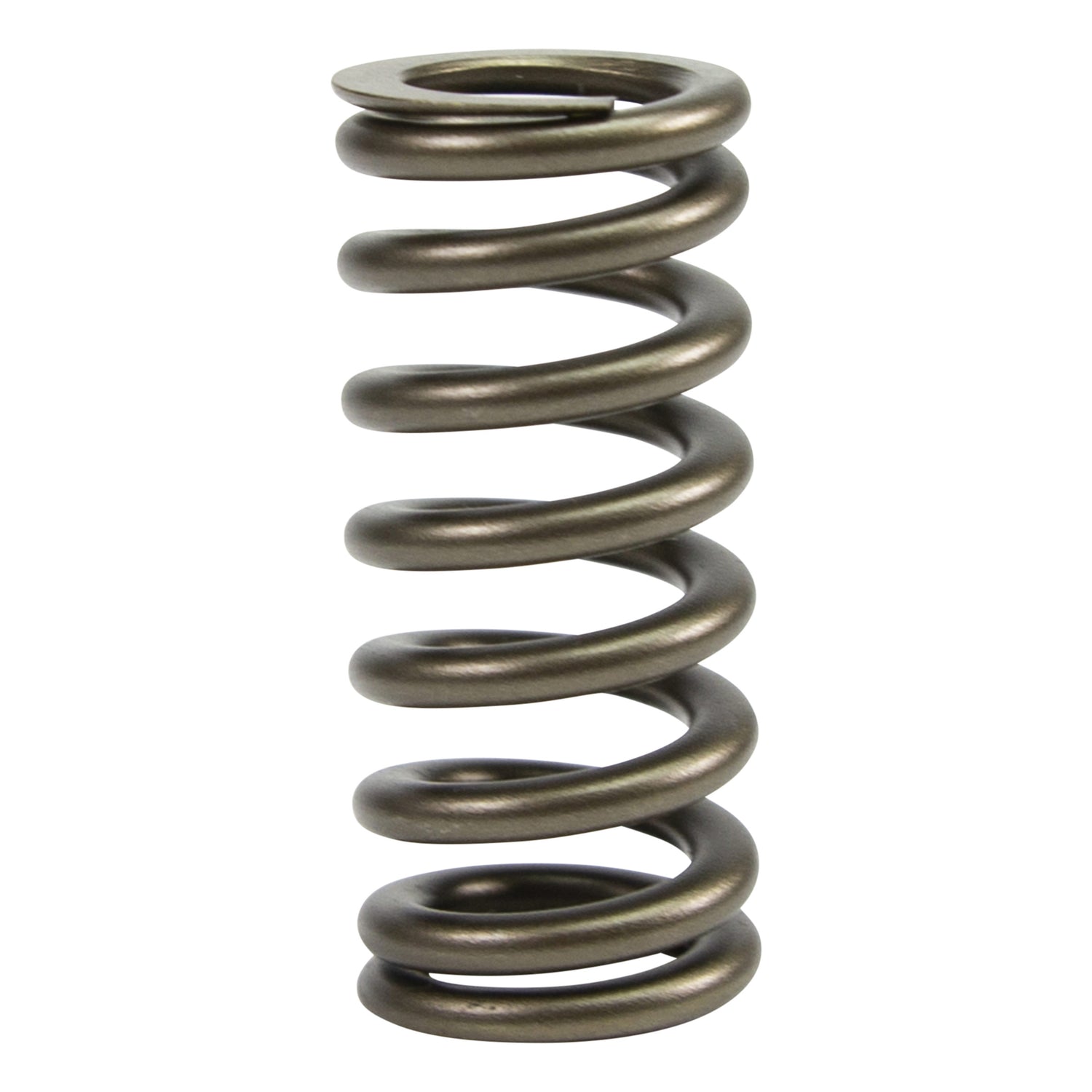

COMP Cams 26124-1 - Valve Spring, Ford Powerstroke 6.0/6.4

Valve Spring for Powerstroke 6.0/6.4

The .515" Lift valve spring for Ford 6.0L/6.4L Power Stroke engines withstands higher RPM and boost pressures than factory valve springs.

COMP Cams engineered the #26124 valve spring to have increased spring rate, as well as higher seat load for much better dynamic stability than factory springs. Unique ovate spring wire was selected to better manage operation stresses, create additional dynamic control and help valve train reliability at elevated RPM and boost pressures. Springs are also available in sets of 32 (Part #26124-32) or as a kit with the valve Seals and shims (Part #26124-Kit)

Number of Springs: Single
Top Outside Diameter: 1.01
Top Inside Diameter: 0.647
Bottom Outside Diameter: 1.01
Bottom Inside Diameter: 0.647
Coil Bind Height: 1.19
Installed Height: 1.77
Seat Pressure: 140
Open Load: 300@1.270
Spring Rate: 320
Compatible Shims: 4809
Compatible Spring Seat / Seals: P/N 535
Compatible Retainers: -
Damper: -
Spring Style: Straight
