COMP Cams 26120-16 - Valve Springs 1.445in Beehive

COMP Cams  |  SKU: COMP-26120-16
$31099 $34209
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

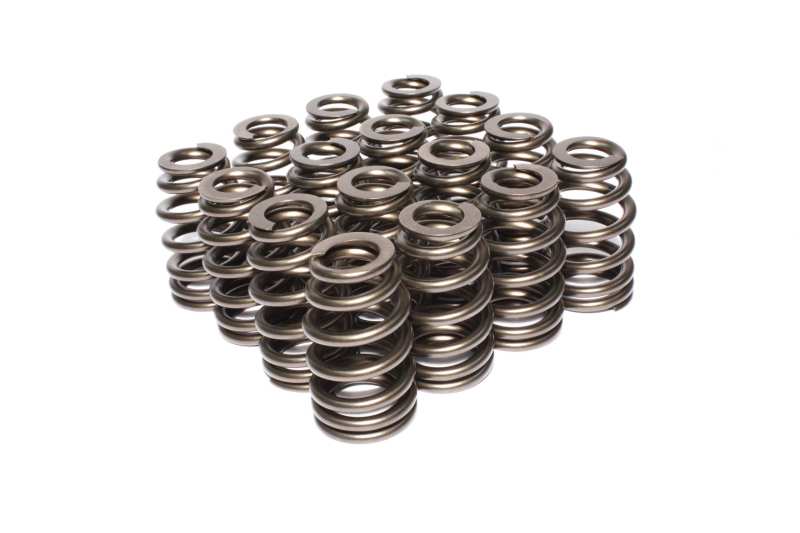

COMP Cams 26120-16 - Valve Springs 1.445in Beehive

Valve Spring - Beehive Spring - 370 lb/in Spring Rate - 1.230 in Coil Bind - 1.059 in / 1.444 in OD - Set of 16

Beehive Valve Springs: Top 1.095" OD, .650" ID

With a .600" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet cams as well as hydraulic Roller cams. They allow Big block engines to turn more RPM. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

  • OD 1.059/1.444
  • ID .650/1.000
  • Seat Load 155 @ 1.880
  • Open Load 377 @ 1.280
  • Coil Bind 1.230
  • Rate (Lbs./In.) 370
  • Titanium Retainer 794
  • Steel Retainer 795
  • Cup Seat 4696, 4697, 4698
  • Shims 4754
Seat Pressure: 155
Compatible Spring Cup (O.D. Locator): 4698-16
Outer Top Spring Outside Diameter: 1.059
Outer Top Spring Inside Diameter: 0.65
Outer Bottom Spring Outside Diameter: 1.444
Outer Bottom Spring Inside Diameter: 1
Number of Springs: 1
Damper: No
Compatible Shims: 4754
Spring Rate: 370
Compatible Retainer: 795-16
Compatible .630" Guide Diameter Spring Seats: 4697-16
Compatible .570" Guide Diameter Spring Seats: 4696-16
Coil Bind Height: 1.23
Valve Spring Series: Race/Street
Seat Height: 1.88
Amazon ASIN: B0014F6FX6
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
