COMP Cams 26120-1 - Valve Spring 1.445in Beehive

COMP Cams  |  SKU: COMP-26120-1
$4299 $4729

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

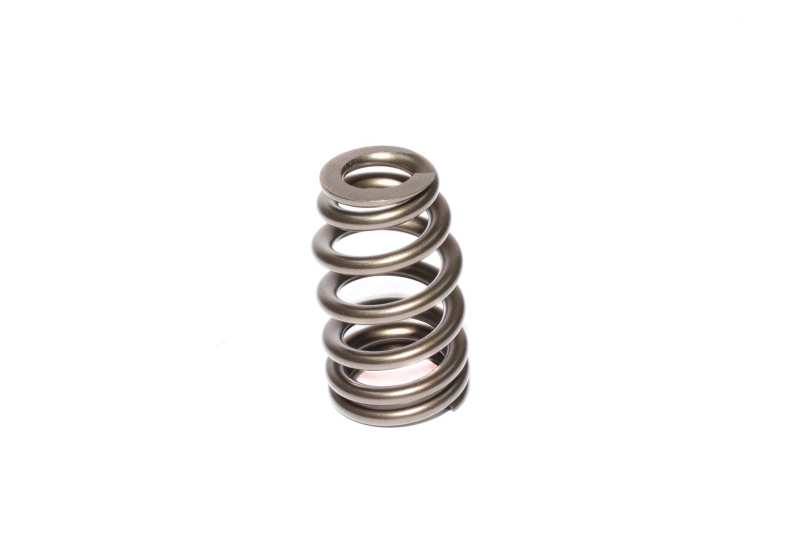

COMP Cams 26120-1 - Valve Spring 1.445in Beehive

Race Street 1.444" OD Beehive Spring, 1.880" Installed Height, 1 Spring

Beehive Valve Spring: Top 1.095" OD, .650" ID

With a .600" maximum lift, these Beehive Valve Springs were designed for hydraulic or Solid flat tappet cams as well as hydraulic Roller cams. They allow Big block engines to turn more RPM. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

  • OD 1.059/1.444
  • ID .650/1.000
  • Seat Load 155 @ 1.880
  • Open Load 377 @ 1.280
  • Coil Bind 1.230
  • Rate (Lbs./In.) 370
  • Titanium Retainer 794
  • Steel Retainer 795
  • Cup Seat 4696, 4697, 4698
  • Shims 4754
C.A.R.B. E.O. Number: N/A
Outer Bottom Spring Outside Diameter: 1.444
Spring Rate: 370
Seat Pressure: 155
Outer Bottom Spring Inside Diameter: 1
Coil Bind Height: 1.23
Number of Springs: 1
Damper: No
Outer Top Spring Inside Diameter: 0.65
Outer Top Spring Outside Diameter: 1.059
Seat Height: 1.88
Compatible Spring Cup (O.D. Locator): 4698-1
Compatible Shims: 4754
Compatible Retainer: 795-1
Compatible .630" Guide Diameter Spring Seat: 4697-1
Compatible .570" Guide Diameter Spring Seat: 4696-1
Valve Spring Series: Race/Street
Amazon ASIN: B000P5DB24
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
