COMP Cams 26113-16 - Valve Springs Ford 4.6L 2 Valve

COMP Cams  |  SKU: COMP-26113-16
$30099 $33109
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

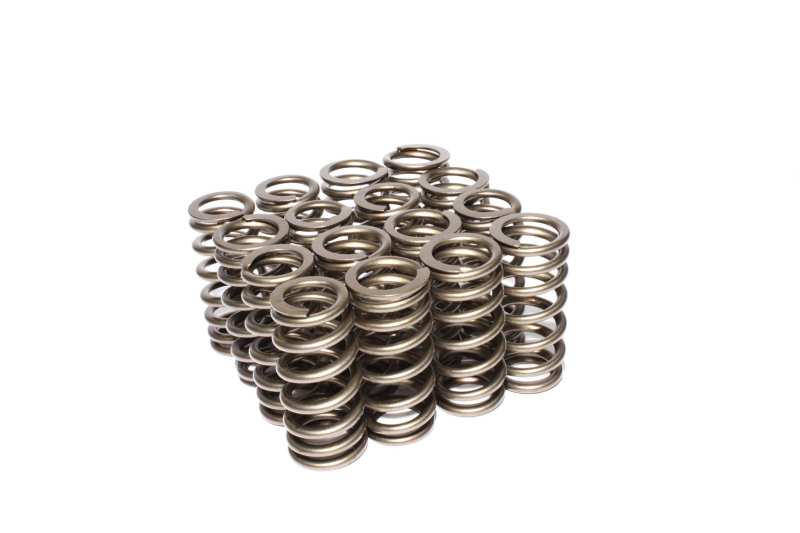

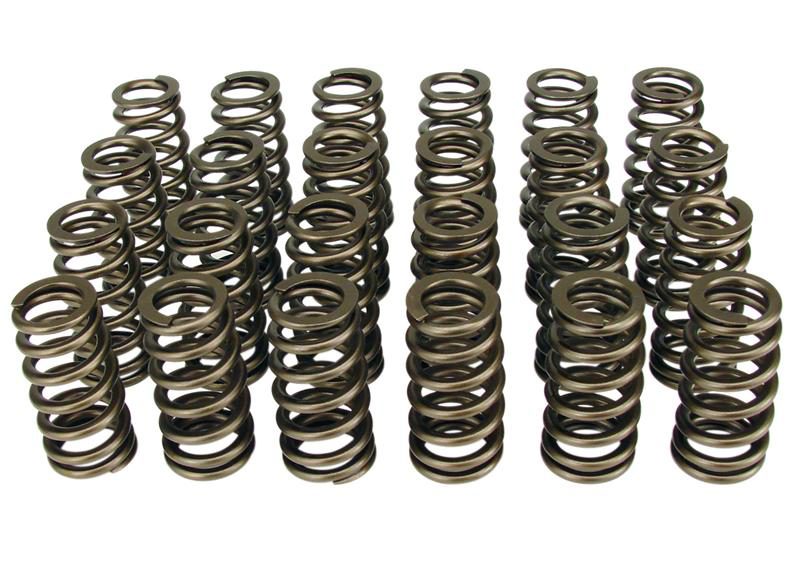

COMP Cams 26113-16 - Valve Springs Ford 4.6L 2 Valve

Valve Spring - Beehive Spring - 191 lb/in Spring Rate - 1.010 in Coil Bind - 0.959 in / 1.061 in OD - Set of 16

With a .550" maximum lift, these Beehive Valve Springs were designed for Ford 4.6L and 5.4L Modular 2 and 3 Valve engines. COMP Cams Beehive Valve Springs deliver increased valve train stability and a much lighter valve train. This is achieved with less spring pressure for better valve control and reduced weight of both the spring and retainer. The unique Beehive shape handles valve train stress more efficiently to eliminate damaging harmonics and increases high RPM horsepower and durability. The oval/multi-arc wire shape places the maximum area of the wire at the point of highest stress to handle valve train stress more efficiently and allow better heat dissipation for longer life. Because of the unique Beehive design, the valve train can handle more RPM and more aggressive Camshaft profiles.

Part # OD ID Seat Load Open Load Coil Bind Rate (Lbs./In.) Titanium Retainer Steel Retainer Cup Seat Shims
26113 Top Bottom .9591.061 .636.738 93 @ 1.570 198 @ 1.020 .952 191 702, 791 1723, 700, 792 N/A N/A
Coil Bind Height: 1.01
Compatible Retainer: 792-16
Damper: No
Number of Springs: 1
Outer Bottom Spring Inside Diameter: 0.738
Outer Bottom Spring Outside Diameter: 1.061
Outer Top Spring Inside Diameter: 0.65
Outer Top Spring Outside Diameter: 0.959
Seat Height: 1.64
Seat Pressure: 79.91
Spring Rate: 191
Valve Spring Series: Performance Street
Amazon ASIN: B000CIUBGS
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
