COMP Cams 26099-1 - Valve Spring Busch/Supertruck

COMP Cams  |  SKU: COMP-26099-1
$8299 $9129

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

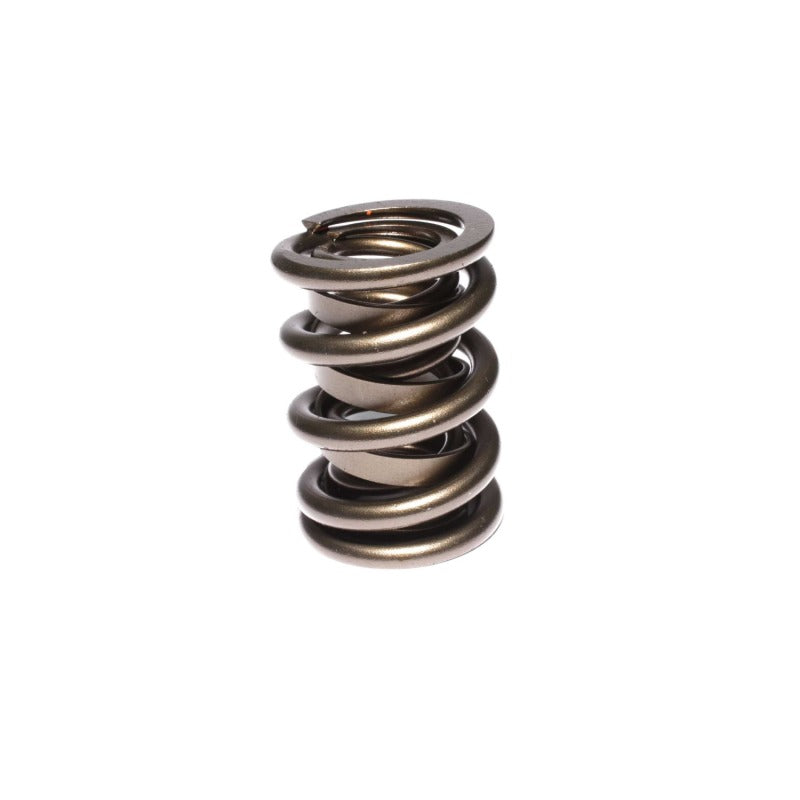

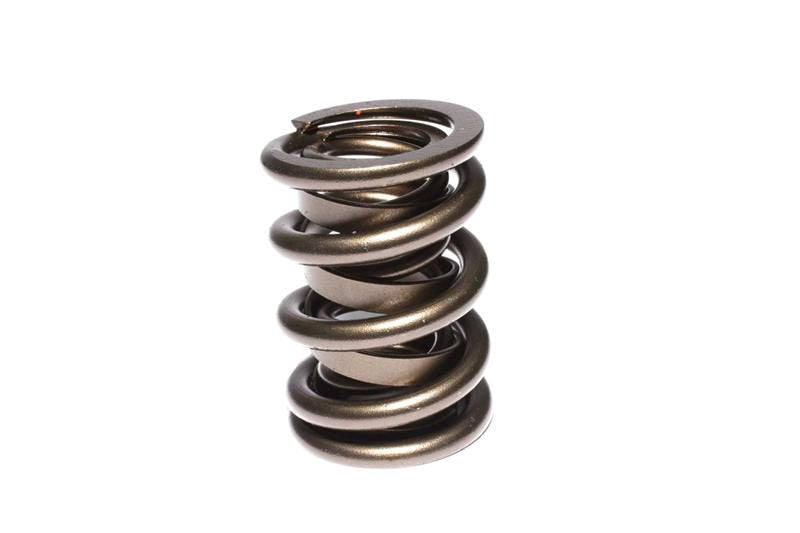

COMP Cams 26099-1 - Valve Spring Busch/Supertruck

Race Extreme 1.640" OD Dual Spring, 2.050" Installed Height, 1 Spring

Elite Race Dual Valve Spring: 1.625" OD Outer, .769" ID Inner

Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Designed for use with Roller cams and created with a new processing Technique for longevity and reliability, they are widely used in Camping World Truck, Dirt Late Model and Sprint Car racing. The Metallurgists at COMP Cams scrutinize every piece of Metal utilized in the creation of Elite Race Valve Springs to make sure they are of unsurpassable quality because fissures within the Metal of standard spring wire, caused by molecular contaminants, are the weakest link in valve spring construction. These fissures appear to be immense under the Scanning Electron Microscope but in fact, are just microns wide. Diminishing the occurrence of these fissures in our valve spring Steel is the COMP Cams standard when selecting materials.

Number of Springs: 2
Spring Rate: 563
Seat Pressure: 250
Seat Height: 2.05
Coil Bind Height: 1.184
Damper: Yes
Compatible Spring Cup (O.D. Locator): 4702-1
Compatible Shims: 4757
Inner Spring Inside Diameter: 0.759
Outer Spring Inside Diameter: 1.167
Outer Spring Outside Diameter: 1.64
Compatible Retainer: 733-1
Compatible .630" Guide Diameter Spring Seat: 4775-1
Compatible .570" Guide Diameter Spring Seats: 4774-1
Valve Spring Series: Race Extreme
Amazon ASIN: B001GBVQKU
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
