COMP Cams 26097-1 - Valve Spring 1.539in Dual W/Da

COMP Cams  |  SKU: COMP-26097-1
$7495 $8244

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

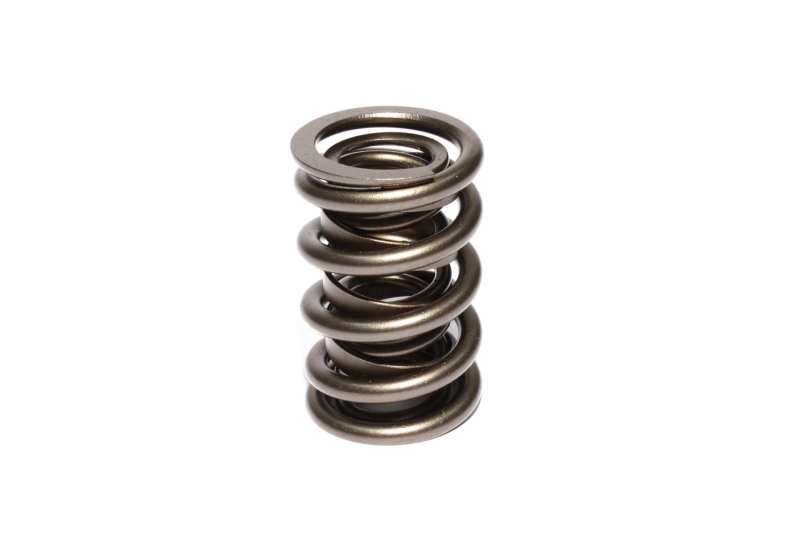

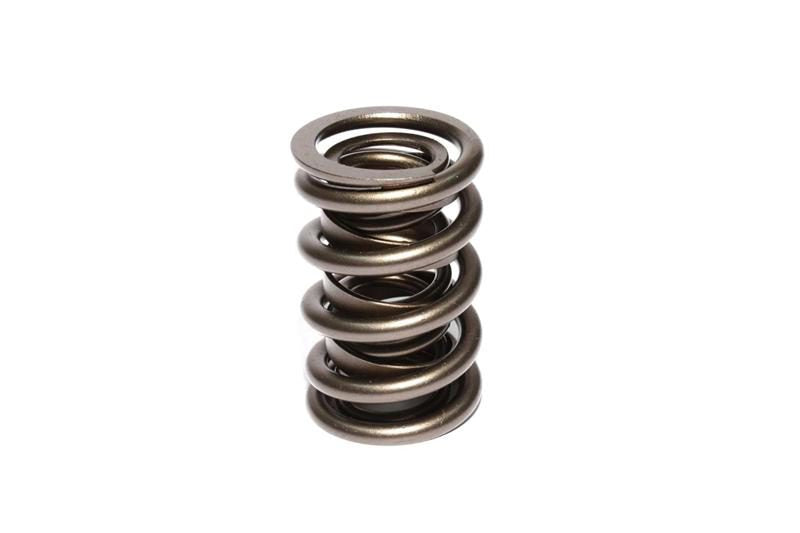

COMP Cams 26097-1 - Valve Spring 1.539in Dual W/Da

Race Endurance 1.551" OD Dual Spring, 2.000" Installed Height, 1 Spring

Elite Race Dual Valve Springs: 1.539" OD Outer, .731" ID Inner

Elite Race Double Valve Springs from COMP Cams have a .750"+ maximum lift and outside diameter of 1.680". Engineered with enhanced processing for middle level fatigue resistance and designed to work with Roller cams, they are widely used in Dirt or Asphalt Late Model and Sportsman racing, as well as marine racing. These Elite Race Valve Springs will also work in some high end flat tappet Applications.

Number of Springs: 2
Spring Rate: 502
Seat Pressure: 195
Seat Height: 2
Outer Spring Outside Diameter: 1.551
Outer Spring Inside Diameter: 1.117
Inner Spring Inside Diameter: 0.721
Coil Bind Height: 1.135
Damper: Yes
Compatible Spring Cup (O.D. Locator): 4700-1
Compatible Shims: 4757
Compatible Retainer: 732-1
Compatible .630" Guide Diameter Spring Seat: 4782-1
Compatible .570" Guide Diameter Spring Seat: 4781-1
Valve Spring Series: Race Endurance
Amazon ASIN: B001GBTQTI
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
