COMP Cams 26055-16 - Valve Springs 1.585in Beehive
COMP Cams | SKU:
COMP-26055-16
Sale price
$35599
Regular price
$39159
Unit price
/
Unavailable
$35.60 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

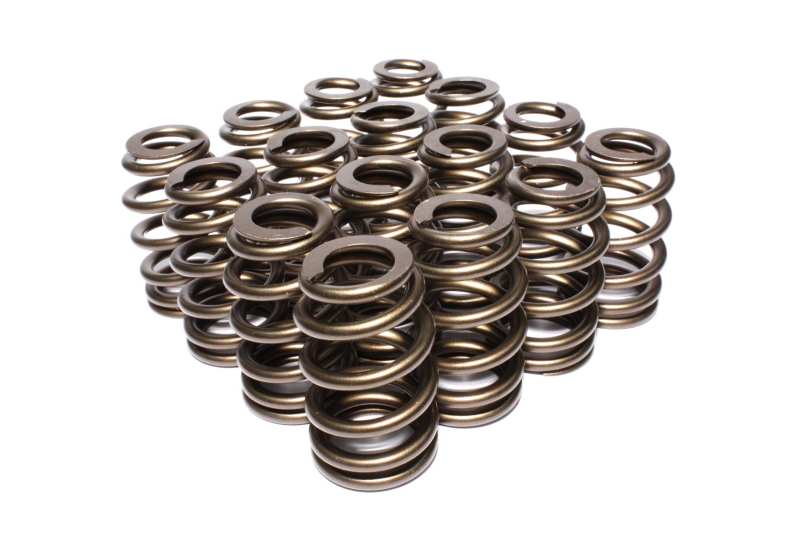

COMP Cams 26055-16 - Valve Springs 1.585in Beehive
Valve Spring - Ovate Beehive Spring - 400 lb/in Spring Rate - 1.225 in Coil Bind - 1.204 / 1.585 in OD - Set of 16
Beehive Valve Springs: Top 1.204" OD, .731" ID
With a .640" maximum lift, these Beehive Valve Springs were designed for high end Solid flat tappet and hydraulic Roller cams. They have great for high performance street and oval track capabilities, and are also good for endurance Applications.
Spring Rate: 400
Seat Pressure: 150
Seat Height: 1.925
Outer Top Spring Outside Diameter: 1.204
Outer Top Spring Inside Diameter: 0.721
Outer Bottom Spring Inside Diameter: 1.102
Coil Bind Height: 1.225
Number of Springs: 1
Damper: No
Compatible Spring Cup (O.D. Locator): 4702-16
Compatible Shims: 4757
Compatible Retainer: 785-16
Compatible .630" Guide Diameter Spring Seats: 4697-16
Compatible .570" Guide Diameter Spring Seats: 4640-16
Valve Spring Series: Race Sportsman
Amazon ASIN: B0014F6FXG
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Outer Bottom Spring Outside Diameter: 1.585
