COMP Cams 26028-16 - Valve Springs 2.200in Drag Rac
COMP Cams | SKU:
COMP-26028-16
Sale price
$74899
Regular price
$82389
Unit price
/
Unavailable
$74.90 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description
COMP Cams 26028-16 - Valve Springs 2.200in Drag Rac

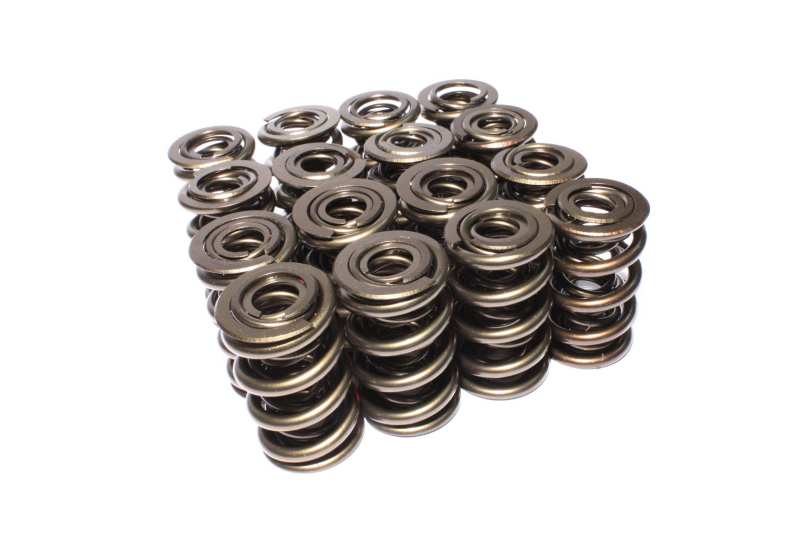

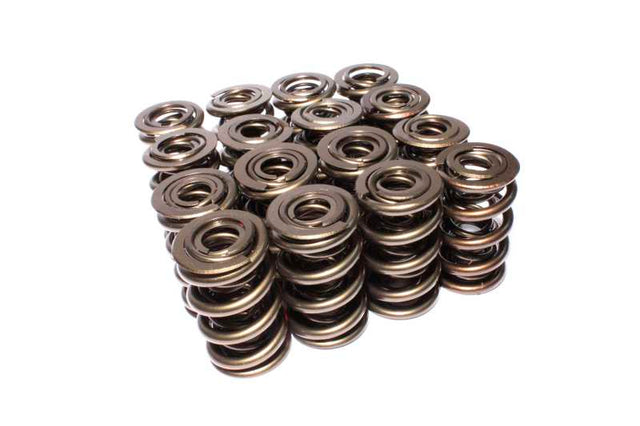

Valve Spring - Elite Race - Triple Spring - 712 lb/in Spring Rate - 1.161 in Coil Bind - 1.686 in OD - Set of 16
Elite Race Triple Valve Springs: 1.677" OD Outer, .872" ID Middle, .635" ID Inner
Elite Race Triple Valve Springs from COMP Cams have a 1.000" maximum lift and outside diameter of 1.677". Designed for use with Roller cams and with a 9,000 to 10,000 RPM capacity, they are widely used in Pro Stock and Competition Eliminator, as well as marine and tractor pull Applications.
Valve Spring Series: Race Extreme
Amazon ASIN: B000P595PQ
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: Yes
C.A.R.B. Exemption Reason: No impact on pollution output of vehicle.
C.A.R.B. E.O. Number: N/A
Coil Bind Height: 1.161
Compatible .570" Guide Diameter Spring Seats: 4786-16
Compatible Retainer: 739-16
Compatible Shims: 4756
Compatible Spring Cup (O.D. Locator): 4708-16
Damper: No
Inner Spring Inside Diameter: 0.864/0.624
Number of Springs: 3
Outer Spring Inside Diameter: 1.203
Outer Spring Outside Diameter: 1.686
Seat Height: 2.2
Seat Pressure: 342
Spring Rate: 712
