COMP Cams 26001-32 - 2018+ Ford Coyote Valve Springs 1.765in Beehive
COMP Cams | SKU:
COMP-26001-32
Sale price
$61099
Regular price
$67209
Unit price
/
Unavailable
$61.10 off
DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

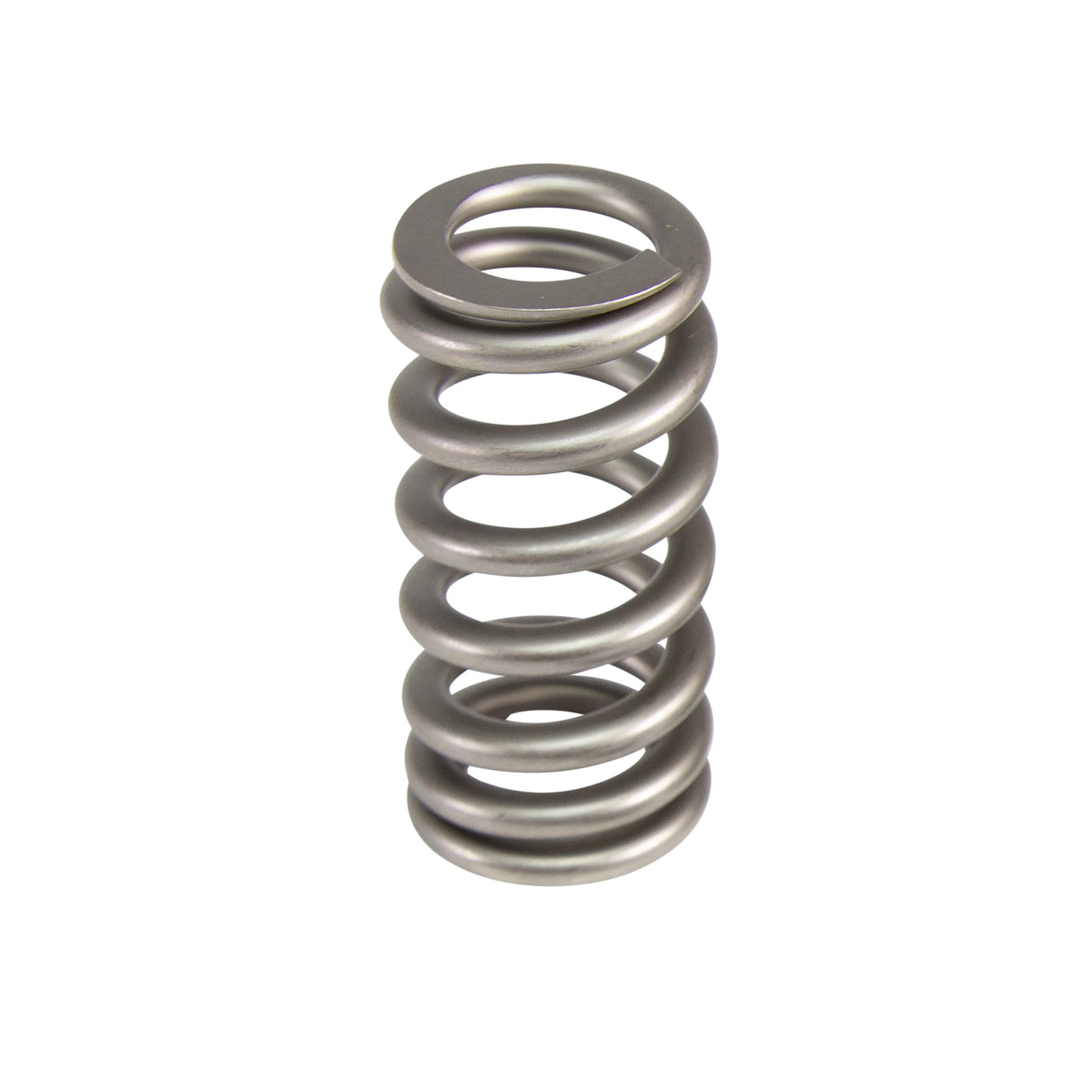

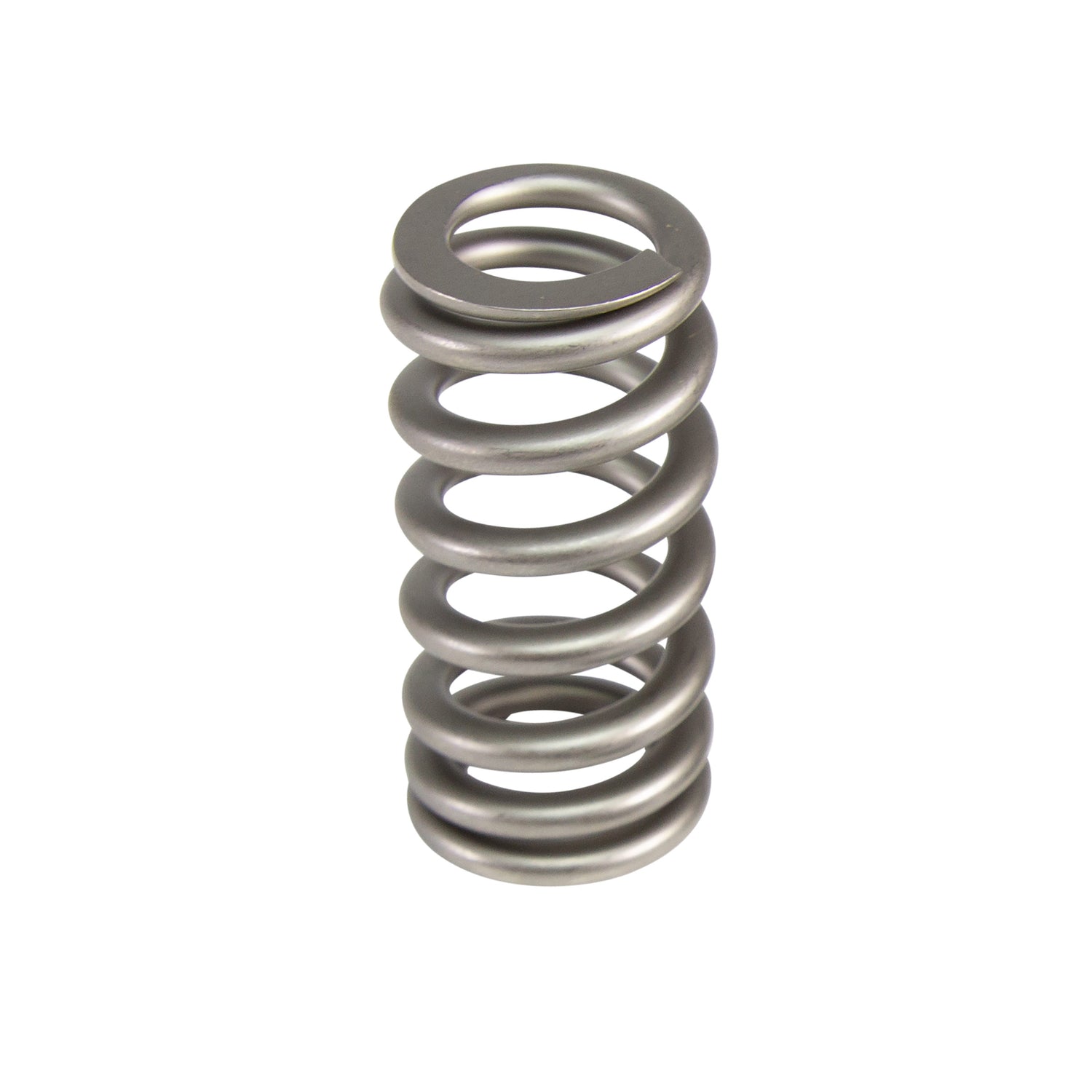

COMP Cams 26001-32 - 2018+ Ford Coyote Valve Springs 1.765in Beehive

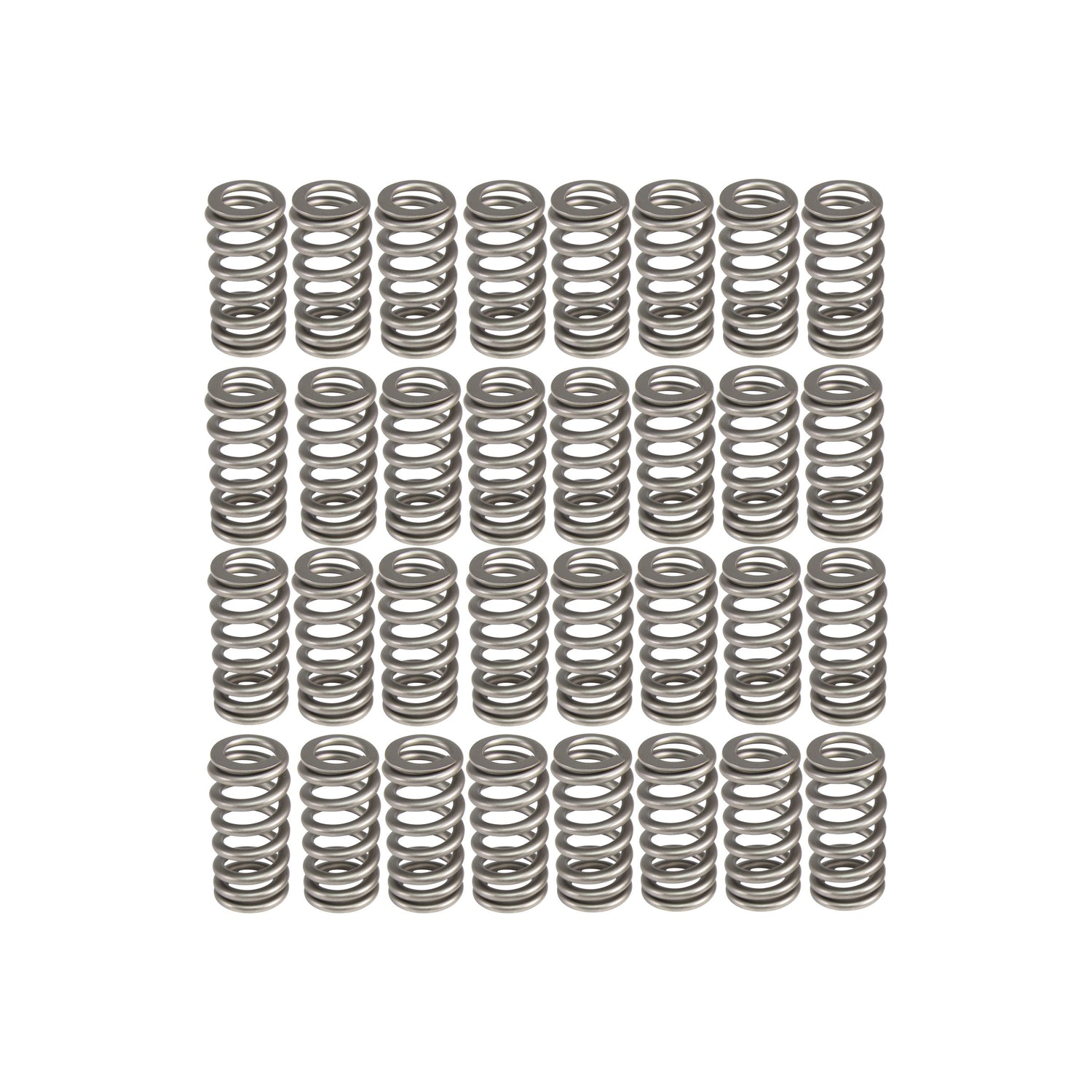

Beehive Valve Spring Set for '18+ Ford 5.0 Coyote
Beneficial to both naturally aspirated and boosted Coyote engines, thiese Beehive valve springs improve valve control and increases valve lift capacity to 0.600".
Compatible Seals: 523
Compatible Locks: stock
Bottom Outside Diameter: 1.0830
Bottom Inside Diameter: 0.720
Coil Bind Height: 1.090
Installed Height: 1.765
Seat Pressure: 105
Open Load: 280
Top Inside Diameter: 0.6360
Spring Rate: 291
Compatible Shims: N/A
Damper: No
Valve Spring Series: Performance Street
Spring Style: Beehive
Compatible Chromemoly Steel Retainers: 710
Compatible Tool Steel Retainers: N/A
Compatible Titanium Retainers: 702
Compatible Spring Seat: 4688
Max Lift: 0.600
