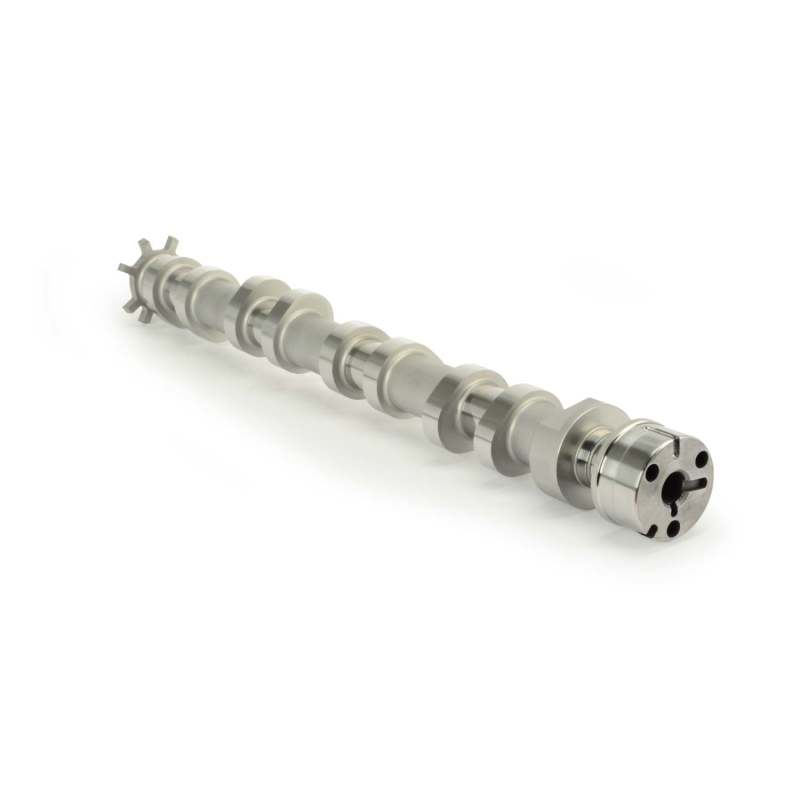

COMP Cams 243480 - 2015+ Ford Mustang Coyote CR Series Camshaft 2100-7600

COMP Cams  |  SKU: COMP-243480
$2,12499 $2,33749

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 243480 - 2015+ Ford Mustang Coyote CR Series Camshaft 2100-7600

CR NSR Blower 239/245 Hydraulic Roller Cams for ('15+) Ford 5.0L Coyote

Blower cam version of Part 243440. Best high RPM street/strip grind for heavily modified blown applications.

The new CR Cam Series from COMP Cams is designed to greatly improve upon stock 2015 Coyote Camshafts and work without modifications to the engine's cylinder heads or phasers. COMP Cams 2015 Ford Mustang Coyote CR Series Camshafts are the first new Cam and core Series for 2015 and later Coyote engines. New lobes improve upon the 2011-2014 XFI Camshaft Series and feature faster ramps, more lift and more area under the lift curve. The cams work with stock 2015 valve springs and the new Ford mid-lock phaser system without requiring limiters or any other phaser modifications. Three grinds are available for naturally aspirated engines with two designed specifically for blower Applications.

Camshaft Series: CR NSR (No Springs Required) Blower
Cam Type: Hydraulic Roller Finger Follower
Grind Number: F5.0F CYR275BLH 134
Basic Operating RPM Range: 2,100-7,700
Intake Duration at .050 Inch Lift: 239
Exhaust Duration at .050 inch Lift: 245
Advertised Intake Duration: 275
Advertised Exhaust Duration: 286
Lobe Separation: 134
Intake Valve Lift: 0.516
Exhaust Valve Lift: 0.514
Lifters Included: No
Valve Springs Required: No
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2015+)
Lifter Type: Hydraulic Roller Finger Follower
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
Amazon ASIN: B01M0OB6R3
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: F5.0F CYR275BLH 134
