COMP Cams 243440 - 2015+ Ford Mustang Coyote CR Series Camshaft 2000-7500

COMP Cams  |  SKU: COMP-243440
$2,12499 $2,33749
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

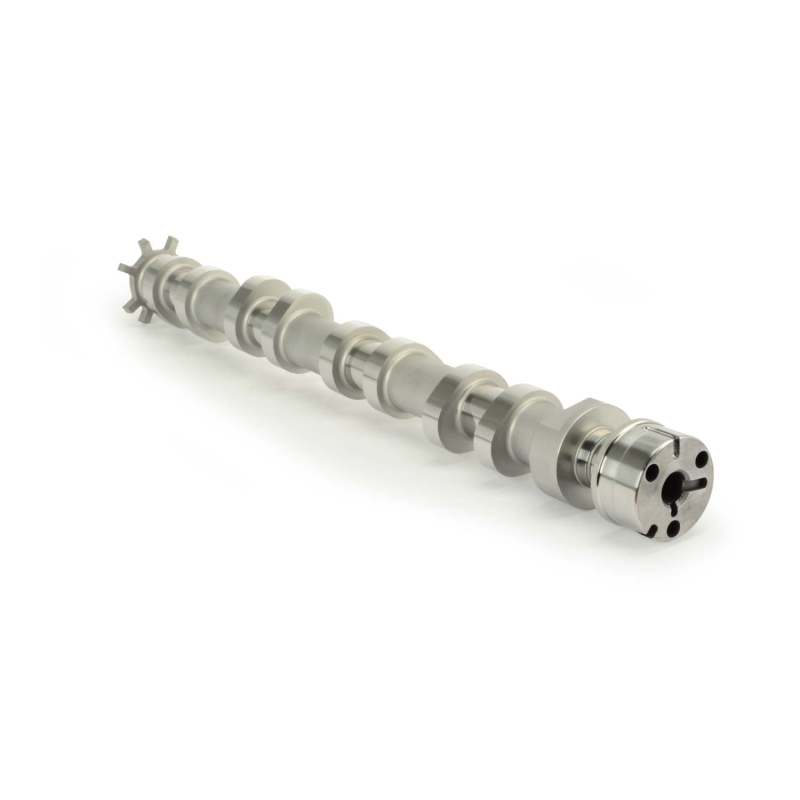

COMP Cams 243440 - 2015+ Ford Mustang Coyote CR Series Camshaft 2000-7500

CR NSR 235/237 Hydraulic Roller Cams for ('15+) Ford 5.0L Coyote

Max effort street/strip grind for 2015+ Coyote modified applications that operate above the factory rev limiter.

The new CR Cam Series from COMP Cams is designed to greatly improve upon stock 2015 Coyote Camshafts and work without modifications to the engine's cylinder heads or phasers. COMP Cams 2015 Ford Mustang Coyote CR Series Camshafts are the first new Cam and core Series for 2015 and later Coyote engines. New lobes improve upon the 2011-2014 XFI Camshaft Series and feature faster ramps, more lift and more area under the lift curve. The cams work with stock 2015 valve springs and the new Ford mid-lock phaser system without requiring limiters or any other phaser modifications. Three grinds are available for naturally aspirated engines with two designed specifically for blower Applications.

Camshaft Series: CR NSR (No Sprngs Required)
Cam Type: Hydraulic Roller Finger Follower
Grind Number: F5.0F CYR271NAH 131
Basic Operating RPM Range: 2,000-7,600
Intake Duration at .050 Inch Lift: 235
Exhaust Duration at .050 inch Lift: 237
Advertised Intake Duration: 271
Advertised Exhaust Duration: 278
Lobe Separation: 131
Intake Valve Lift: 0.516
Exhaust Valve Lift: 0.514
Lifters Included: No
Valve Springs Required: No
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Engine Family: Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2015+)
Lifter Type: Hydraulic Roller Finger Follower
Amazon ASIN: B01M1NGGVH
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: F5.0F CYR271NAH 131
