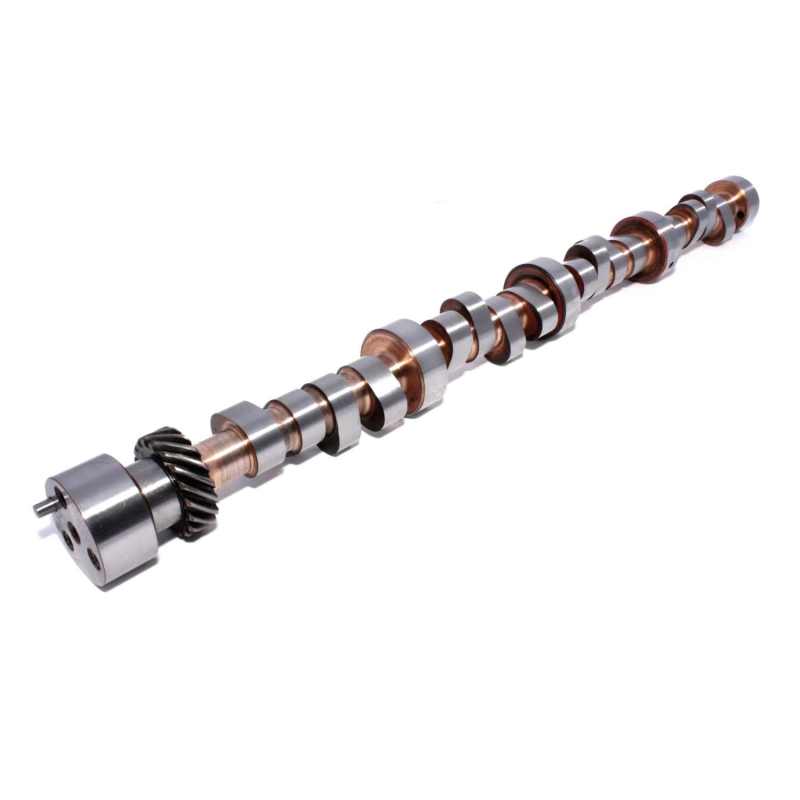

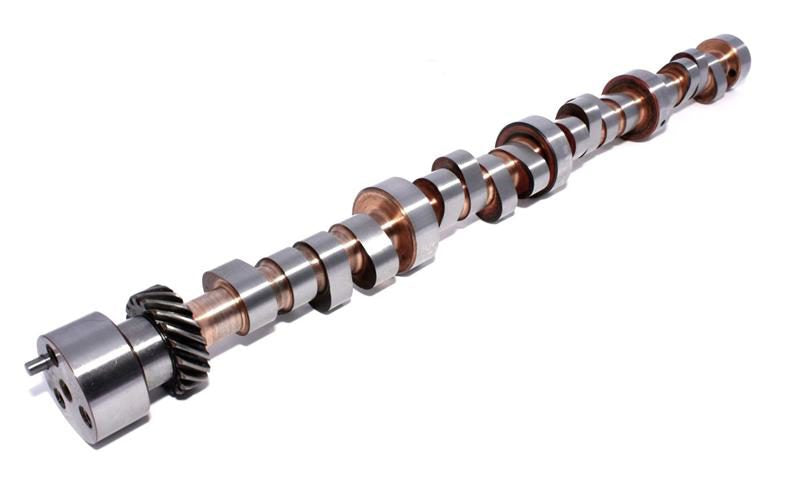

COMP Cams 23-712-9 - Camshaft CRB3 XR286HR-10

Name: COMP Cams 23-712-9 - Camshaft CRB3 XR286HR-10
Brand: COMP Cams
SKU: COMP-23-712-9
Price: 537.99 USD
Availability: InStock

COMP Cams | SKU: COMP-23-712-9

$537⁹⁹ $591⁷⁹

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 23-712-9 - Camshaft CRB3 XR286HR-10

Camshaft - Xtreme Energy - Hydraulic Roller - Lift 0.544 / 0.541 in - Duration 286 / 294 - 110 LSA - 2500 / 6200 RPM - Mopar B / RB-Series - Each

3.91+ gear, 9.5:1+ compression, 2800+ stall, needs headers, rough idle.

Camshaft Series: Xtreme Energy

Usage: Street/Performance

Cam Type: Hydraulic Roller

Grind Number: XR286HR-10

Basic Operating RPM Range: 2,500-6,200

Intake Duration at .050 Inch Lift: 236

Exhaust Duration at .050 inch Lift: 242

Advertised Intake Duration: 286

Advertised Exhaust Duration: 294

Lobe Separation: 110

Intake Valve Lift: 0.544

Exhaust Valve Lift: 0.541

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: No

Camshaft Gear Attachment: 3-Bolt

Camshaft Material: Billet Steel

Lifter Type: Hydraulic Roller

Engine Family: Chrysler 383-440 c.i. 8 Cylinder (1959-1980)

Amazon ASIN: B001GBTMZG

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?: No

C.A.R.B. Exemption Reason: N/A

C.A.R.B. E.O. Number: N/A

Grind Number: XR286HR-10
