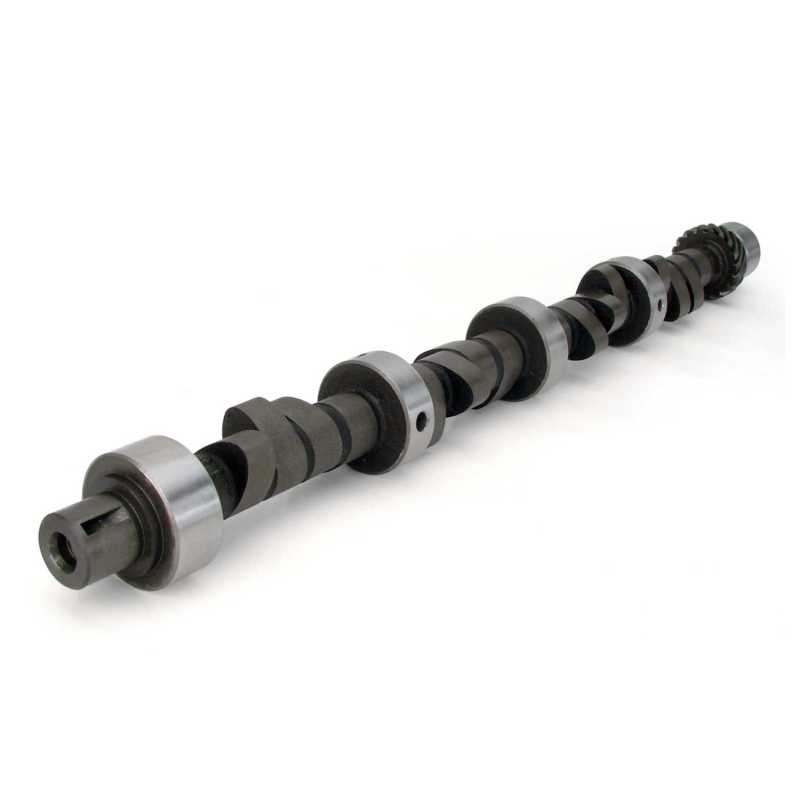

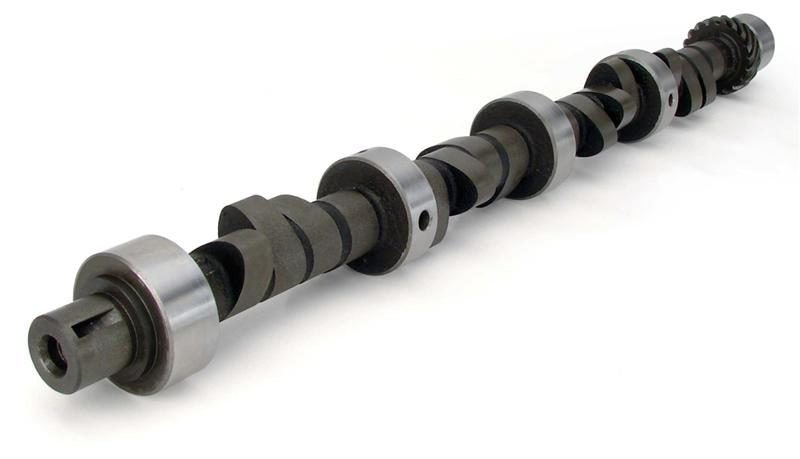

COMP Cams 20-309-4 - Camshaft CRS 268Ah-10

Name: COMP Cams 20-309-4 - Camshaft CRS 268Ah-10
Brand: COMP Cams
SKU: COMP-20-309-4
Price: 297.95 USD
Availability: InStock

COMP Cams | SKU: COMP-20-309-4

$297⁹⁵ $327⁷⁴

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

COMP Cams 20-309-4 - Camshaft CRS 268Ah-10

Camshaft - Magnum Muscle - Hydraulic Flat Tappet - Lift 0.464 / 0.464 in - Duration 268 / 276 - 110 LSA - 1800 / 5800 RPM - Small Block Mopar - Each

Factory I.D. 2899206 for: 340c.i., 1968-71, factory 275 HP, 340c.i., 1970, factory 290 HP, 340c.i., 1972-73, factory 240 HP.

Lifters Included: No

Valve Springs Required: Yes

Assembly Lubricant Included: Yes

Camshaft Gear Attachment: 1-Bolt

Camshaft Material: Cast Iron

Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)

Cam and Lifter Kit Upgrade: CL20-309-4

Lifter Type: Hydraulic Flat Tappet

Amazon ASIN: B000P5G824

C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.

C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.

C.A.R.B. Exempt for On-Road Vehicles?: No

C.A.R.B. Exemption Reason: N/A

C.A.R.B. E.O. Number: N/A

Grind Number: 268AH-10

Camshaft Series: Magnum Muscle

Usage: Street/Performance

Cam Type: Hydraulic Flat Tappet

Grind Number: 268AH-10

Basic Operating RPM Range: 1,800-5,800

Intake Duration at .050 Inch Lift: 222

Exhaust Duration at .050 inch Lift: 226

Advertised Intake Duration: 268

Advertised Exhaust Duration: 276

Lobe Separation: 110

Intake Valve Lift: 0.464

Exhaust Valve Lift: 0.464
