COMP Cams 20-248-4 - Camshaft CRS 294S-10
COMP Cams | SKU:
COMP-20-248-4
Sale price
$29795
Regular price
$32774
Unit price
/
Unavailable
$29.79 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be repsentative of style, rather than the actual product. Read the description for more details.
Description
Description

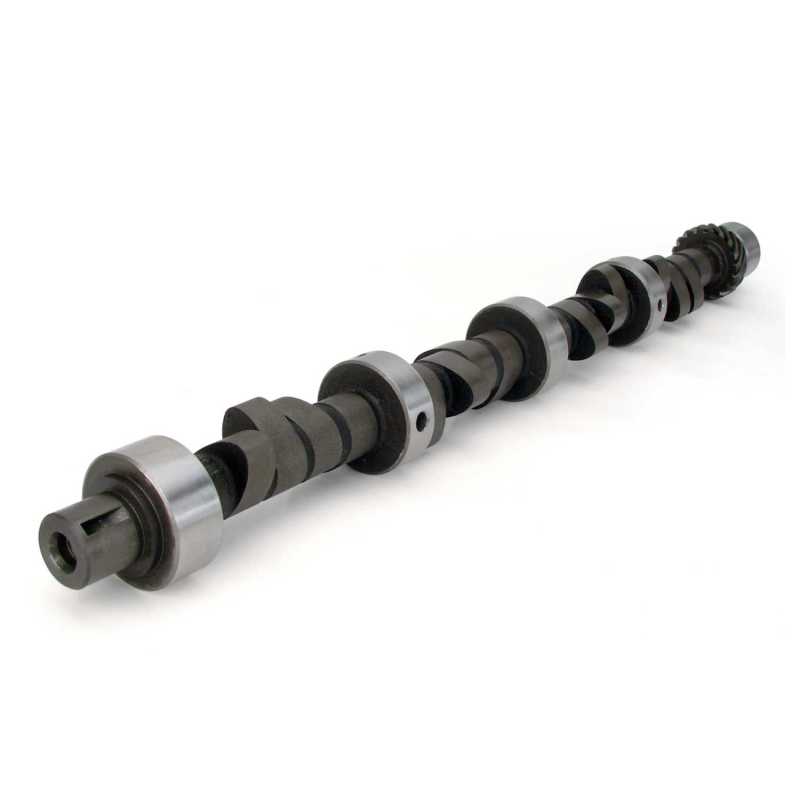

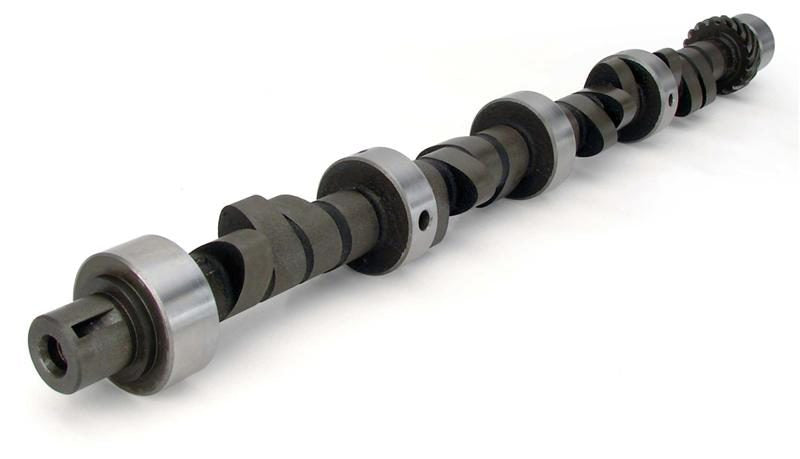

COMP Cams 20-248-4 - Camshaft CRS 294S-10
Camshaft - Magnum - Mechanical Flat Tappet - Lift 0.525 / 0.525 in - Duration 294 / 294 - 110 LSA - 3000 / 6500 RPM - Small Block Mopar - Each
Excellent for Pro Street, bracket race 9.5:1 compression, 3000-3500 stall, 4.10-4.30 gear, aftermarket intake.
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Cam and Lifter Kit Upgrade: CL20-248-4
K-Kit Upgrade: K20-248-4
Lifter Type: Solid Flat Tappet
SK-Kit Upgrade: SK20-248-4
Amazon ASIN: B000P5954M
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Camshaft Series: Magnum
Usage: Street/Strip
Cam Type: Solid Flat Tappet
Grind Number: 294S
Basic Operating RPM Range: 3,000-6500
Intake Duration at .050 Inch Lift: 248
Exhaust Duration at .050 inch Lift: 248
Advertised Intake Duration: 294
Advertised Exhaust Duration: 294
Lobe Separation: 110
Intake Valve Lift: 0.525
Exhaust Valve Lift: 0.525
