COMP Cams 20-230-4 - Camshaft CRS XS274S10
COMP Cams | SKU:
COMP-20-230-4
Sale price
$29795
Regular price
$32774
Unit price
/
Unavailable
$29.79 off
Couldn't load pickup availability
PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.
Description
Description

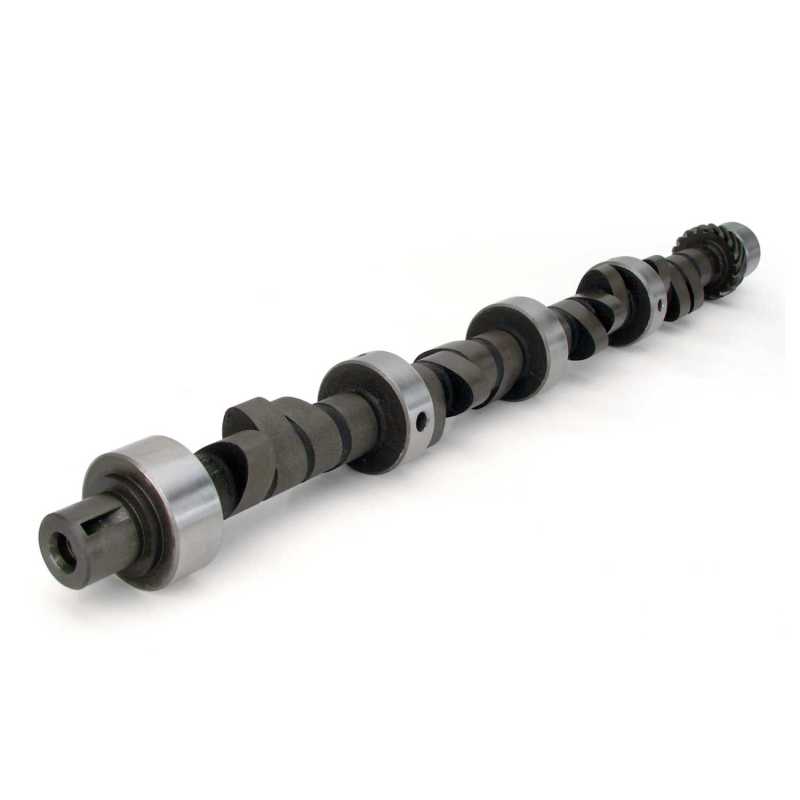

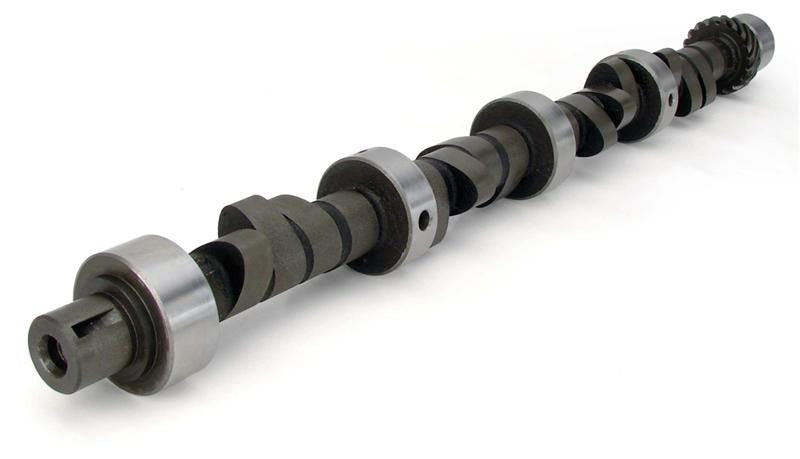

COMP Cams 20-230-4 - Camshaft CRS XS274S10
Camshaft - Xtreme Energy - Mechanical Flat Tappet - Lift 0.502 / 0.511 in - Duration 274 / 280 - 110 LSA - 2200 / 6200 RPM - Small Block Mopar - Each
Great for street machines and mild bracket racing, 9.5:1 compression with 2800 stall, lopey idle.
Camshaft Series: Xtreme Energy
Usage: Street/Performance
Cam Type: Solid Flat Tappet
Grind Number: XS274S
Basic Operating RPM Range: 2,200-6,200
Intake Duration at .050 Inch Lift: 236
Exhaust Duration at .050 inch Lift: 242
Advertised Intake Duration: 274
Advertised Exhaust Duration: 280
Lobe Separation: 110
Intake Valve Lift: 0.502
Exhaust Valve Lift: 0.511
Lifters Included: No
Valve Springs Required: Yes
Assembly Lubricant Included: Yes
Camshaft Gear Attachment: 1-Bolt
Camshaft Material: Cast Iron
Engine Family: Chrysler 273-360 c.i. 8 Cylinder (1964-2002)
Cam and Lifter Kit Upgrade: CL20-230-4
K-Kit Upgrade: K20-230-4
Lifter Type: Solid Flat Tappet
Amazon ASIN: B000P5952O
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: XS274S
