COMP Cams 191060 - Camshaft Set F50Cy Nsr-Na1H-1

COMP Cams  |  SKU: COMP-191060
$2,13495 $2,34844

DISCLAIMER: This Item Is Special Ordered, which may have cancellation or return restrictions. Please see our terms and conditions for more information.


AVAILABILITY: This Item Is Out Of Stock.

PLEASE NOTE: Pictures may be representative of style, rather than the actual product. Read the description for more details.

Description

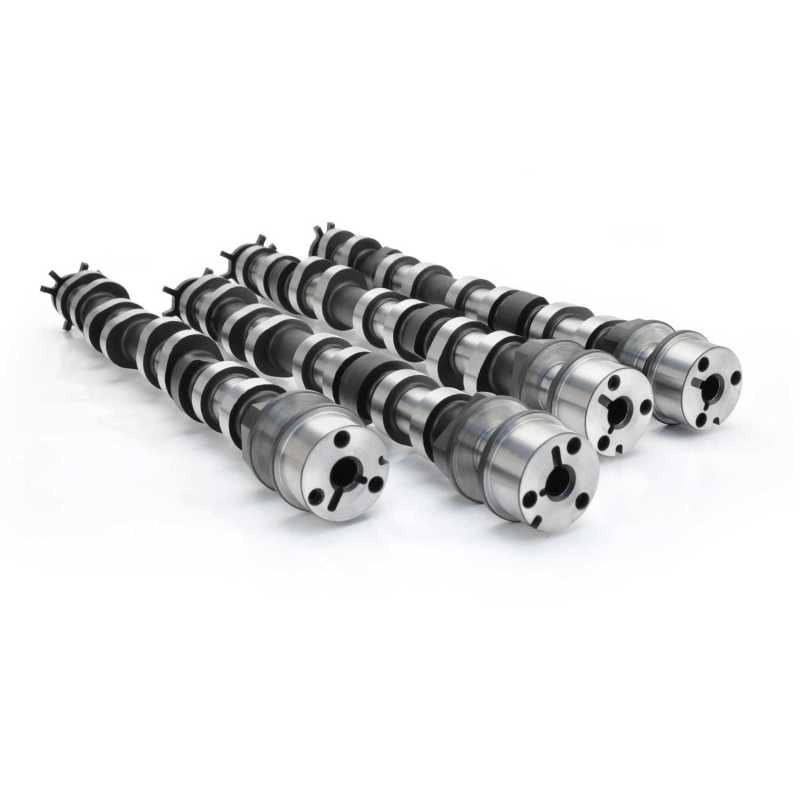

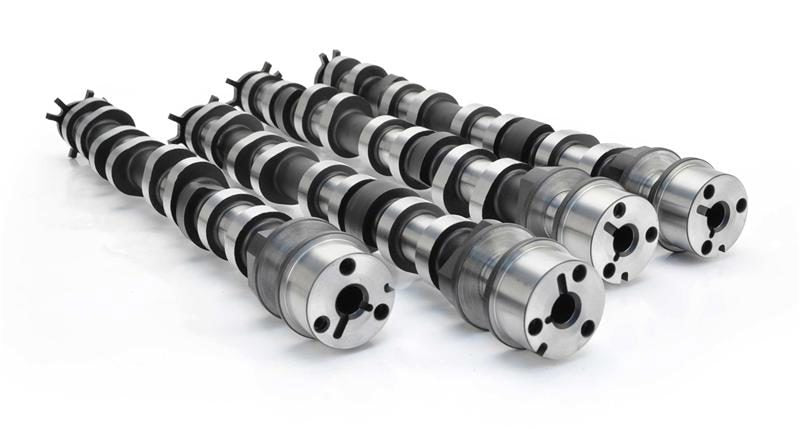

COMP Cams 191060 - Camshaft Set F50Cy Nsr-Na1H-1

XFI NSR 220/223 Hydraulic Roller Cams for Ford 5.0L Coyote

Great upgrade over stock cams. Good power gains above 4500 RPM. Requires phaser limiter kit and custom ECU programming.

XFI NSR (No Springs Required) Hydraulic Roller Swinging/Finger Follower Camshaft. DOHC and Great upgrade over stock cams. Good power gains above 4500 RPM. Requires Cam phaser limiter kit Part #5493 or optional Cam phaser lock kit #5492 for Race Applications.

Advertised Intake Duration: 267
Advertised Exhaust Duration: 267
Lobe Separation: 126
Intake Valve Lift: 0.492
Exhaust Valve Lift: 0.453
Lifters Included: No
Valve Springs Required: No
Assembly Lubricant Included: No
Camshaft Gear Attachment: 3-Bolt
Camshaft Material: Billet Steel
Lifter Type: Hydraulic Roller Swinging Follower
Engine Family: Ford Coyote 5.0L DOHC Modular 4 Valve 8 Cylinder (2011+)
Amazon ASIN: B004RUZK7C
C.A.R.B. Exempt for Racing and Off-Road Only Vehicles?: Yes, but must be a race/competition only vehicle.
C.A.R.B. Exempt for Federally Certified Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for California Certified Vehicles Manufactured Before 1965?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for Foreign Vehicles Manufactured Before 1967?: Yes, but must meet tailpipe emission standards for year of vehicle.
C.A.R.B. Exempt for On-Road Vehicles?: No
C.A.R.B. Exemption Reason: N/A
C.A.R.B. E.O. Number: N/A
Grind Number: F5.0D NSR-NA1H-126
Camshaft Series: XFI NSR (No Springs Required)
Usage: Street/Performance
Cam Type: Hydraulic Roller Swinging Follower
Grind Number: F5.0D NSR-NA1H-126
Basic Operating RPM Range: 1,500-6,800
Intake Duration at .050 Inch Lift: 220
Exhaust Duration at .050 inch Lift: 223
